55-8450 - Toro Hour Meter Kit for Groundsmaster 117 CUTTING UNIT MODEL NO. 30544 Parts Diagram

Hour Meter Kit for Groundsmaster 117

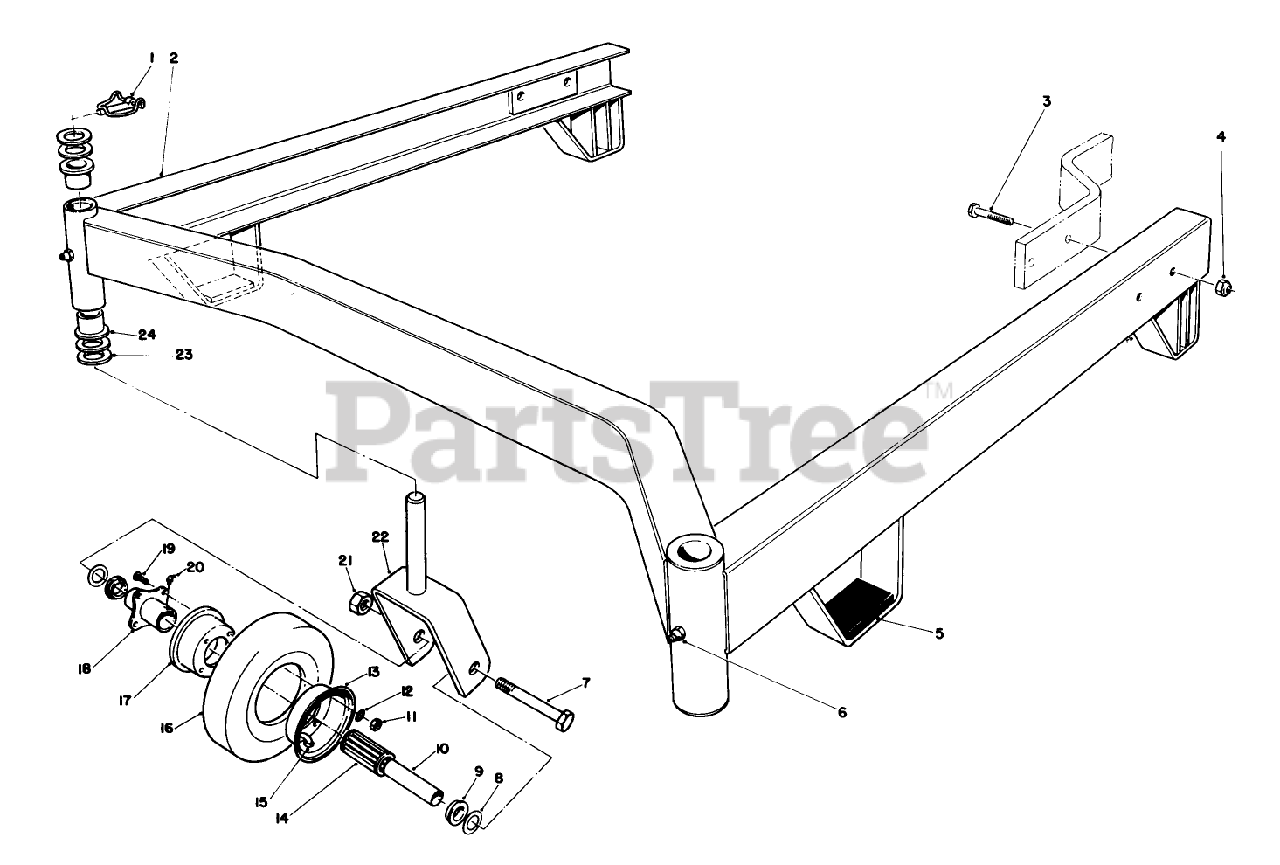

CUTTING UNIT MODEL NO. 30544 Parts Diagram

  • Title

1

Toro 3290-384

PIN-LYNCH

$22.99

$

Usually ships in 3-6 days

0

2

Toro 54-0800

44" Suspension Assembly (Incl. Ref. #23 & 24)
(Superseded to 94-5830)

$

$

Not available

3

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

5

Toro 54-2700

Pad-Rubber
(Superseded to 74-0340)

$4.99

$

Usually ships in 3-6 days

0

6

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

7

Toro 328-9

SCREW-HH

$21.99

$

In Stock, only 1 left!

0

8

Toro 54-4250

HITCH PLT WA R

$

$

Not available

9

Toro 54-8840

RETAINER

$6.49

$

In Stock, Qty 6

0

10

Toro 54-8860

Bushing-Spanner
(Superseded to 27-1200)

$15.99

$

In Stock, only 3 left!

0

11

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 54-8900

WHEEL HALF-MALE

$37.99

$

Usually ships in 3-6 days

0

14

Toro 54-8850

BEARING-ROLLER

$29.99

$

In Stock, only 2 left!

0

15

Toro 54-5880

Bolt-Stud

$

$

Not available

16

Toro 54-8870

TIRE-8 Inch (4-PLY)

$78.99

$

Usually ships in 3-6 days

0

17

Toro 54-8910

WHEEL HALF-FEMALE

$37.99

$

Usually ships in 3-6 days

0

18

Toro 54-8830

HUB-CENTERED

$

$

Not available

19

Toro 54-8890

WHEEL BOLT

$0.99

$

Usually ships in 3-6 days

0

20

Toro 302-10

FITTING-GREASE

$3.99

$

Usually ships in 3-6 days

0

21

Toro 32153-6

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

22

Toro 40-0370

FORK-Castor
(Superseded to 40-0370-01)

$117.99

$

In Stock, only 1 left!

0

23

Toro 3-6781

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

24

Toro 28-9290

Bushing
(Superseded to 94-1291)

$11.99

$

In Stock, Qty 14

0

Toro 54-8820

Castor Wheel Complete (Incl. Ref. #8-19)
(Superseded to 12-1519)

Note: Not illustrated

$

$

Not available
