55-8450 - Toro Hour Meter Kit for Groundsmaster 117 44" SNOW THROWER MODEL NO. 30761 (OPTIONAL) Parts Diagram

Hour Meter Kit for Groundsmaster 117

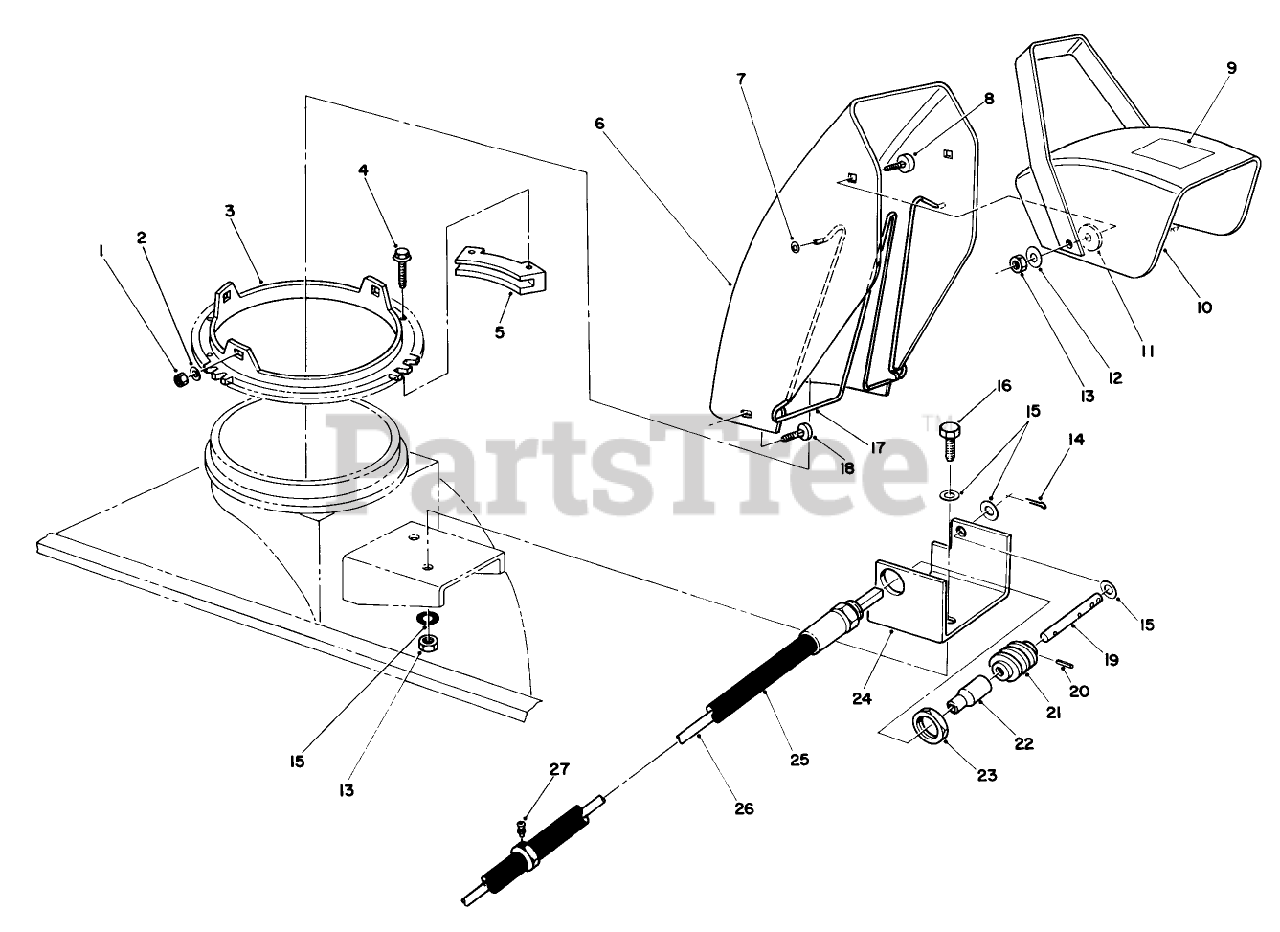

44" SNOW THROWER MODEL NO. 30761 (OPTIONAL) Parts Diagram

  • Title
1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 25-5290

Screw
(Superseded to 25-5290-01)

$70.99

$

Usually ships in 3-6 days

0

4

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

5

Toro 25-5450

RETAINER-CHUTE

$37.99

$

In Stock, only 2 left!

0

6

Toro 56-2600

Chute-Upper
(Superseded to 92-6335-01)

$222.99

$

Usually ships in 3-6 days

0

7

Toro 3290-326

NUT-PUSH

$5.49

$

Usually ships in 3-6 days

0

8

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

9

Toro 55-9650

Decal-Discharge
(Superseded to 94-2558)

$42.99

$

In Stock, only 1 left!

0

10

Toro 11-7120

Deflector
(Superseded to 11-7120-01)

$120.99

$

Usually ships in 3-6 days

0

11

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 8

0

12

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

13

Toro 3296-34

Locknut
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

14

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

16

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

17

Toro 54-9770

CHUTE WIRE

$

$

Not available

18

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

19

Toro 61-4950

SHAFT-GEAR, WORM

$85.99

$

Usually ships in 3-6 days

0

20

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

21

Toro 8-8600

GEAR-WORM, CHUTE

$137.99

$

Usually ships in 3-6 days

0

22

Toro 61-4940

COUPLER

$86.99

$

Usually ships in 3-6 days

0

23

Toro 353-955

LOCKNUT

$23.99

$

Usually ships in 3-6 days

0

24

Toro 61-4930

WORM GEAR BRKT R

$

$

Not available

25

Toro 61-4870

HOSE ASM

$867.99

$

Usually ships in 3-6 days

0

26

Toro 61-8520

FLEX SHAFT

$

$

Not available

27

Toro 302-52

FITTING-GREASE

$6.49

$

In Stock, Qty 20+

0
