55 (0340028U) - International Harvester Riding Mower (1971 - 1983) Steering Mechanism - S/N 70001 & Above Parts Diagram

Riding Mower

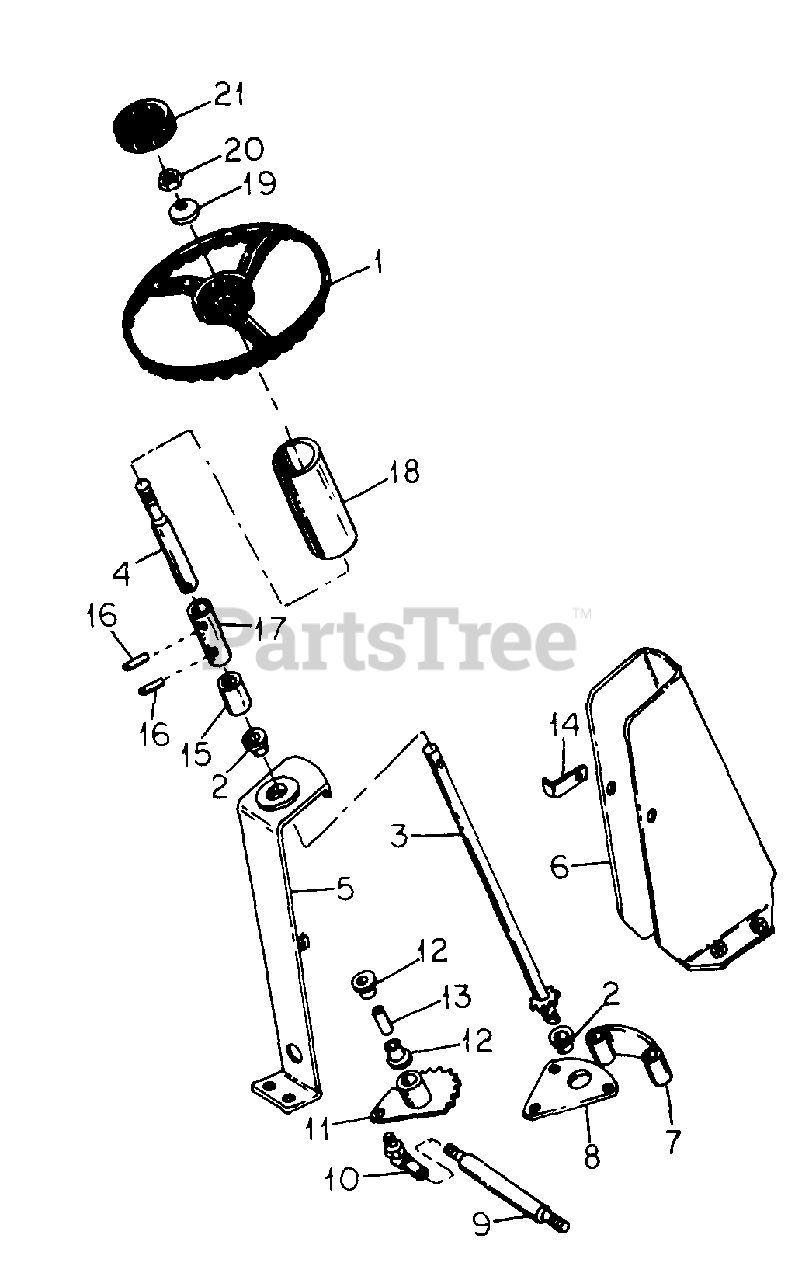

Steering Mechanism - S/N 70001 & Above Parts Diagram

  • Title

1

Cub Cadet IH-106758-C1

WHEEL, STEERING
(Superseded to 731-0219)

$38.99

$

In Stock, only 1 left!

0

2

Cub Cadet IH-165062-R1

BEARING, STEERING SHAFT

$

$

Currently unavailable

3

Cub Cadet IH-106764-C2

SHAFT ASSY, LOWER STEERING

$

$

Not available

Cub Cadet IH-23670-R1

PIN, 1/4 X 1-3/8 HVY CLD-SPR
(Superseded to 915-3000)

$

$

Not available

Cub Cadet IH-16066-R1

WASHER, .781 X 1.500 X .054 PLN
(Superseded to 936-0316)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-108635

PIN, 1/8 X 1-1/8 PLN COT
(Superseded to 914-0470)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet IH-106760-C1

SHAFT, UPPER STEERING

$

$

Currently unavailable

5

Cub Cadet IH-487980-R1

SUPPORT ASSY, STEERING

$

$

Currently unavailable

Cub Cadet IH-179839

BOLT, 3/8 X 1 PLN TYPE 5

$

$

Not available

6

Cub Cadet IH-549094-R91

SHROUD ASSY, STEERING SUPPORT

$

$

Not available

Cub Cadet IH-378341-R1

WASHER, SPRING

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16 TYPE 5
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-180073

BOLT, 5/16 X 1/2 TYPE 5
(Superseded to 710-3039)

$

$

Not available

Cub Cadet IH-180016

BOLT, 1/4 X 1/2 TYPE 5

$

$

Currently unavailable

Cub Cadet IH-120392

WASHER, .281 X .625 X .051
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet IH-487987-R1

COVER, FRONT STEERING GEAR

$

$

Currently unavailable

Cub Cadet IH-180089

BOLT, 5/16 X 2-1/4 TYPE 5
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

Cub Cadet IH-9413952

NUT, 5/16 PHC P/T LOCK TYPE 5
(Superseded to 712-3046)

$6.99

$

Usually ships in 3-6 days

0

8

Cub Cadet IH-487973-R1

COVER ASSY. STEERING GEAR

$

$

Not available

9

Cub Cadet IH-487985-R1

STUD, DRAG LINK ROD

$

$

Not available

Cub Cadet IH-114494

NUT, 3/8-NF PLN JAM TYPE 5
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

10

Cub Cadet IH-392594-R1

JOINT, 3/8 C-Z TYPE G BALL
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

Cub Cadet IH-9413243

NUT, 3/8-NF CAD P/T LOCK TYPE 5

$

$

Currently unavailable

11

Cub Cadet IH-487976-R4

GEAR ASSY, STEERING DRAG LINK
(Superseded to 703-0462)

$

$

Not available

Cub Cadet IH-541293-R1

BOLT, STEERING GEAR MOUNTING

$

$

Not available

12

Cub Cadet IH-307920-R1

BEARING, STEERING GEAR
(Superseded to 731-3015)

$

$

Not available

13

Cub Cadet IH-487979-R1

BUSHING, STEERING GEAR DRAG LINK
(Superseded to 911-3056)

$

$

Not available

14

Cub Cadet IH-549091-R1

STOP, PEDAL

$

$

Currently unavailable

Cub Cadet IH-104249

RIVET, 1/4 X 1/2 PLN F/HD SOL

$

$

Currently unavailable

15

Cub Cadet IH-106765-C1

SPACER, STEERING SHAFT

$

$

Currently unavailable

16

Cub Cadet IH-19885-R1

PIN, 1/4 X 1-3/8 MED PLN CLD SPR
(Superseded to 915-3000)

$

$

Not available

17

Cub Cadet IH-106763-C1

BUSHING, SHAFT SLEEVE

$

$

Currently unavailable

18

Cub Cadet IH-106761-C1

SPACER, STEERING TUBE

$

$

Currently unavailable

19

Cub Cadet IH-106766-C1

WASHER, BELLEVILLE
(Superseded to 736-0242)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet IH-9412083

NUT, 5/16 CAD P/T LOCK TYPE 5
(Superseded to 912-3009)

$

$

Not available

21

Cub Cadet IH-106762-C1

CAP, STEERING WHEEL
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0
