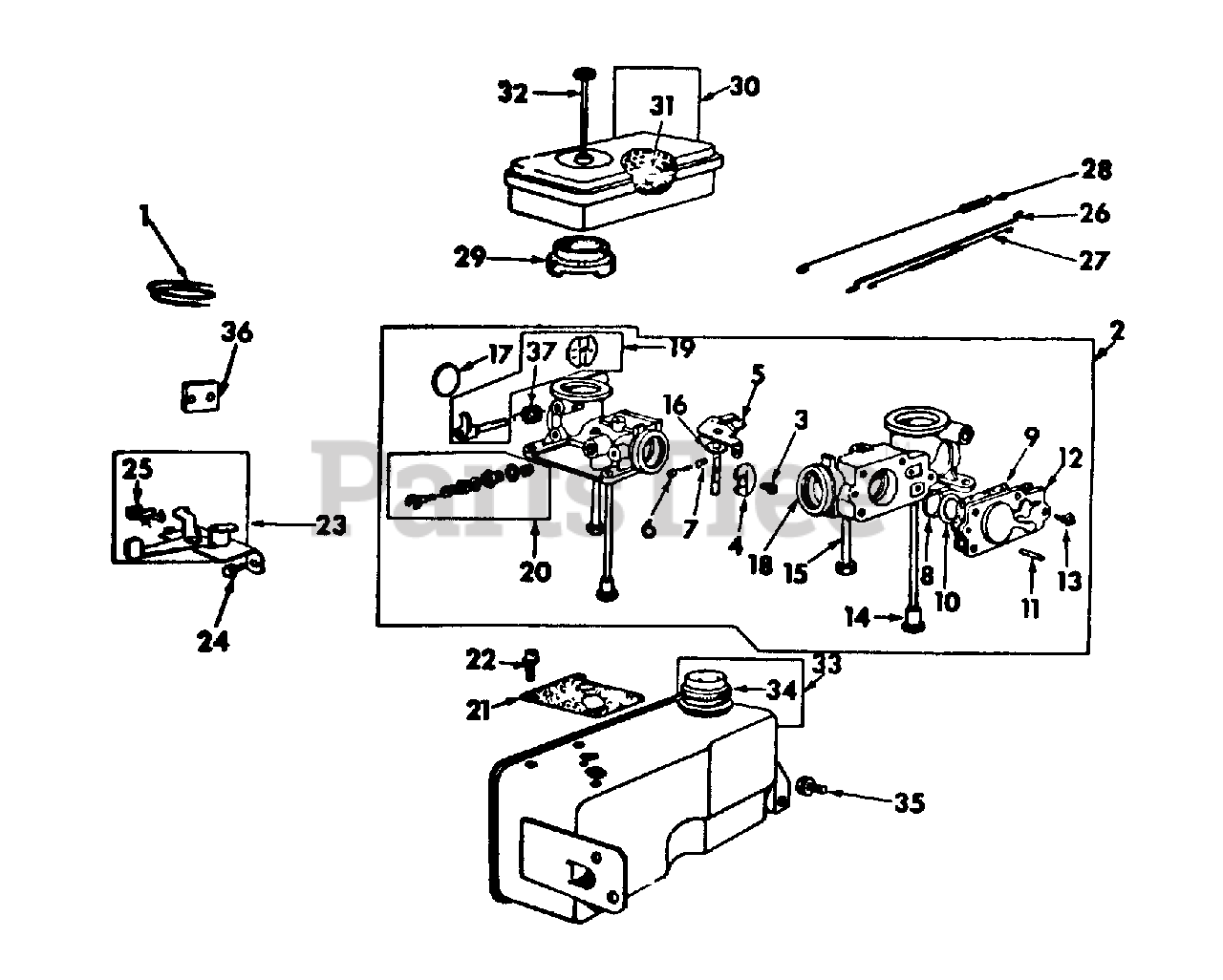

55 (0340028U) - International Harvester Riding Mower (1971 - 1983) Fuel System Parts Diagram

Riding Mower

Fuel System Parts Diagram

  • Title

1

Cub Cadet IH-539707-R1

WIRE, GROUND

$

$

Currently unavailable

Cub Cadet IH-131970

SCREW, 8-32 X 1/2 CR-REC-FIL-HD MACH

$

$

Not available

Cub Cadet IH-138166

WASHER, NO 8 INT-TOOTH LOCK

$

$

Currently unavailable

Cub Cadet IH-120622

NUT, 8-32 HEX
(Superseded to 712-0142)

$4.49

$

In Stock, Qty 10

0

2

Cub Cadet IH-539708-R91

CARBURETOR ASSY

$

$

Currently unavailable

3

Cub Cadet IH-549474-R1

SCREW, THROTTLE VALVE

$

$

Currently unavailable

4

Cub Cadet IH-539709-R1

VALVE, THROTTLE

$

$

Currently unavailable

5

SHAFT & LEVER ASSY, THROTTLE

Note: Not Available Seperately

$

$

Not available

6

Cub Cadet IH-549478-R1

SCREW, THROTTLE ADJ

$

$

Currently unavailable

7

Cub Cadet IH-549477-R1

SPRING, THROTTLE ADJ

$

$

Currently unavailable

8

SPRING, FUEL PUMP

Note: Not Available Seperately

$

$

Not available

9

DIAPHRAGM

Note: Not Available Seperately

$

$

Not available

10

CAP, SPRING

Note: Not Available Seperately

$

$

Not available

11

PIN, COVER

Note: Not Available Seperately

$

$

Not available

12

Cub Cadet IH-549485-R1

COVER, DIAPHRAGM

$

$

Currently unavailable

13

SCREW, COVER

Note: Not Available Seperately

$

$

Not available

14

SCREEN, FUEL PIPE HOUSING

Note: Not Available Seperately

$

$

Not available

15

PIPE, FUEL

Note: Not Available Seperately

$

$

Not available

16

Cub Cadet IH-549490-R1

WASHER, THROTTLE FELT

$

$

Currently unavailable

17

Cub Cadet IH-539713-R1

PLUG, 7/8 EXPANSION

$

$

Currently unavailable

18

SEAL, INTAKE TUBE

Note: Not Available Seperately

$

$

Not available

19

SHAFT & LEVER ASSY, CHOKE

Note: Not Available Seperately

$

$

Not available

20

Cub Cadet IH-549491-R91

KIT, NEEDLE VALVE

$

$

Not available

21

Cub Cadet IH-539694-R1

GASKET, TANK MTG

$

$

Not available

22

SCREW, CARBURETOR MOUNTING

Note: Not Available Seperately

$

$

Not available

23

PLATE, CARBURETOR CONTROL

Note: Not Available Seperately

$

$

Not available

24

SCREW, CONTROL PLATE MOUNTING

Note: Not Available Seperately

$

$

Not available

25

SWITCH, STOP

Note: Not Available Seperately

$

$

Not available

26

Cub Cadet IH-539716-R1

LINK, THROTTLE

$

$

Not available

27

Cub Cadet IH-539717-R1

SPRING, THROTTLE LINK

$

$

Not available

28

Cub Cadet IH-539718-R1

SPRING, GOVERNOR

$

$

Currently unavailable

29

Cub Cadet IH-539719-R1

GASKET, AIR CLEANER

$

$

Not available

30

Cub Cadet IH-539720-R91

CLEANER ASSY, AIR

$

$

Currently unavailable

31

Cub Cadet IH-539721-R1

ELEMENT

$

$

Not available

32

Cub Cadet IH-539722-R1

SCREW, AIR CLEANER

$

$

Currently unavailable

33

Cub Cadet IH-539692-R91

TANK ASSY W/CAP, FUEL

$

$

Not available

34

Cub Cadet IH-539693-R1

CAP, FUEL TANK

$

$

Not available

35

Cub Cadet IH-180016

SCREW, 1/4-20 X 1/2 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

36

Cub Cadet IH-539732-R1

INSULATOR, TERMINAL

$

$

Currently unavailable

37

Cub Cadet IH-539712-R1

SPRING, CHOKE RETURN

$

$

Currently unavailable
