55 (0340024U) - International Harvester Riding Mower (1971 - 1983) Grass Catcher Attachment - S/N 48500 & Above Parts Diagram

Riding Mower

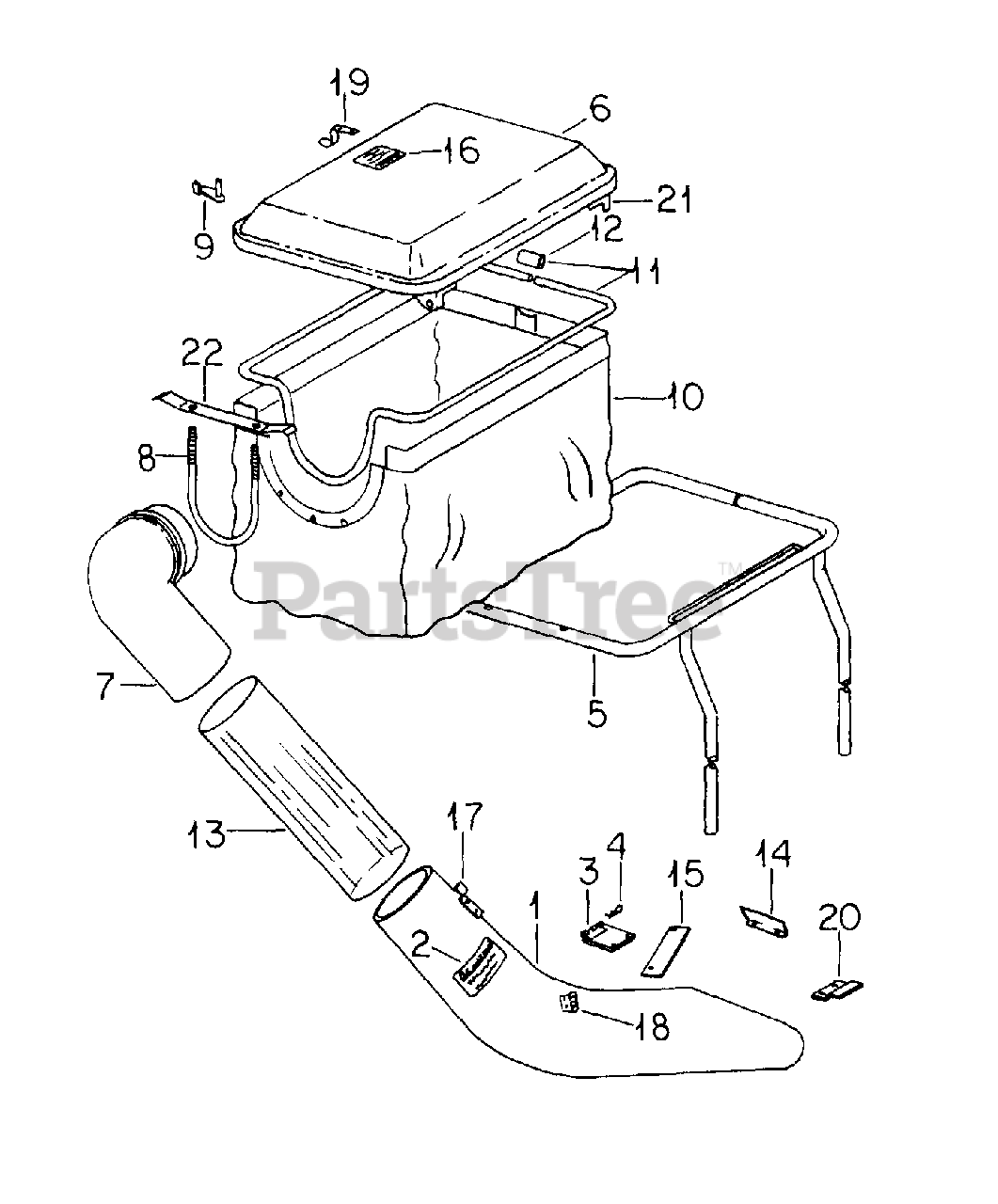

Grass Catcher Attachment - S/N 48500 & Above Parts Diagram

  • Title
1

Cub Cadet IH-106932-C2

CHUTE ASSY, DISCHARGE

Note: SERIAL NOS 48500 TO 59528

$

$

Currently unavailable

Cub Cadet IH-126428-C92

CHUTE ASSY, DISCHARGE

Note: -USED W/COVER IH-117575-C91- -SERIAL NO. 59829 AND ABOVE-

$

$

Not available

2

Cub Cadet IH-117278-C2

PRODUCT GRAPHIC, CAUTION - GRASS CATCHER

$

$

Currently unavailable

3

Cub Cadet IH-106586-C1

HINGE ASSY, CHUTE

$

$

Not available

Cub Cadet IH-20710-R1

SCREW, 1/4 X 1/2 ZNP P/HDS MACH

$

$

Not available

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

4

Cub Cadet IH-610784-R1

PIN, .094 X 2.402 AND CAD QA COT.
(Superseded to 714-3020)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet IH-106684-C2

FRAME ASSY, BAGGER

$

$

Not available

6

Cub Cadet IH-117575-C91

COVER ASSY, GRASS BAG -DOME TYPE-

$

$

Not available

PRODUCT GRAPHIC, IH

Note: ORDER PACKAGE, IH-77581-C91

$

$

Not available

Cub Cadet IH-180089

BOLT, 5/16 X 2-1/4 TYPE 5
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

Cub Cadet IH-120393

WASHER, .344 X .688 X .051
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-593527-R1

SPACER, .438 X 1/4 PIPE

$

$

Currently unavailable

Cub Cadet IH-9412083

NUT, 5/16 CAD P/T LOCK TYPE 5
(Superseded to 912-3009)

$

$

Not available

7

Cub Cadet IH-106826-C1

ELBOW, CHUTE

$

$

Not available

8

Cub Cadet IH-106455-C1

BRACKET, ELBOW

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120393

WASHER, .344 X .688 X .051
(Superseded to 936-0275)

$

$

Not available

9

$

$

Not available

Cub Cadet IH-18607-R1

PIN, 1/8 X 3/4 HV SLT SPRING

$

$

Not available

Cub Cadet IH-120394

WASHER, .375 X .875 X .051 ZND
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-83723-R1

WASHER, CURVED SPRING

$

$

Not available

10

$

$

Currently unavailable

11

$

$

Currently unavailable

12

Cub Cadet IH-106971-C1

SLEEVE, BAG FRAME

$

$

Not available

13

Cub Cadet IH-106941-C2

SHEET, CONNECTING TUBE

$

$

Not available

Cub Cadet IH-436693

SCREW, 8-32 X .318 ZND STL-PAN-ND MACH

$

$

Currently unavailable

Cub Cadet IH-22651-R1

WASHER, .188 X .438 X .049 CAP
(Superseded to 736-3067)

$3.49

$

Usually ships in 3-6 days

0

Cub Cadet IH-453996

NUT, 8-32 CAP HEX MACH SCREW
(Superseded to 712-0142)

$4.49

$

In Stock, Qty 10

0

14

Cub Cadet IH-106895-C1

WING, 28 IN. MOWER BLADE

$

$

Not available

Cub Cadet IH-25228-R1

SCREW, 5/16-18 X 3/4 PHC HEX-HD CAP

$

$

Not available

Cub Cadet IH-9413977

NUT, 5/16-18 PHC NYLON INSERT
(Superseded to 712-3046)

$6.99

$

Usually ships in 3-6 days

0

15

Cub Cadet IH-106462-C1

FLANGE, LOCATOR

$

$

Not available

Cub Cadet IH-180016

SCREW, 1/4-20 X 1/2 END HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-20600-R1

WASHER, .281 X .750 X .105

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 3/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

16

Cub Cadet IH-117277-C2

PRODUCT GRAPHIC, CAUTION - MOWER INSTRUCTIONS

$

$

Currently unavailable

17

Cub Cadet IH-106459-C1

RETAINER, TUBE

$

$

Not available

18

Cub Cadet IH-106585-C1

HINGE, LEAF CHUTE

$

$

Not available

19

$

$

Not available

20

Cub Cadet IH-117499-C1

SUPPORT, FRONT LOCATOR

$

$

Currently unavailable

Cub Cadet IH-20710-R1

SCREW, 1/4-20 X 1/2 SL-SN SLT PAN-HD MACH

$

$

Not available

Cub Cadet IH-20600-R1

WASHER, .281 X .750 X .105

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

21

Cub Cadet IH-117565-C1

HINGE, COVER

$

$

Not available

Cub Cadet IH-117547-C1

WASHER
(Superseded to 736-3065)

$

$

Not available

22

Cub Cadet IH-117563-C1

SPRING, BAG RETAINER

$

$

Not available
