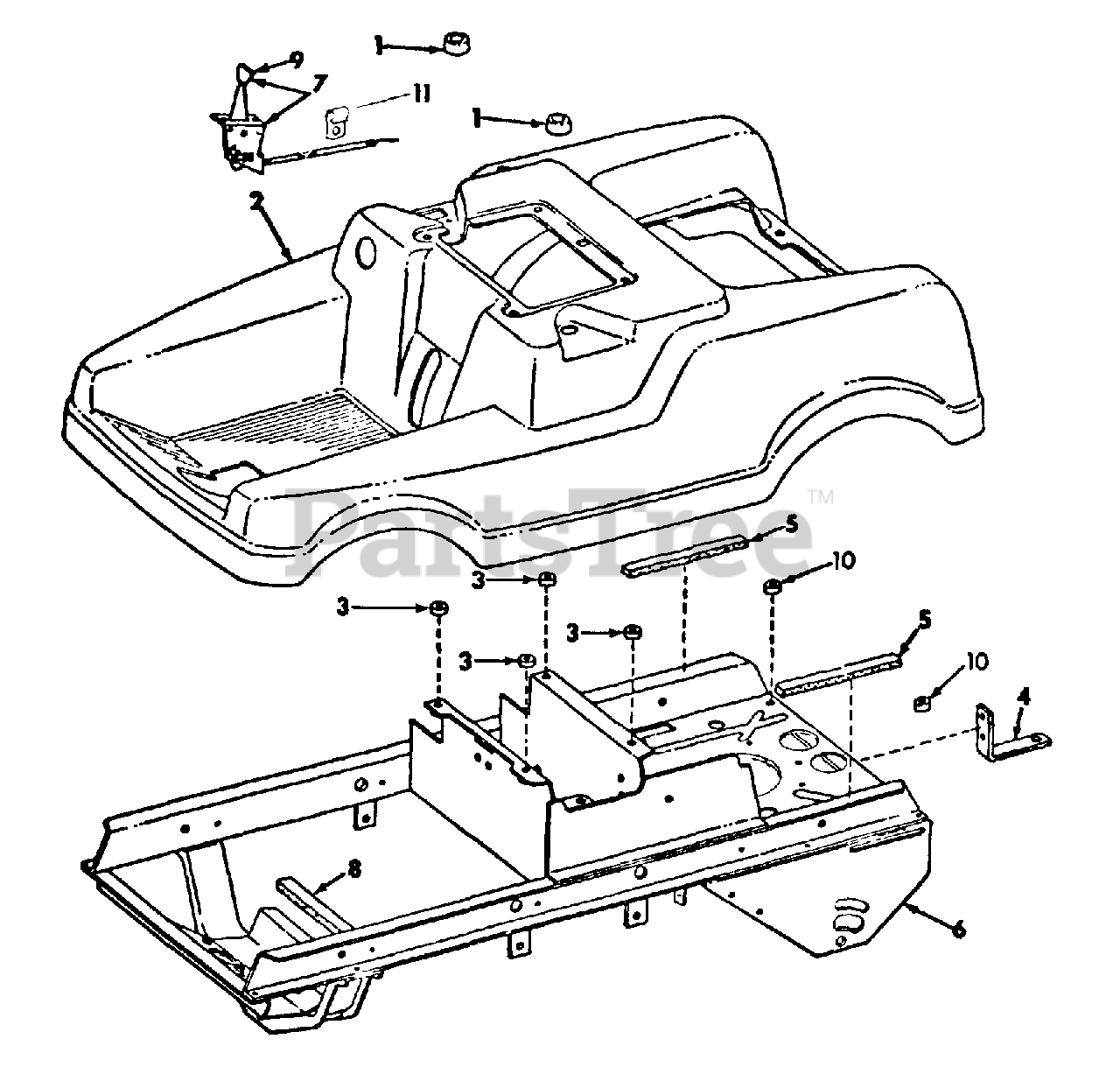

55 (0340024U) - International Harvester Riding Mower (1971 - 1983) Body, Frame & Drawbar Parts Diagram

Riding Mower

Body, Frame & Drawbar Parts Diagram

  • Title
1

Cub Cadet IH-487823-R1

BUMPER, SEAT SUPPORT REAR

$

$

Not available

Cub Cadet IH-180082

BOLT, 5/16-18 X 1-3/8 ZND HEX-HD LOCK

$

$

Currently unavailable

Cub Cadet IH-180080

BOLT 5/16-18 X 1-1/8 ZND HEX-HD LOCK

$

$

Not available

Cub Cadet IH-120393

WASHER, 11/32 X 11/16 X .065 C-Z
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-134238-R1

WASHER, 11/32 x 1.0 x .060 C-Z

$

$

Currently unavailable

2

Cub Cadet IH-549089-R3

BODY W/PLUG, IH-432485 AND PLUG, IH-432580, RIDING MOWER

$

$

Currently unavailable

Cub Cadet IH-432485

PLUG, 5/8 C-Z BUTTON -IGNITION HOLE-

$

$

Currently unavailable

Cub Cadet IH-432580

PLUG, 2-3/32 C-Z BUTTON -IGNITION HOLE-

$

$

Currently unavailable

3

Cub Cadet IH-487822-R1

SPACER, BODY MOUNTING

$

$

Not available

4

Cub Cadet IH-487953-R1

ANGLE, DRAWBAR

$

$

Currently unavailable

Cub Cadet IH-180078

SCREW, 5/16-18 X 7/8 ZND HEX-HD CAP
(Superseded to 710-3038)

$4.99

$

In Stock, only 3 left!

0

Cub Cadet IH-411597-R1

NUT, 5/16-18 HEX LOCK
(Superseded to 912-0429)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120393

WASHER, 11/32 X 11/16 X .065 C-Z
(Superseded to 936-0275)

$

$

Not available

5

Cub Cadet IH-487824-R1

SEAL, PRESSURIZED

$

$

Not available

6

Cub Cadet IH-139999-C91

FRAME W/PRODUCT GRAPHIC, IH-120391-C1 ASSY, MAIN

$

$

Currently unavailable

$

$

Currently unavailable

7

Cub Cadet IH-549694-R1

CONTROL, THROTTLE

$

$

Not available

Cub Cadet IH-436665

SCREW, 6-32 X 1/2 C-Z SLT-PAN-HD MACH

$

$

Currently unavailable

Cub Cadet IH-446130

WASHER, 11/64 X 13/32 X .036 C-Z

$

$

Currently unavailable

Cub Cadet IH-164470

SCREW, 10-32 X 3/8 CR-REC-PAN-HD

$

$

Currently unavailable

8

Cub Cadet IH-491719-R1

SEAL, PRESS FRT REST

$

$

Not available

9

Cub Cadet IH-530118-R1

KNOB, THROTTLE CONCORDE
(Superseded to 731-0108)

$9.49

$

In Stock, only 2 left!

0

10

Cub Cadet IH-549611-R1

SPACER, BODY MTG REAR

$

$

Currently unavailable

11

Cub Cadet IH-362127-R1

CLIP, HOOK
(Superseded to 726-0272)

Note: SERIAL NO 48500 & ABOVE

$7.49

$

Usually ships in 3-6 days

0

Cub Cadet IH-178532

WASHER, 5/16 INT-EXT TOOTH LOCK

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-395228-R1

CLIP, CONTROL SWITCH CABLE
(Superseded to 726-0175)

Note: SERIAL NO 48499 AND BELOW

$

$

Not available

Cub Cadet IH-120391

WASHER, .219 X .500 X .036
(Superseded to 736-0931)

$4.99

$

In Stock, only 1 left!

0

Cub Cadet IH-164470

SCREW, NO 10 NF X 3/8 P/HDCR TAP

$

$

Currently unavailable
