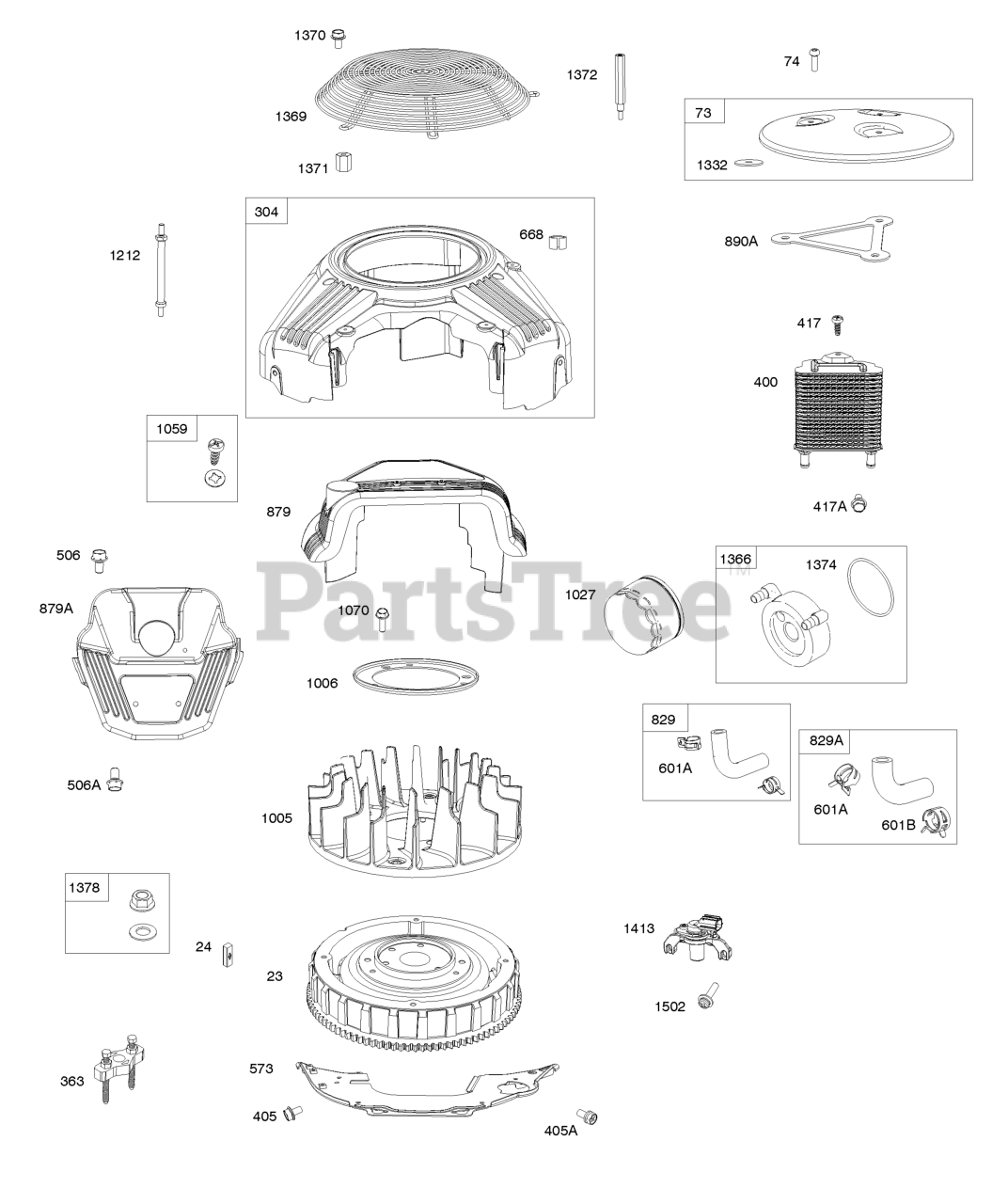

54E677-0001-J1 - Briggs & Stratton Vertical Engine Blower Housing, Flywheel, Oil Cooler System Parts Diagram

Vertical Engine

Blower Housing, Flywheel, Oil Cooler System Parts Diagram

  • Title

23

Briggs & Stratton 846836

Flywheel

$425.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 796335

KEY, Flywheel

Note: (Steel)

$5.49

$

In Stock, Qty 20+

0

73

Briggs & Stratton 841840

Screen-Rotating

$45.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 809947

Screw

Note: (Rotating Screen) (M6x20mm)

$4.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 846481

HOUSING, Blower

$

$

Not available

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

400

Briggs & Stratton 846249

COOLER, Oil

$83.99

$

Usually ships in 2-12 days

0

405

Briggs & Stratton 841233

SCREW

Note: (Back Plate) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0

405A

Briggs & Stratton 841735

SCREW

Note: (Back Plate) (M6x14mm)

$3.99

$

Usually ships in 2-12 days

0

417

Briggs & Stratton 846250

SCREW

Note: (Oil Cooler) (Top) (M6x16mm)

$4.99

$

Usually ships in 2-12 days

0

417A

Briggs & Stratton 841233

SCREW

Note: (Oil Cooler) (Bottom) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0

506

Briggs & Stratton 692056

Screw

Note: (Carburetor/EFI Cover) (M8x14mm)

$5.99

$

In Stock, Qty 20+

0

506A

Briggs & Stratton 845964

SCREW

Note: (Carburetor/EFI Cover) (M8x10mm)

$4.49

$

Usually ships in 2-12 days

0

573

Briggs & Stratton 846840

PLATE, Back

$139.99

$

Usually ships in 2-12 days

0

601A

Briggs & Stratton 841597

CLAMP, Hose

Note: (Oil Cooler Hose)

$4.49

$

In Stock, only 3 left!

0

601B

Briggs & Stratton 845209

CLAMP, Hose

Note: (Oil Cooler Hose)

$4.49

$

Usually ships in 2-12 days

0

668

Briggs & Stratton 841974

SPACER

Note: (Blower Housing)

$5.99

$

In Stock, only 3 left!

0

829

Briggs & Stratton 846248

HOSE, Oil Cooler
(Superseded to 846155)

$52.99

$

In Stock, only 2 left!

0

829A

Briggs & Stratton 846247

HOSE, Oil Cooler
(Superseded to 846155)

$52.99

$

In Stock, only 2 left!

0

879

Briggs & Stratton 846883

Cover-Carburetor/EFI

$159.99

$

Usually ships in 2-12 days

0

879A

Briggs & Stratton 846833

Cover-Carburetor/EFI
(Superseded to 847468)

Note: (Front)

$96.99

$

Usually ships in 2-12 days

0

890A

Briggs & Stratton 809987

Bracket-Support

Note: (Rotating Screen)

$14.99

$

In Stock, only 2 left!

0

1005

Briggs & Stratton 846996

Fan-Flywheel

$54.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 847198

Retainer-Fan

$9.49

$

In Stock, only 2 left!

0

1027

Briggs & Stratton 842921

Filter-Oil

$14.99

$

In Stock, Qty 20+

0

1059

Briggs & Stratton 845300

KIT, Screw/Washer

Note: (Carburetor/EFI Cover)

$5.49

$

Usually ships in 2-12 days

0

1070

Briggs & Stratton 807435

SCREW

Note: (Flywheel Fan)

$3.49

$

Usually ships in 2-12 days

0

1212

Briggs & Stratton 809958

STUD

Note: (Blower Housing)

$17.99

$

In Stock, only 3 left!

0

1332

Briggs & Stratton 809948

Washer

Note: (Rotating Screen)

$5.49

$

In Stock, only 1 left!

0

1366

Briggs & Stratton 841510

DIVERTER, Oil Cooler

$87.99

$

Usually ships in 2-12 days

0

1369

Briggs & Stratton 842858

Guard-Flywheel Fan

$81.99

$

In Stock, only 2 left!

0

1370

Briggs & Stratton 841233

SCREW

Note: (Flywheel Fan Guard)

$3.49

$

In Stock, Qty 20+

0

1371

Briggs & Stratton 841537

Nut

Note: (Flywheel Fan Guard)

$9.99

$

In Stock, only 3 left!

0

1372

Briggs & Stratton 809946

Stud

Note: (Rotating Screen)

$17.99

$

Usually ships in 2-12 days

0

1374

Briggs & Stratton 841506

Seal-O Ring
(Superseded to 796863)

Note: (Oil Cooler Diverter)

$5.99

$

In Stock, Qty 20+

0

1378

Briggs & Stratton 844795

Washer/Nut Set

Note: (Flywheel)

$15.99

$

Usually ships in 2-12 days

0

1413

Briggs & Stratton 846457

SENSOR, Speed
(Superseded to 84006668)

$58.99

$

In Stock, Qty 6

0

1502

Briggs & Stratton 846868

SCREW

Note: (Speed Sensor) (M4x18mm)

$4.49

$

Usually ships in 2-12 days

0
