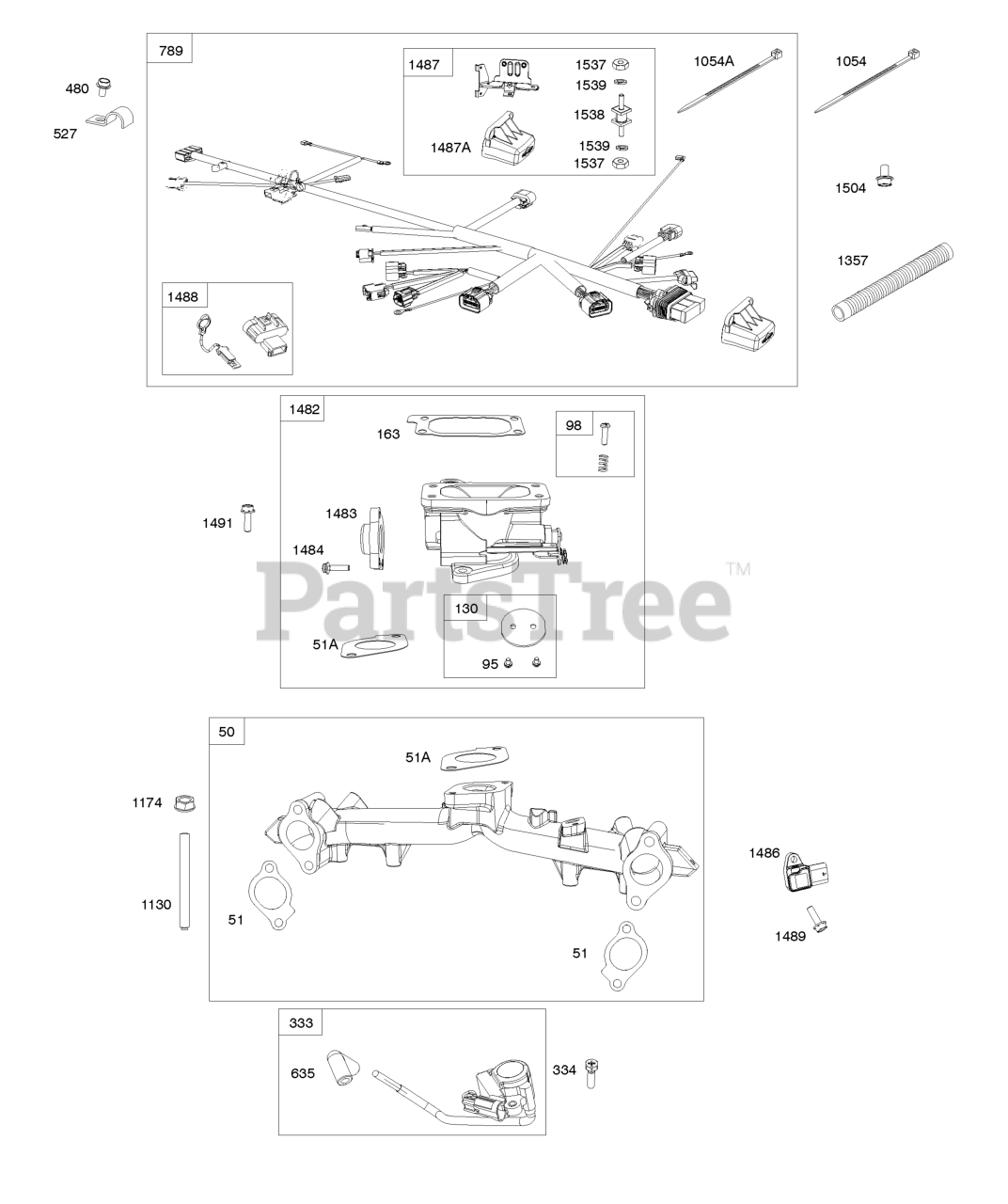

54E177-0001-J1 - Briggs & Stratton Horizontal Engine Intake Manifold, Throttle Body, Ignition Coil Parts Diagram

Horizontal Engine

Intake Manifold, Throttle Body, Ignition Coil Parts Diagram

  • Title

50

Briggs & Stratton 846503

MANIFOLD, Intake

$235.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 841592

Gasket-Intake
(Superseded to 847671)

Note: (Intake Manifold)

$4.49

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 846473

GASKET, Intake

Note: (Intake Manifold/Throttle Body)

$3.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 593897

SCREW

Note: (Throttle Valve)

$6.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 846817

Kit-Idle Speed

$13.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 846808

Valve-Throttle

$7.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 807375

GASKET, Air Cleaner

$6.49

$

In Stock, Qty 20+

0

333

Briggs & Stratton 846490

Armature-Magneto
(Superseded to 84005190)

Note: (Cylinders #1 and #2)

$73.99

$

In Stock, Qty 15

0

334

Briggs & Stratton 841552

SCREW

Note: (Magneto Armature) (M5x20mm)

$3.49

$

In Stock, only 1 left!

0

480

Briggs & Stratton 841233

SCREW

Note: (Tube Clamp) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0

527

Briggs & Stratton 690423

CLAMP, Tube

$4.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

789

Briggs & Stratton 847440

Harness-Wiring
(Superseded to 84004102)

$464.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

Tie-Cable

Note: (Clear, Nylon)

$4.49

$

Usually ships in 2-12 days

0

1054A

Briggs & Stratton 861206

Tie-Cable

Note: (Black, Nylon)

$4.49

$

In Stock, only 1 left!

0

1130

Briggs & Stratton 841590

STUD

Note: (Intake Manifold)

$10.99

$

In Stock, only 1 left!

0

1174

Briggs & Stratton 842067

NUT

Note: (Intake Manifold)

$3.99

$

Usually ships in 2-12 days

0

1357

Briggs & Stratton 846822

Sleeve-Fuel Line

Note: (Cut To Required Length)

$11.99

$

Usually ships in 2-12 days

0

1482

Briggs & Stratton 846807

Body-Throttle

$425.99

$

Usually ships in 2-12 days

0

1483

Briggs & Stratton 593895

COVER, Dust

$8.99

$

Usually ships in 2-12 days

0

1484

Briggs & Stratton 847169

SCREW

Note: (Dust Cover)

$3.99

$

Usually ships in 2-12 days

0

1486

Briggs & Stratton 593905

SENSOR, Temperature/Manifold Absolute Pressure (MAP)

$128.99

$

Usually ships in 2-12 days

0

1487

Briggs & Stratton 847337

COVER, Fuse

Note: (Kit)

$120.99

$

Usually ships in 2-12 days

0

1487A

Briggs & Stratton 847334

COVER, Fuse

$35.99

$

Usually ships in 2-12 days

0

1488

Briggs & Stratton 593899

COVER, Diagnostic

$12.99

$

Usually ships in 2-12 days

0

1489

Briggs & Stratton 807435

SCREW

Note: (TEMP/MAP Sensor) (TEMP/MAP Sensor) (Intake Manifold)

$3.49

$

Usually ships in 2-12 days

0

1491

Briggs & Stratton 807435

SCREW

Note: (Throttle Body) (M6x20mm)

$3.49

$

Usually ships in 2-12 days

0

1504

Briggs & Stratton 841233

SCREW

Note: (Fuse Cover) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0

1537

Briggs & Stratton 703460

Nut

Note: (Fuse Cover)

$3.99

$

In Stock, Qty 9

0

1538

Briggs & Stratton 847332

STUD

Note: (Fuse Cover)

$24.99

$

Usually ships in 2-12 days

0

1539

Briggs & Stratton 847333

WASHER

Note: (Fuse Cover) (Lockwasher)

$3.99

$

Usually ships in 2-12 days

0
