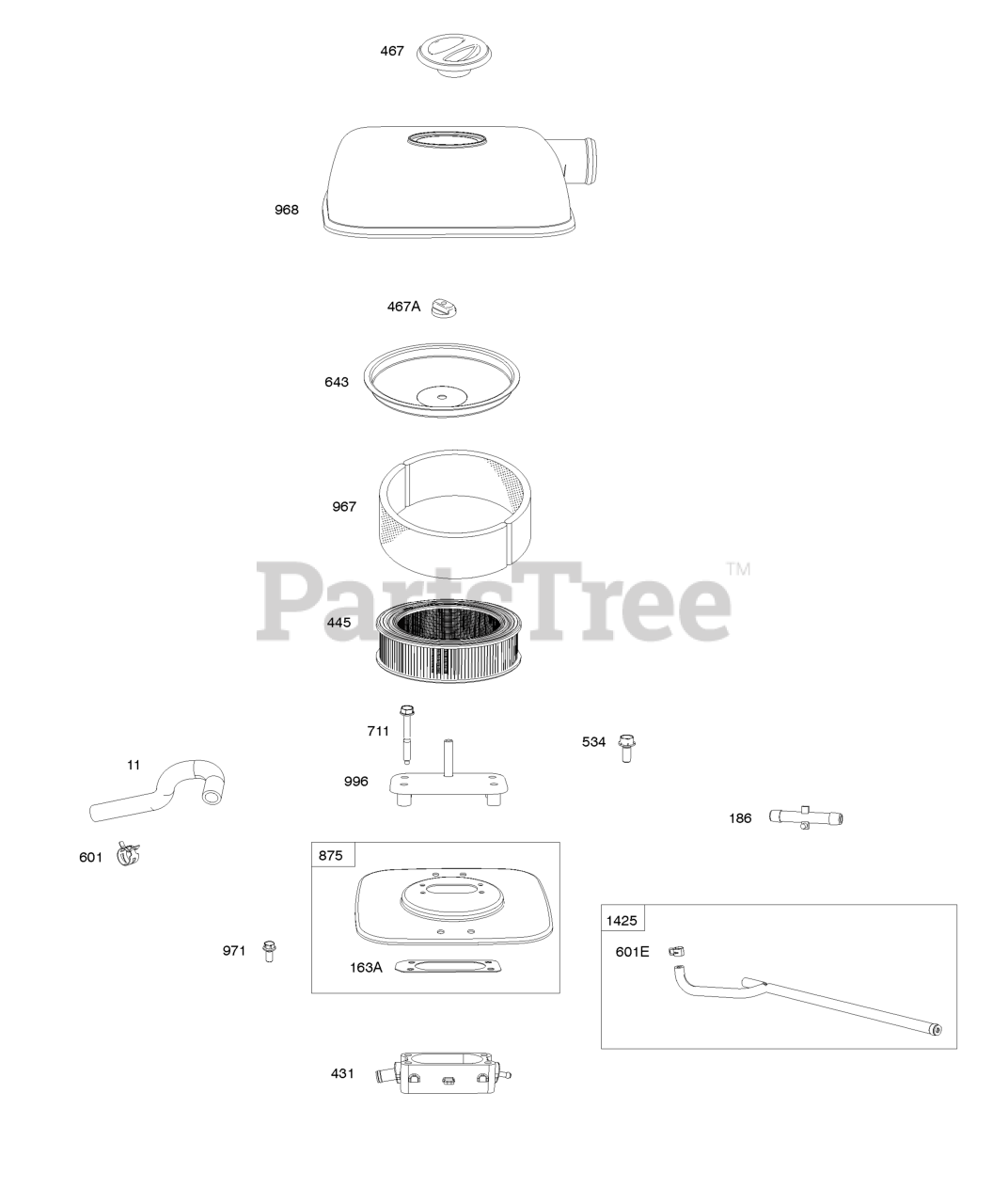

54E177-0001-J1 - Briggs & Stratton Horizontal Engine Air Cleaner Parts Diagram

Horizontal Engine

Air Cleaner Parts Diagram

  • Title

11

Briggs & Stratton 846502

TUBE, Breather

Note: (Formed Hose)

$26.99

$

Usually ships in 2-12 days

0

163A

Briggs & Stratton 843117

GASKET, Air Cleaner

$5.99

$

In Stock, only 1 left!

0

186

Briggs & Stratton 845121

Connector-Hose

$6.49

$

Usually ships in 2-12 days

0

431

Briggs & Stratton 846507

ELBOW, Intake

$82.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 692519

FILTER, A/C Cartridge

$20.99

$

In Stock, Qty 20+

0

467

Briggs & Stratton 846008

KNOB, Air Cleaner Cover

$16.99

$

Usually ships in 2-12 days

0

467A

Briggs & Stratton 846432

KNOB, Air Cleaner Cover

$8.99

$

Usually ships in 2-12 days

0

534

Briggs & Stratton 692062

Screw

Note: (Air Cleaner) (M8x18mm)

$3.49

$

In Stock, Qty 20+

0

601

Briggs & Stratton 844405

CLAMP, Hose

Note: (Breather Tube)

$3.99

$

Usually ships in 2-12 days

0

601E

Briggs & Stratton 846483

CLAMP, Hose

Note: (Purge Line Hose)

$3.99

$

Usually ships in 2-12 days

0

643

Briggs & Stratton 844932

RETAINER, Air Filter

$22.99

$

In Stock, Qty 7

0

711

Briggs & Stratton 806444

SCREW

Note: (Carburetor Shield) (M6x68mm)

$4.49

$

In Stock, only 1 left!

0

875

Briggs & Stratton 843118

BASE, Air Cleaner

$72.99

$

Usually ships in 2-12 days

0

967

Briggs & Stratton 692520

Filter-Pre Cleaner

$6.49

$

In Stock, only 1 left!

0

968

Briggs & Stratton 841847

Cover-Air Cleaner

$88.99

$

Usually ships in 2-12 days

0

971

Briggs & Stratton 692062

Screw

Note: (Air Cleaner Base to Carburetor/Throttle Body)

$3.49

$

In Stock, Qty 20+

0

996

Briggs & Stratton 846006

SHIELD, Carburetor

$36.99

$

Usually ships in 2-12 days

0

1425

Briggs & Stratton 847085

Hose-Purge Line

$65.99

$

Usually ships in 2-12 days

0
