547/42 (13B8775S345) - Yard Machines 42" Lawn Tractor, 547cc (2021) Hood & Grille Parts Diagram

42" Lawn Tractor, 547cc

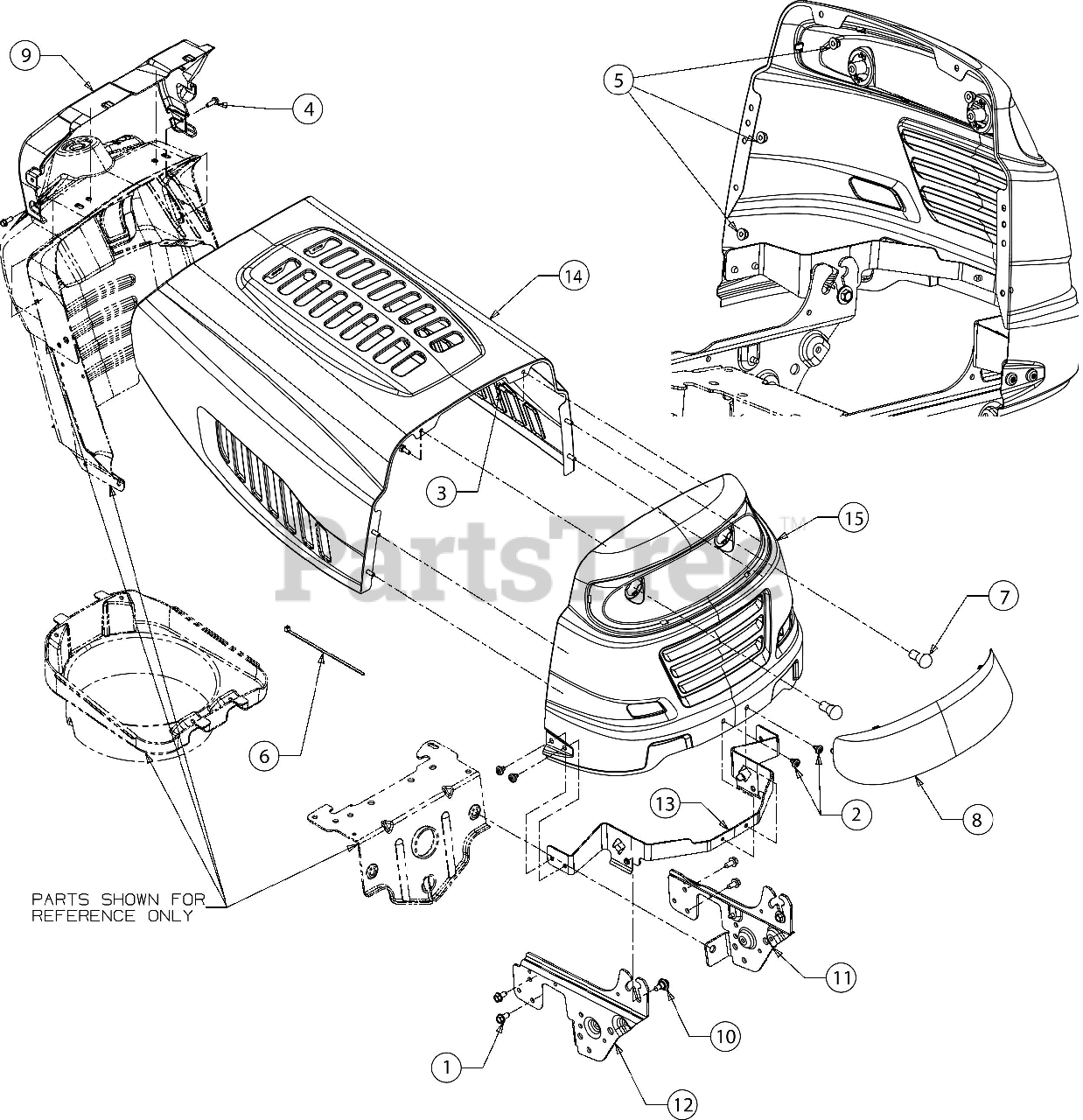

Hood & Grille Parts Diagram

  • Title
1

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-04593

SCREW 5/16-18 x .375

$4.49

$

In Stock, only 3 left!

0

3

MTD 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0895

SCREW 1/4-15 x .750

$6.49

$

In Stock, Qty 10

0

5

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

6

MTD 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

7

MTD 925-0963

MINIATURE LAMP-12V #1156

$7.49

$

In Stock, Qty 5

0

8

MTD 731-04949A

GRILL LENS

$26.99

$

In Stock, only 3 left!

0

9

MTD 731-05078C

DASH COLLAR

$18.99

$

In Stock, only 2 left!

0

10

MTD 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$3.99

$

In Stock, Qty 20+

0

11

MTD 783-05327B-0637

SUPPORT BRACKET (LH)(POWDER BLACK)

$40.99

$

Usually ships in 3-6 days

0

12

MTD 783-05328A-0637

PIVOT SUPPORT BRACKET (RH)(POWDER BLACK)
(Superseded to 783-05328B-0637)

$42.99

$

Usually ships in 3-6 days

0

13

MTD 783-05454-0637

HOOD PIVOT BRACKET

$31.99

$

Usually ships in 3-6 days

0

14

MTD 783-05683

HOOD-5-STYLE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-05683-0629

HOOD-5 STYLE - SILVER FLAKE (0629)

$159.99

$

Usually ships in 3-6 days

0

MTD 783-05683-0638

HOOD-5 STYLE - MTD/TROY-BILT RED (0638)

$171.99

$

Usually ships in 3-6 days

0

MTD 783-05683-0662

HOOD-5 STYLE - OYSTER GRAY (0662)

$171.99

$

Usually ships in 3-6 days

0

MTD 783-05683-0674

HOOD-5 STYLE - YARDMAN YELLOW (0674)

$159.99

$

Usually ships in 3-6 days

0

MTD 783-05683-0691

HOOD-5 STYLE - BLACK JACK (0691)

$159.99

$

Usually ships in 3-6 days

0

MTD 783-05683-0709

HOOD-5 STYLE - MASTERCRAFT GREEN (0709)

$138.99

$

Usually ships in 3-6 days

0

$138.99

$

Usually ships in 3-6 days

0

15

MTD 783-05685A

GRILLE-1 STYLE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-05685A-0662

Grille 1 Style - OYSTER GRAY (0662)

$140.99

$

Usually ships in 3-6 days

0

MTD 783-05685A-0638

Grille, 1 Style - MTD/TROY-BILT RED (0638)

$140.99

$

Usually ships in 3-6 days

0

MTD 783-05685A-0709

Grille, 1 Style - MASTERCRAFT GREEN (0709)

$130.99

$

In Stock, only 1 left!

0

MTD 783-05685A-0629

GRILLE-1 STYLE - SILVER FLAKE (0629)

$130.99

$

Usually ships in 3-6 days

0

MTD 783-05685A-0668

GRILLE-1 STYLE - MOSS GREEN (0668)

$113.99

$

Usually ships in 3-6 days

0

MTD 783-05685A-0674

GRILLE-1 STYLE - YARDMAN YELLOW (0674)

$113.99

$

Usually ships in 3-6 days

0

MTD 783-05685A-0691

GRILLE-1 STYLE - BLACK JACK (0691)

$130.99

$

In Stock, only 1 left!

0

MTD 783-05685A-0729

GRILLE-1 STYLE - STORM GRAY (0729)

$113.99

$

Usually ships in 3-6 days

0

MTD 783-05685A-4015

GRILLE-1 STYLE - FIRE RED (4015)

$113.99

$

Usually ships in 3-6 days

0

MTD 783-05685A-4043

GRILLE-1 STYLE - CRAFTSMAN METALLIC GRAY (4043)

$130.99

$

Usually ships in 3-6 days

0

$113.99

$

Usually ships in 3-6 days

0
