547/42 (13A8775S345) - Yard Machines 42" Lawn Tractor, 547cc (2017) Spindle Parts Diagram

42" Lawn Tractor, 547cc

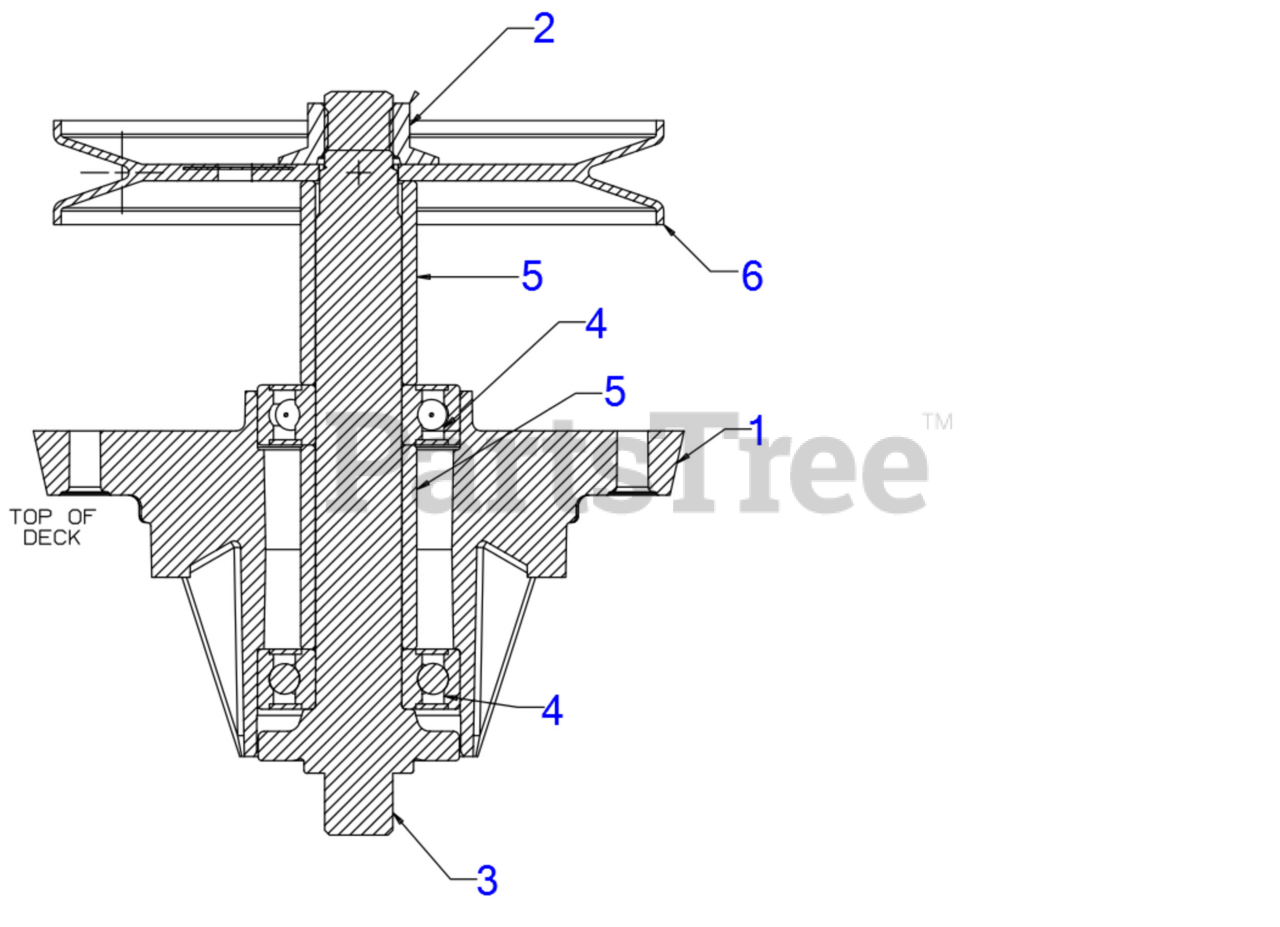

Spindle Parts Diagram

  • Title
1

MTD 619-04183B

DECK SPINDLE HOUSING
(Superseded to 719-07293-M)

$44.99

$

In Stock, Qty 5

0

2

MTD 712-0417A

HEX NUT

$6.99

$

In Stock, Qty 20+

0

3

MTD 738-1186A

BLADE SPINDLE SHAFT STAR 6.11 LG

$49.99

$

In Stock, Qty 14

0

4

MTD 941-0919B

BALL BEARING

$21.99

$

In Stock, Qty 20+

0

5

MTD 750-04936

SPACER- .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

6

MTD 756-05031

DECK PULLEY 5.4" DIA

$23.99

$

In Stock, Qty 5

0

MTD 918-06991

SPINDLE ASSEMBLY

$103.99

$

In Stock, only 1 left!

0
