547/42 (13A8775S345) - Yard Machines 42" Lawn Tractor, 547cc (2017) Drive Parts Diagram

42" Lawn Tractor, 547cc

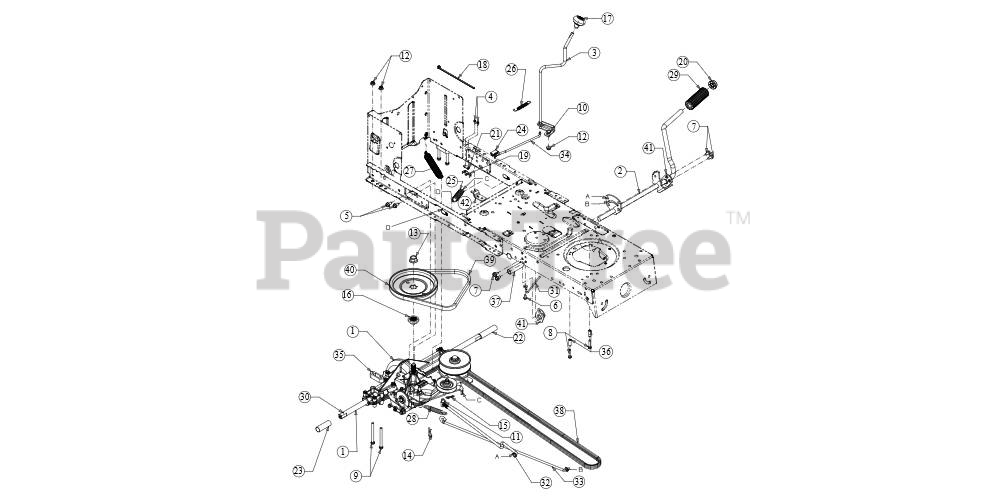

Drive Parts Diagram

  • Title

1

MTD 918-04566A

TRANSMISSION ASSEMBLY
(Superseded to 918-04566B)

Note: (See Separate Breakdown) 618-04907

$718.99

$

In Stock, only 1 left!

0

2

MTD 647-04034C

PEDAL ASSEMBLY
(Superseded to 647-04034E)

Note: *CHOOSE COLOR WHEN ORDERING* 618-04566A

Variations

MTD 647-04034C-0606

PEDAL ASM:DRIVE - MAJESTIC ORANGE (0606)

$86.99

$

Usually ships in 3-6 days

0

MTD 647-04034C-0637

Drive Pedal Assembly - POWDER BLACK (0637)

$86.99

$

In Stock, only 1 left!

0

MTD 647-04034C-0638

PEDAL ASM:DRIVE - MTD/TROY-BILT RED (0638)

$86.99

$

Usually ships in 3-6 days

0

MTD 647-04034C-0665

PEDAL ASM:DRIVE - YARDMAN GREEN (0665)

$69.99

$

Usually ships in 3-6 days

0

MTD 647-04034C-0650

PEDAL ASM:DRIVE - RED METALLIC (0650)

$80.99

$

Usually ships in 3-6 days

0

MTD 647-04034C-0691

PEDAL ASM:DRIVE - BLACK JACK (0691)

$80.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

3

MTD 647-04266A

SHIFT LEVER ASSEMBLY

$26.99

$

In Stock, only 1 left!

0

4

MTD 710-0227

HEX SCREW WASHER HD #8-18 X 0.500

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0604A

SCREW 5/16-18 X .625

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0809

SCREW 1/4-20 X 1.25

$6.99

$

In Stock, Qty 19

0

9

MTD 710-1266

SCREW 5/16-18X3.5 GR5

$9.99

$

Usually ships in 3-6 days

0

10

MTD 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

11

MTD 711-06103

FERRULE 3/8-24 X .375

$4.49

$

In Stock, Qty 11

0

12

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

Usually ships in 3-6 days

0

13

MTD 712-0700

FLANGE NUT W/HUB

$10.99

$

In Stock, only 1 left!

0

14

MTD 914-0209

COTTER PIN

$3.99

$

In Stock, only 2 left!

0

15

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

16

MTD 718-04407

PULLEY HUB

$12.99

$

In Stock, Qty 20+

0

17

MTD 720-04028

SHIFT KNOB

$10.99

$

In Stock, only 4 left!

0

18

MTD 725-0157

CABLE TIE 7",1"

$3.99

$

In Stock, Qty 20+

0

19

MTD 725-1644

SAFETY SPRING SWITCH

$9.99

$

In Stock, Qty 11

0

20

MTD 726-0214

PUSH CAP

$10.99

$

Usually ships in 3-6 days

0

21

MTD 926-0320

INSULATOR PLATE

$6.99

$

In Stock, Qty 11

0

22

MTD 731-04602

SLEEVE

$6.49

$

In Stock, only 1 left!

0

23

MTD 731-04604

SLEEVE

$6.99

$

In Stock, only 3 left!

0

24

MTD 731-06894

SHIFT ROD BEARING

$6.49

$

In Stock, only 1 left!

0

25

MTD 732-04306

EXTENSION SPRING

$10.99

$

In Stock, only 1 left!

0

26

MTD 732-04488

EXTENSION SPRING .38 OD X 3.25 LG

$6.49

$

In Stock, only 3 left!

0

27

MTD 732-04746

EXTENSION SPRING .94 X 6.75

$11.99

$

In Stock, only 2 left!

0

28

MTD 732-0716D

EXTENSION SPRING

$13.99

$

In Stock, only 1 left!

0

29

MTD 735-0239

FOOT PAD
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

31

MTD 747-04969

BELT KEEPER ROD

$6.99

$

In Stock, only 1 left!

0

32

MTD 747-05186

VARIABLE SPEED ROD

$15.99

$

In Stock, only 1 left!

0

33

MTD 747-05188

BRAKE ROD

$12.99

$

Usually ships in 3-6 days

0

34

MTD 747-05243

SHIFT ROD

$11.99

$

In Stock, only 3 left!

0

35

MTD 948-0334

TRANSAXLE SPACER

$10.99

$

In Stock, only 1 left!

0

36

MTD 750-0566A

SPACER

$9.99

$

In Stock, only 1 left!

0

37

MTD 750-0802

SPACER-5/8 ID X 2.

$6.99

$

Usually ships in 3-6 days

0

38

MTD 954-04249A

V-BELT 70.90

$45.99

$

In Stock, Qty 20+

0

39

MTD 954-05040

V-BELT 5L X 35.25

$45.99

$

In Stock, Qty 8

0

40

MTD 956-04002

V- PULLEY W/HUB

$27.99

$

In Stock, Qty 20+

0

41

MTD 783-04536B

PEDAL SUPPORT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-04536B-0637

Pedal Support Bracket - POWDER BLACK (0637)

$6.49

$

Usually ships in 3-6 days

0

MTD 783-04536B-0606

BRACKET-PEDAL SUPP - MAJESTIC ORANGE (0606)

$6.49

$

Usually ships in 3-6 days

0

MTD 783-04536B-0638

BRACKET-PEDAL SUPP - MTD/TROY-BILT RED (0638)

$6.49

$

Usually ships in 3-6 days

0

MTD 783-04536B-0691

BRACKET-PEDAL SUPP - BLACK JACK (0691)

$6.49

$

Usually ships in 3-6 days

0

MTD 783-04536B-0709

BRACKET-PEDAL SUPP - MASTERCRAFT GREEN (0709)

$6.49

$

Usually ships in 3-6 days

0

$6.49

$

Usually ships in 3-6 days

0

42

MTD 783-04595A

SHIFT ADJUSTMENT BRACKET

$10.99

$

In Stock, only 4 left!

0
