54610 - Toro 40cm Scarifier Dethatcher (SN: 321000001 - 321999999) (2021) Engine and Blade Assembly Parts Diagram

40cm Scarifier Dethatcher

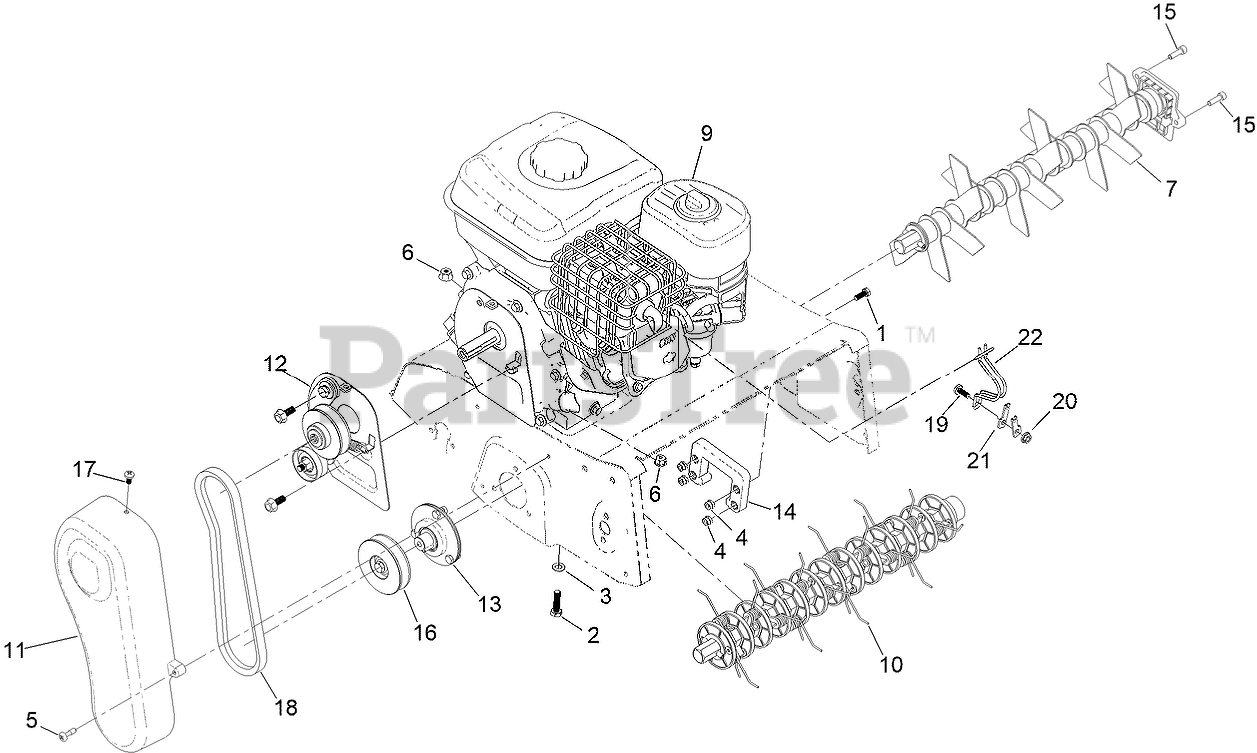

Engine and Blade Assembly Parts Diagram

  • Title

1

Toro 134-5466

BOLT-HEX

$0.99

$

Usually ships in 3-6 days

0

2

Toro 09369

SCREW-HH

$

$

Not available

3

Toro 134-5498

WASHER

$0.99

$

Usually ships in 3-6 days

0

4

Toro 09438

NUT-NYLOC

$

$

Not available

5

Toro 134-5501

SCREW

$0.99

$

Usually ships in 3-6 days

0

6

Toro 134-0118

NUT-LOCK, FLANGE

$

$

Currently unavailable

7

SCARIFIER BLADE SHAFT ASSY

Note: Not serviced separately

$

$

Not available

9

BS CR750 SERIES 163

Note: Not serviced separately

$

$

Not available

10

AERATOR ASSY

Note: Not serviced separately

$

$

Not available

11

Toro 134-5574

GUARD-PULLEY

$7.99

$

Usually ships in 3-6 days

0

12

Toro 134-5592

PLATE-PULLEY, ENGINE

$11.99

$

Usually ships in 3-6 days

0

13

SHAFT PULLEY COUPLER ASSY

Note: Not serviced separately

$

$

Not available

14

Toro 134-5548

DOCK-SHAFT, TINE

$3.99

$

Usually ships in 3-6 days

0

15

Toro 134-5573

SCREW-SOCKET CAP HEAD

$0.99

$

Usually ships in 3-6 days

0

16

Toro 134-5555

PULLEY-SHAFT, TINE

$17.99

$

Usually ships in 3-6 days

0

17

Toro 134-5553

SCREW-PAN HEAD

$0.99

$

Usually ships in 3-6 days

0

18

Toro 134-5626

BELT

$5.99

$

Usually ships in 3-6 days

0

19

Toro 134-6108

CROSS SCREW M6X16

$0.99

$

Usually ships in 3-6 days

0

20

Toro 134-6109

M6 HEX NUT

$1.49

$

Usually ships in 3-6 days

0

21

Toro 134-6110

EXHAUST GUARD BRACKET

$0.99

$

Usually ships in 3-6 days

0

22

Toro 134-6111

GUARD-EXHAUST

$2.49

$

Usually ships in 3-6 days

0
