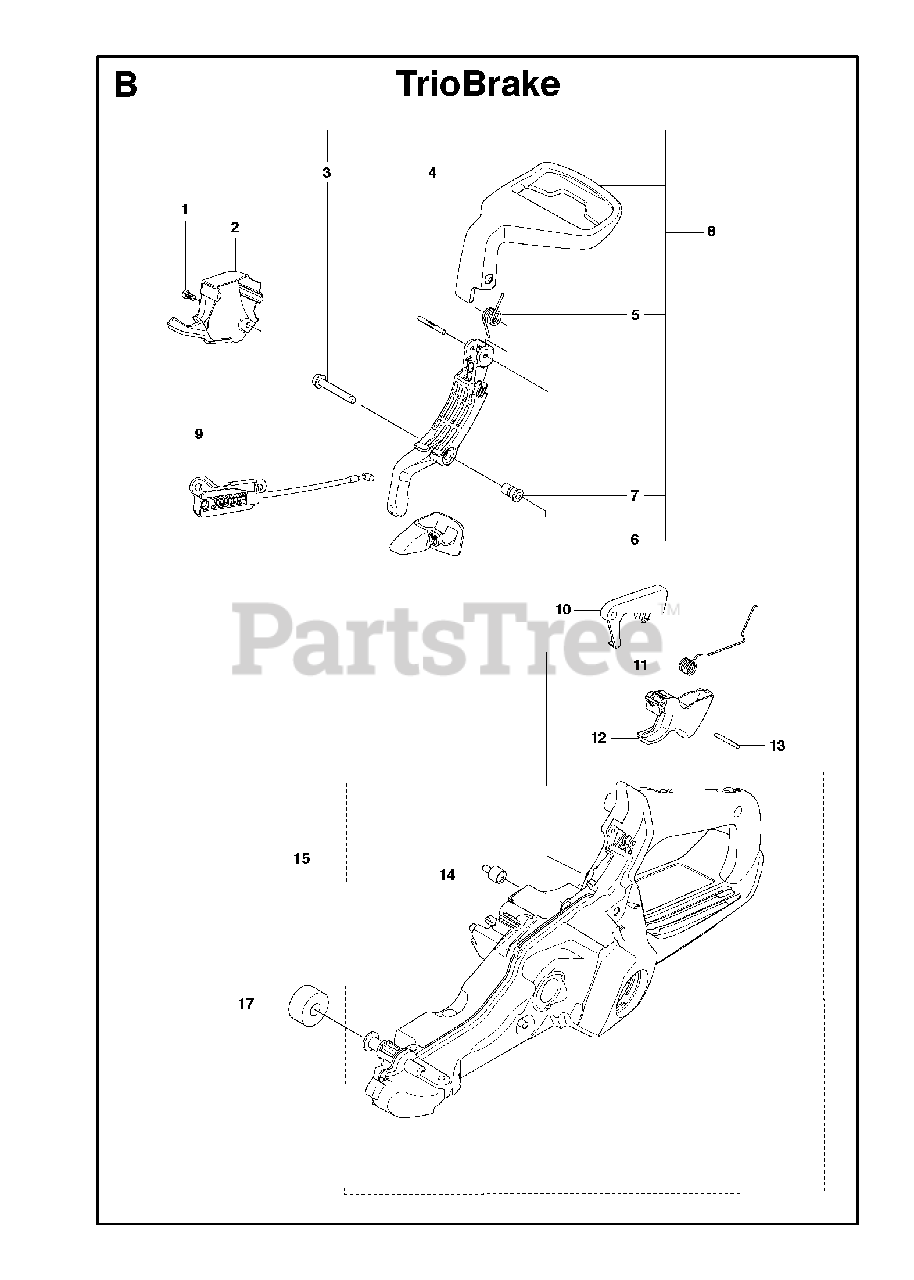

545 TRIOBRAKE - Husqvarna Chainsaw (2011-11) PRODUCT COMPLETE Parts Diagram

Chainsaw

PRODUCT COMPLETE Parts Diagram

  • Title

1

Husqvarna 503217072

SCREW

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna 576708001

COVER LID

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 503217535

Screw

Note: . 8

$2.49

$

Usually ships in 3-10 days

0

4

Husqvarna 721121330

Grooved Pin

Note: . 8

$1.11

$

Usually ships in 3-10 days

0

5

Husqvarna 537059201

Spring

Note: . 8

$3.34

$

Usually ships in 3-10 days

0

6

Husqvarna 576708101

BELLOWS

Note: . 8

$6.70

$

Usually ships in 3-10 days

0

7

Husqvarna 540058001

SLEEVE

Note: . 8

$1.49

$

Usually ships in 3-10 days

0

8

Husqvarna 578003301

HAND GUARD ASSY

$34.99

$

Usually ships in 3-10 days

0

9

Husqvarna 576708201

WIRE ASSY

$11.53

$

Usually ships in 3-10 days

0

10

Husqvarna 544099801

THROTTLE LOCKOUT

$6.99

$

In Stock, Qty 10

0

11

Husqvarna 544099901

SPRING

$7.49

$

In Stock, Qty 20+

0

12

Husqvarna 505157701

THROTTLE

$6.99

$

In Stock, Qty 9

0

13

Husqvarna 720182520

PIN

$2.99

$

In Stock, Qty 20+

0

14

Husqvarna 537359501

FUEL TANK VENT
(Superseded to 501152901)

Note: . 15

$20.99

$

In Stock, Qty 15

0

15

Husqvarna 576707701

FUEL TANK ASSY
(Superseded to 577790204)

$125.99

$

Usually ships in 3-10 days

0

17

Husqvarna 523085501

DEFLECTION LIMITER

Note: . 15

$9.49

$

In Stock, Qty 11

0
