545 - Husqvarna Chainsaw (2013-01) CYLINDER PISTON Parts Diagram

Chainsaw

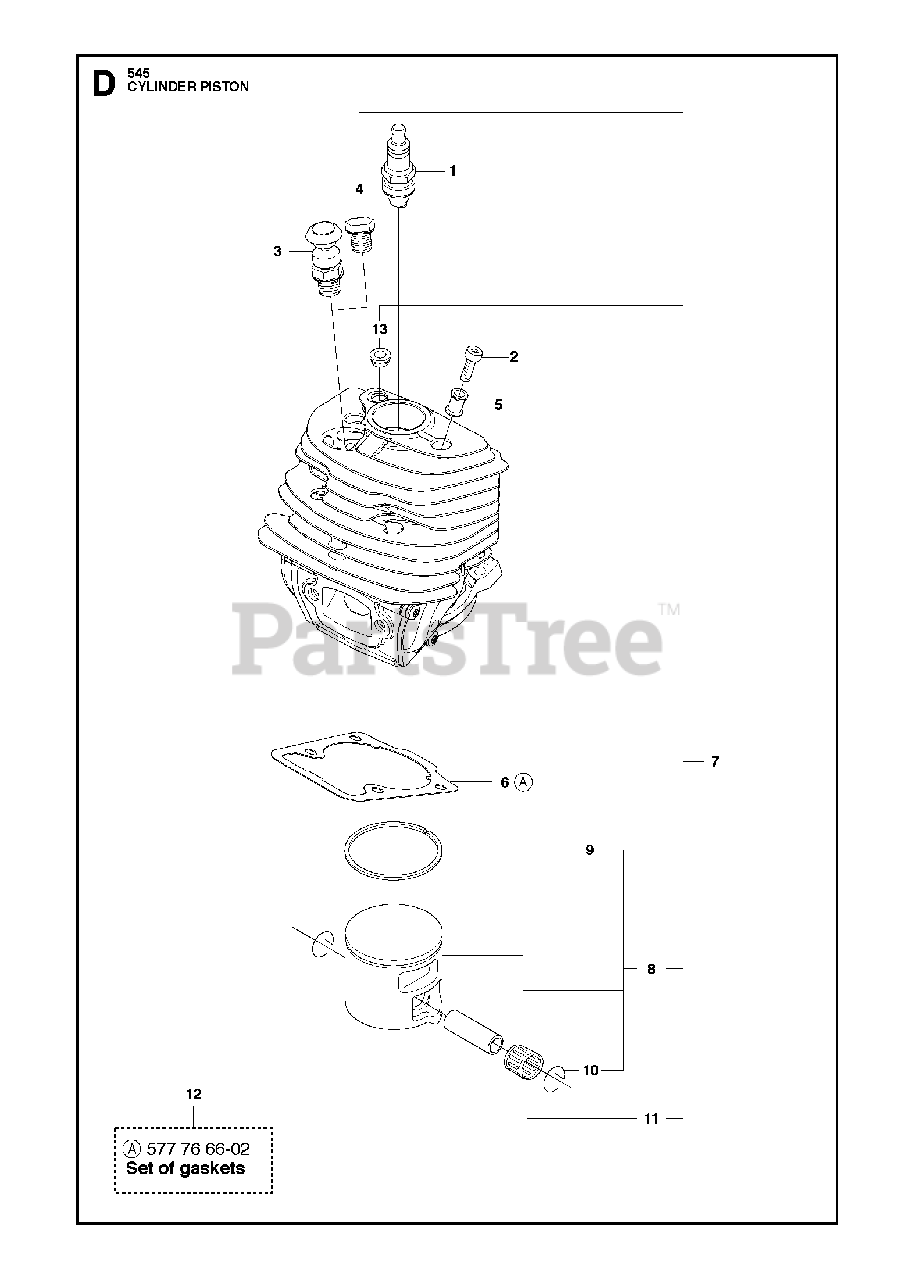

CYLINDER PISTON Parts Diagram

  • Title

1

Husqvarna 574519601

CMR6H SPARK PLUG NGK
(Superseded to 531008615)

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 725533755

SCREW MC6S 5X35

$6.49

$

In Stock, Qty 6

0

3

Husqvarna 575276901

DECOMPRESSION VALVE

$31.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503552201

CYLINDER PLUG

$13.99

$

In Stock, only 2 left!

0

5

Husqvarna 576717602

SLEEVE

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 525315801

GASKET

Note: . 12

$4.99

$

In Stock, only 2 left!

0

7

Husqvarna 577764702

RP CYLINDER PISTON ASSY
(Superseded to 577764708)

$363.99

$

Usually ships in 3-10 days

0

8

Husqvarna 577047002

PISTON ASSY
(Superseded to 577047008)

Note: . 7

$169.99

$

Usually ships in 3-10 days

0

9

Husqvarna 577958301

PISTON RING

Note: . 8 7

$20.99

$

Usually ships in 3-10 days

0

10

Husqvarna 737441000

LOCKING RING

Note: . 8 7

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 503256301

NEEDLE BEARING
(Superseded to 503256302)

Note: . 7

$24.99

$

In Stock, only 1 left!

0

12

Husqvarna 577766602

GASKET KIT
(Superseded to 577766603)

Note: A set of gaskets

$17.99

$

In Stock, only 1 left!

0

13

Husqvarna 520291101

BUSHING

Note: . 7

$5.99

$

Usually ships in 3-10 days

0
