545 FXT - Husqvarna Brush Cutter FUEL TANK Parts Diagram

Brush Cutter

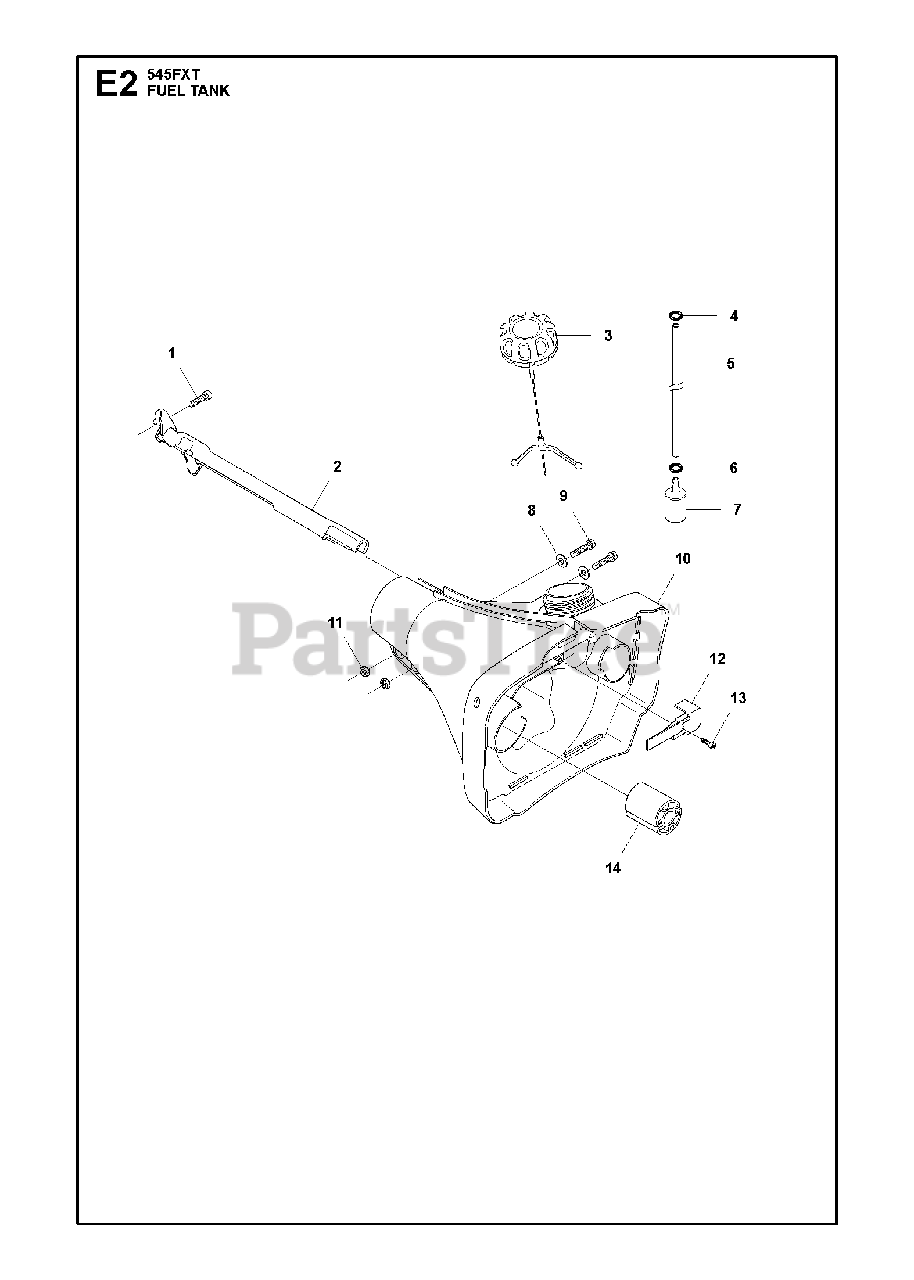

FUEL TANK Parts Diagram

  • Title

1

Husqvarna 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 584148101

PROTECTOR

Note: from s /n 20152500060-

$6.99

$

Usually ships in 3-10 days

0

3

Husqvarna 544076902

%WINTER TANK CAP
(Superseded to 504113202)

$

$

Not available

4

Husqvarna 537184901

O-RING

$7.49

$

In Stock, Qty 20+

0

5

Husqvarna 581756116

FUEL HOSE STRAIGHT 265

$7.99

$

In Stock, only 4 left!

0

6

Husqvarna 537184901

O-RING

$7.49

$

In Stock, Qty 20+

0

7

Husqvarna 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

8

Husqvarna 503230011

WASHER 5.3X12

$6.49

$

In Stock, only 2 left!

0

9

Husqvarna 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 503949301

TANK UNIT
(Superseded to 503949303)

$74.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503221012

NUT

$3.49

$

In Stock, Qty 7

0

12

Husqvarna 537219901

HOLDER

$

$

Not available

13

Husqvarna 503217116

SCREW
(Superseded to 586444901)

$3.49

$

In Stock, Qty 7

0

14

Husqvarna 510208701

ANTIVIBRATION ELEMENT

$11.99

$

In Stock, Qty 10

0
