545 FXT - Husqvarna Brush Cutter BEVEL GEAR Parts Diagram

Brush Cutter

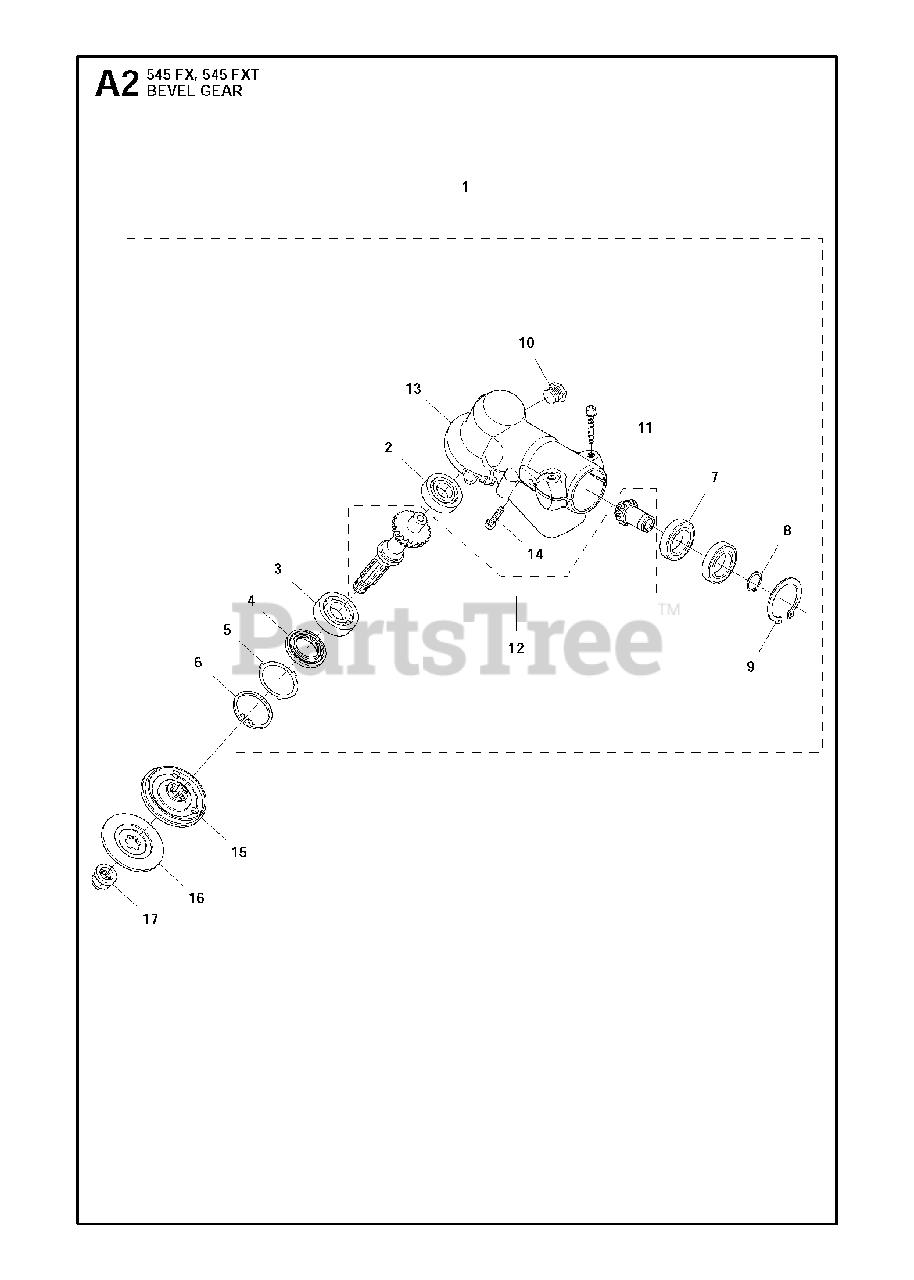

BEVEL GEAR Parts Diagram

  • Title
1

Husqvarna 588163301

GEAR HOUSING ASSY

$460.99

$

Usually ships in 3-10 days

0

2

Husqvarna 738210110

BALL BEARING

Note: . 1

$24.99

$

Usually ships in 3-10 days

0

3

Husqvarna 503250801

BALL BEARING

Note: . 1

$24.99

$

In Stock, Qty 9

0

4

Husqvarna 503261701

SEAL

Note: . 1

$13.99

$

In Stock, only 1 left!

0

5

Husqvarna 503758901

WASHER

Note: . 1

$2.23

$

In Stock, only 1 left!

0

6

Husqvarna 735313310

RETAINING RING SGH 35

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 738218712

BALL BEARING

Note: . 1

$31.99

$

Usually ships in 3-10 days

0

8

Husqvarna 735311700

RETAINING RING SGA 15

Note: . 1

$3.49

$

In Stock, Qty 7

0

9

Husqvarna 735313110

RETAINING RING

Note: . 1

$4.99

$

In Stock, only 2 left!

0

10

Husqvarna 503201501

PLUG

Note: . 1

$9.99

$

In Stock, only 1 left!

0

11

Husqvarna 503200225

SCREW

Note: . 1

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 587977601

SPARE PARTS KIT
(Superseded to 537290601)

Note: . 1

$79.99

$

Usually ships in 3-10 days

0

13

Husqvarna 502297901

Gear Housing

Note: . 1

$121.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503200316

SCREW

Note: . 1

$6.49

$

In Stock, Qty 20+

0

$37.99

$

Usually ships in 3-10 days

0

16

Husqvarna 544217801

SUPPORT FLANGE
(Superseded to 537343502)

$26.99

$

Usually ships in 3-10 days

0

17

$7.99

$

Usually ships in 3-10 days

0
