545 FX - Husqvarna Brush Cutter CYLINDER PISTON Parts Diagram

Brush Cutter

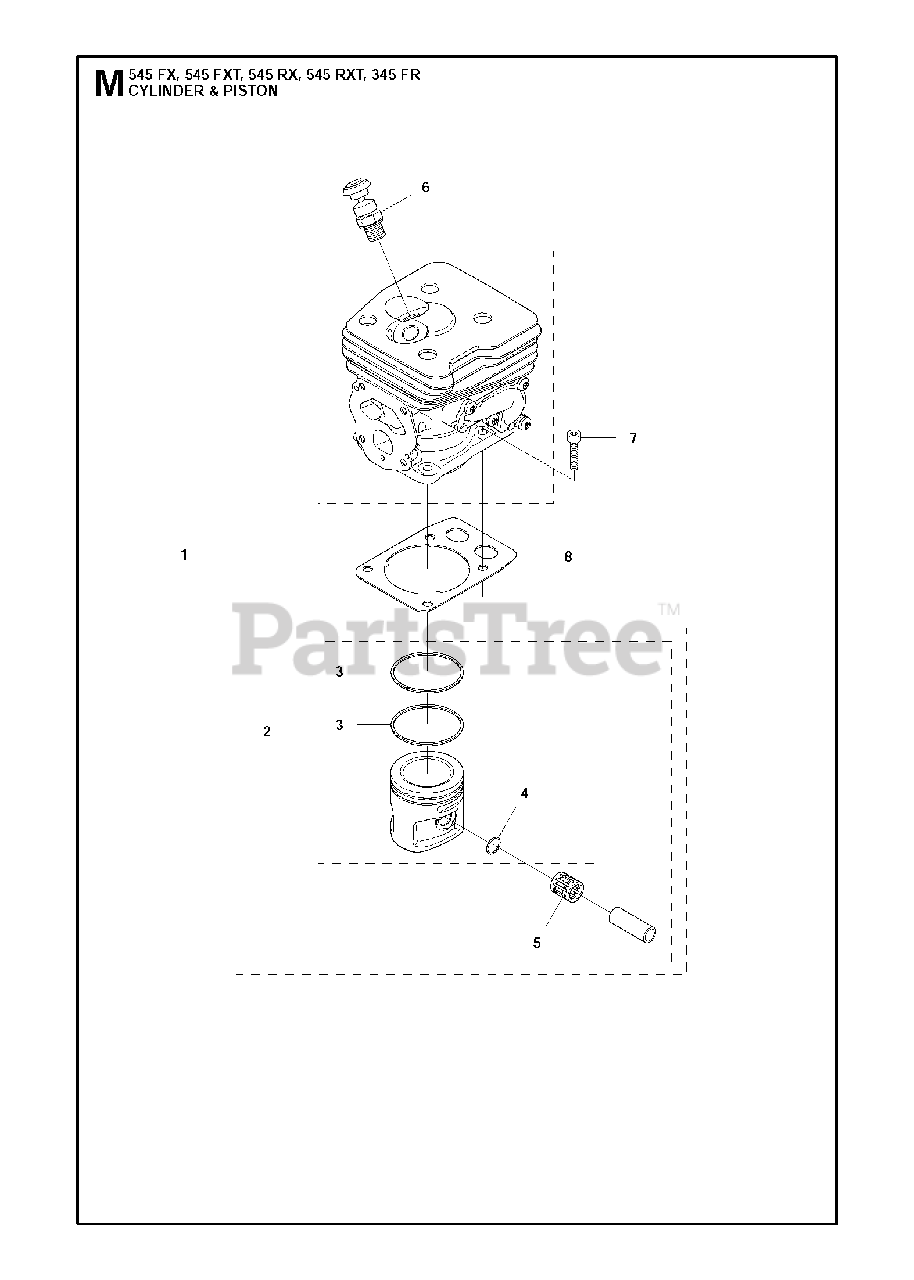

CYLINDER PISTON Parts Diagram

  • Title

1

Husqvarna 577274902

CYLINDER

Note: s /n from 20122300181

$

$

Not available

1

Husqvarna 577274901

CYLINDER

Note: s /n up to 20122300180

$250.99

$

Usually ships in 3-10 days

0

2

Husqvarna 522626302

RP PISTON ASSY

Note: s /n up to 20122300180. 1

$

$

Not available

2

Husqvarna 576282702

PISTON ASSY

Note: s /n from 20163900236-

$182.99

$

Usually ships in 3-10 days

0

2

Husqvarna 576282704

Note: s /n from 20122300181 up to- 20163900235

$

$

Currently unavailable

3

Husqvarna 576283001

PISTON RING D42

Note: s /n from 20122300181-

$17.99

$

Usually ships in 3-10 days

0

3

Husqvarna 522626501

PISTON RING

Note: s /n up to- 20122300180. 1 2

$14.99

$

Usually ships in 3-10 days

0

4

Husqvarna 737441000

LOCKING RING

Note: . 1 2

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 503256301

NEEDLE BEARING
(Superseded to 503256302)

Note: . 1

$24.99

$

In Stock, only 1 left!

0

6

Husqvarna 544200001

DECOMPRESSION VALVE

$66.99

$

In Stock, only 2 left!

0

7

Husqvarna 725533155

SCREW MC6S 5X20
(Superseded to 525824902)

$6.49

$

In Stock, only 2 left!

0

8

Husqvarna 587153401

GASKET CYLINDER

$9.99

$

Usually ships in 3-10 days

0
