545 FR - Husqvarna Brush Cutter CLUTCH Parts Diagram

Brush Cutter

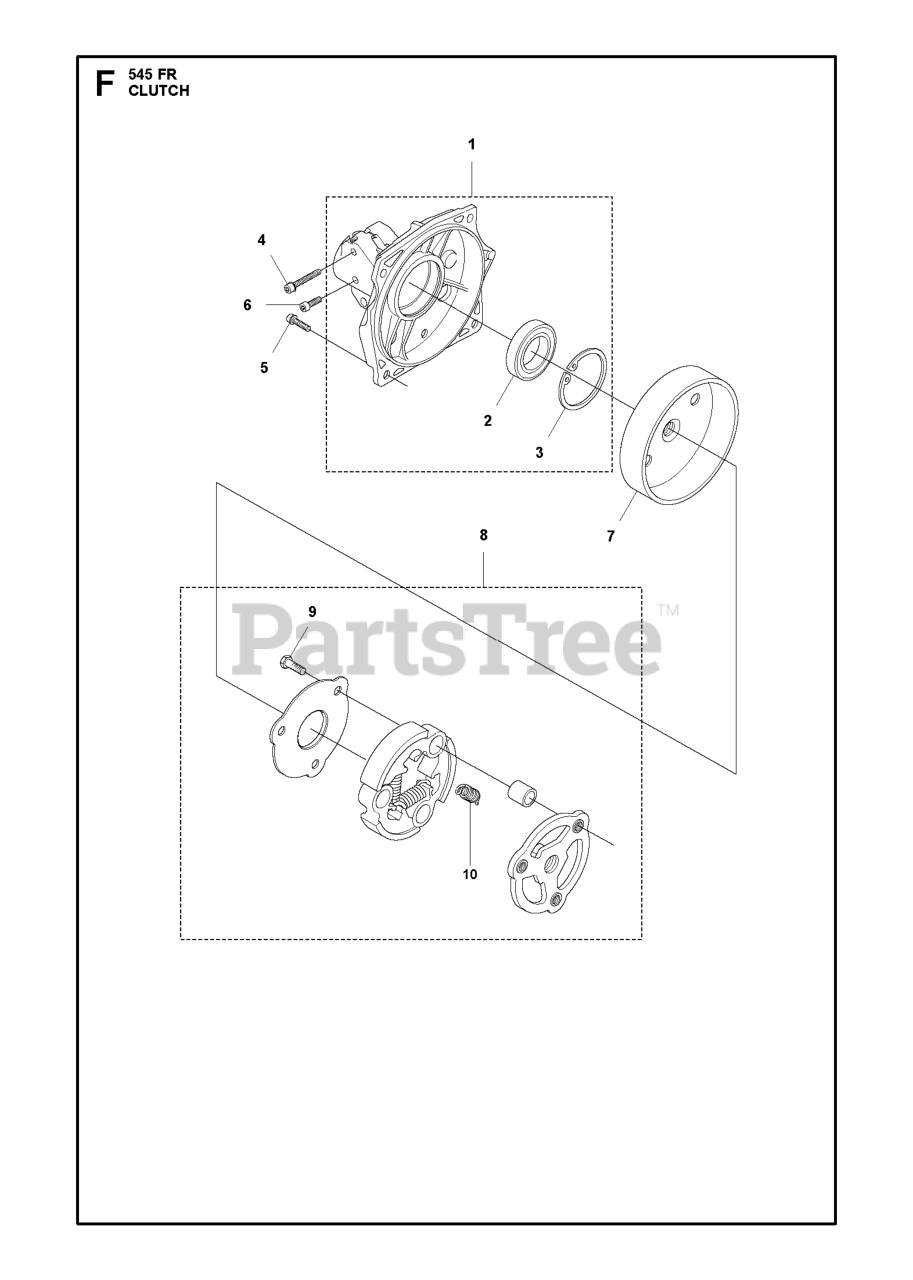

CLUTCH Parts Diagram

  • Title

9

Husqvarna 503201802

SCREW

$4.99

$

In Stock, only 1 left!

0

4

Husqvarna 503200230

SCREW

$6.49

$

In Stock, only 1 left!

0

5

Husqvarna 503200220

SCREW

$6.49

$

In Stock, Qty 18

0

6

Husqvarna 503200770

NEEDS DESCRIPTION

Note: from s/n 20194300361 -

$

$

Currently unavailable

2

Husqvarna 738220219

BALL BEARING 6202-2RS1

$35.99

$

Usually ships in 3-10 days

0

3

Husqvarna 735313310

RETAINING RING SGH 35

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 505435302

CLUTCH SPRING

$8.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503202001

SCREW MC6LS 5X12

Note: up to s/n - 20194300360.

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 544900701

CLUTCH DRUM ASSM.

$43.99

$

Usually ships in 3-10 days

0

1

Husqvarna 503954105

CLUTCH COVER

Note: from s/n 20194300361 - . For older products use kit 5978421-02

$74.99

$

Usually ships in 3-10 days

0

8

Husqvarna 594512301

Clutches

$72.99

$

Usually ships in 3-10 days

0
