544921701 - Husqvarna Snow Blade (2007-01) SNOW / DOZERBLADE Parts Diagram

Snow Blade

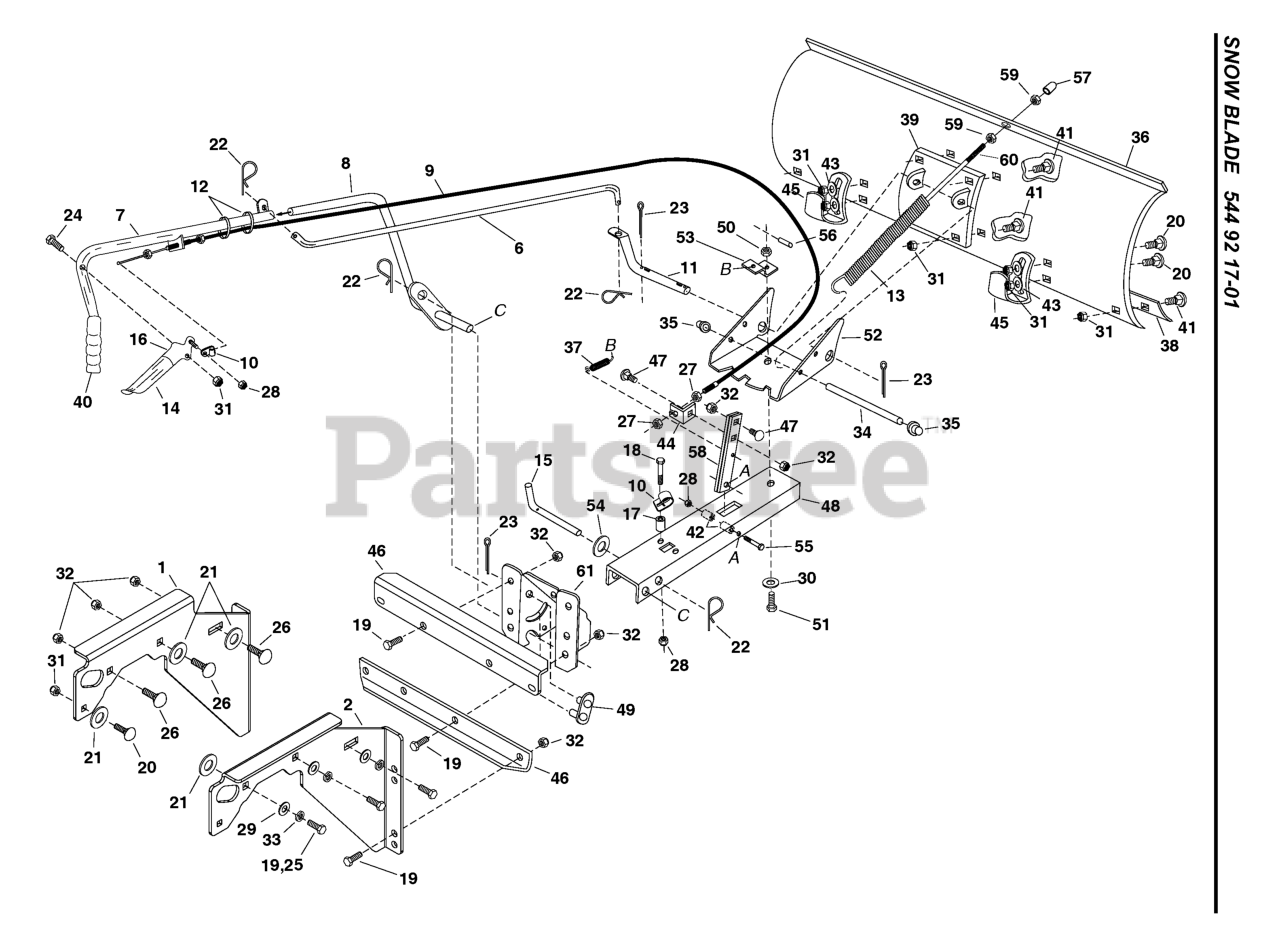

SNOW / DOZERBLADE Parts Diagram

  • Title

17

Husqvarna 501331901

SPACER 23658

$

$

Not available

10

Husqvarna 501331201

CABLE 746-0260

$

$

Not available

37

Husqvarna 501333001

SPRING 43348

$

$

Not available

58

Husqvarna 501334901

BAR 23151

$

$

Not available

31

Husqvarna 501332601

NUT 47810

$

$

Not available

33

Husqvarna 735117301

Spring Washer

$3.49

$

In Stock, only 2 left!

0

45

Husqvarna 501333601

SKID PLATE

$

$

Not available

44

Husqvarna 501333501

BRACKET 05762

$

$

Not available

39

Husqvarna 501333201

PLATE 62980

$

$

Not available

22

Husqvarna 531004637

PIN

$

$

Not available

24

Husqvarna 501332101

BOLT

$

$

Not available

2

Husqvarna 501330701

BRACKET 25646

$

$

Not available

9

Husqvarna 501331101

CABLE

$

$

Not available

36

Husqvarna 501332901

SNOW BLADE 23955

$

$

Not available

51

Husqvarna 501334201

BOLT 23131

$

$

Not available

54

Husqvarna 501334501

WASHER

$

$

Not available

52

Husqvarna 501334301

PLATE 23958

$

$

Not available

8

Husqvarna 501331001

ROD 63033

$

$

Not available

30

Husqvarna 501332501

WASHER 1540-118

$

$

Not available

7

Husqvarna 501330901

TUBE 65516

$

$

Not available

50

Husqvarna 501334101

NUT

$

$

Not available

NOT IN LIST

Husqvarna 501335201

NEEDS DESCRIPTION

$

$

Currently unavailable

56

Husqvarna 501334701

PIN 43349

$

$

Not available

57

Husqvarna 501334801

HUB CAP 44074

$

$

Not available

20

Husqvarna 872110508

BOLT CRT

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 501330801

ROD 46046

$

$

Not available

42

Husqvarna 501333401

SPACER 46053

$

$

Not available

59

Husqvarna 731232001

Nut

$6.49

$

In Stock, only 2 left!

0

14

Husqvarna 501331601

GRIP 731-0869

$

$

Not available

53

Husqvarna 501334401

BRACKET 23130

$

$

Not available

18

Husqvarna 725237871

Hex Head Capscrew, M6 X 1.00 X 40MM

$5.99

$

Usually ships in 3-10 days

0

41

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 721618301

Split Pin

$

$

Not available

55

Husqvarna 501334601

BOLT 46071

$

$

Not available

12

Husqvarna 501331401

TIE WRAP 726-0178

$

$

Not available

25

Husqvarna 501332201

BOLT 47631

$

$

Not available

61

Husqvarna 501335101

BRACKET 24023

$

$

Not available

38

Husqvarna 501333101

WEAR PROTECTION

$14.99

$

Usually ships in 3-10 days

0

15

Husqvarna 501331701

PIN 46065

$

$

Not available

11

Husqvarna 501331301

SHAFT 46066

$

$

Not available

32

Husqvarna 501332701

NUT

$

$

Not available

28

Husqvarna 531008164

NEEDS DESCRIPTION

$

$

Currently unavailable

19

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

47

Husqvarna 501333801

BOLT 710-0305

$

$

Not available

1

Husqvarna 501330601

BRACKET 25645

$

$

Not available

49

Husqvarna 501334001

LINK 63034

$

$

Not available

43

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

35

Husqvarna 531002840

NUT

$1.99

$

Usually ships in 3-10 days

0

46

Husqvarna 501333701

BRACKET 25647

$

$

Not available

26

Husqvarna 501332301

BOLT 43350

$

$

Not available

21

Husqvarna 501332001

WASHER R19172410

$

$

Not available

40

Husqvarna 501333301

GRIP 46471

$

$

Not available

16

Husqvarna 501331801

GRIP 62561

$

$

Not available

34

Husqvarna 501332801

ROD 23856

$

$

Not available

29

Husqvarna 734117201

WASHER
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 501331501

SPRING R9466R

$

$

Not available

27

Husqvarna 501332401

NUT 712-0256

$

$

Not available

60

Husqvarna 501335001

BOLT 44071

$

$

Not available

48

Husqvarna 501333901

FRAME 24347

$

$

Not available
