543777-1120-E1 - Briggs & Stratton Vertical Engine Flywheel, Flywheel Fans, Rotating Screen Parts Diagram

Vertical Engine

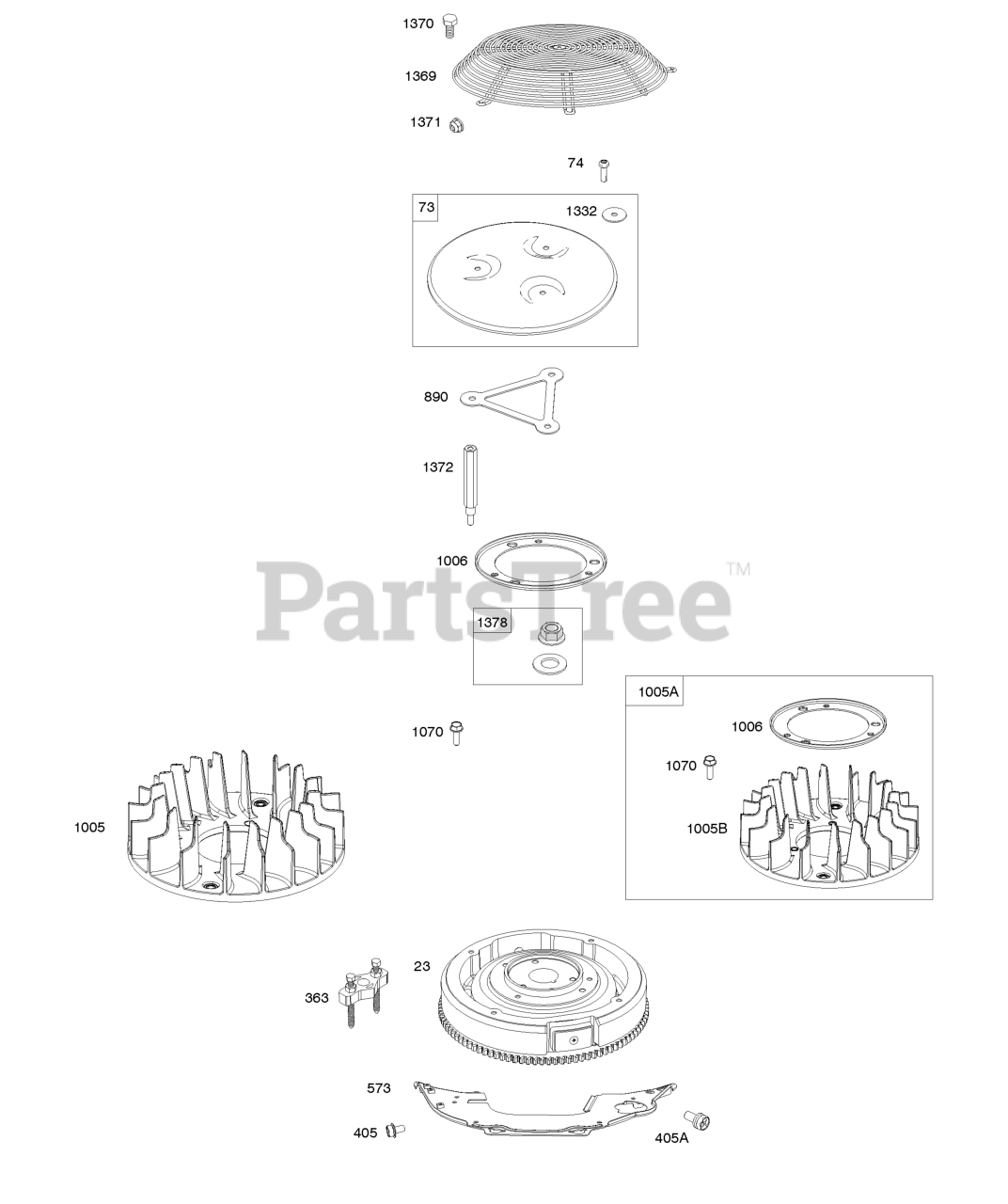

Flywheel, Flywheel Fans, Rotating Screen Parts Diagram

  • Title

23

Briggs & Stratton 844385

Flywheel

$315.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 841840

Screen-Rotating

$45.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 809947

Screw

Note: (Rotating Screen)

$4.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

405

Briggs & Stratton 841233

SCREW

Note: (Back Plate) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0

405A

Briggs & Stratton 841735

SCREW

Note: (Back Plate) (M6x14mm) Used After Code Date 14121500

$3.99

$

Usually ships in 2-12 days

0

573

Briggs & Stratton 846840

PLATE, Back

Note: (Without Weld Nuts)

$139.99

$

Usually ships in 2-12 days

0

890

Briggs & Stratton 809987

Bracket-Support

$14.99

$

In Stock, only 2 left!

0

1005A

Briggs & Stratton 847199

Fan-Flywheel

$60.99

$

Usually ships in 2-12 days

0

1005B

Briggs & Stratton 846995

Fan-Flywheel

Note: Used After Code Date 15070600

$54.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 847198

Retainer-Fan

$9.49

$

In Stock, only 2 left!

0

1070

Briggs & Stratton 807435

SCREW

Note: (Flywheel Fan) (M6x20mm)

$3.49

$

Usually ships in 2-12 days

0

1332

Briggs & Stratton 809948

Washer

Note: (Rotating Screen)

$5.49

$

In Stock, only 1 left!

0

1369

Briggs & Stratton 842858

Guard-Flywheel Fan

$81.99

$

In Stock, only 2 left!

0

1370

Briggs & Stratton 841233

SCREW

Note: (Flywheel Fan Guard) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0

1371

Briggs & Stratton 841537

Nut

Note: (Flywheel Fan Guard)

$9.99

$

In Stock, only 3 left!

0

1372

Briggs & Stratton 809946

Stud

Note: (Rotating Screen)

$17.99

$

In Stock, only 1 left!

0

1378

Briggs & Stratton 844795

Washer/Nut Set

Note: (Flywheel)

$15.99

$

Usually ships in 2-12 days

0
