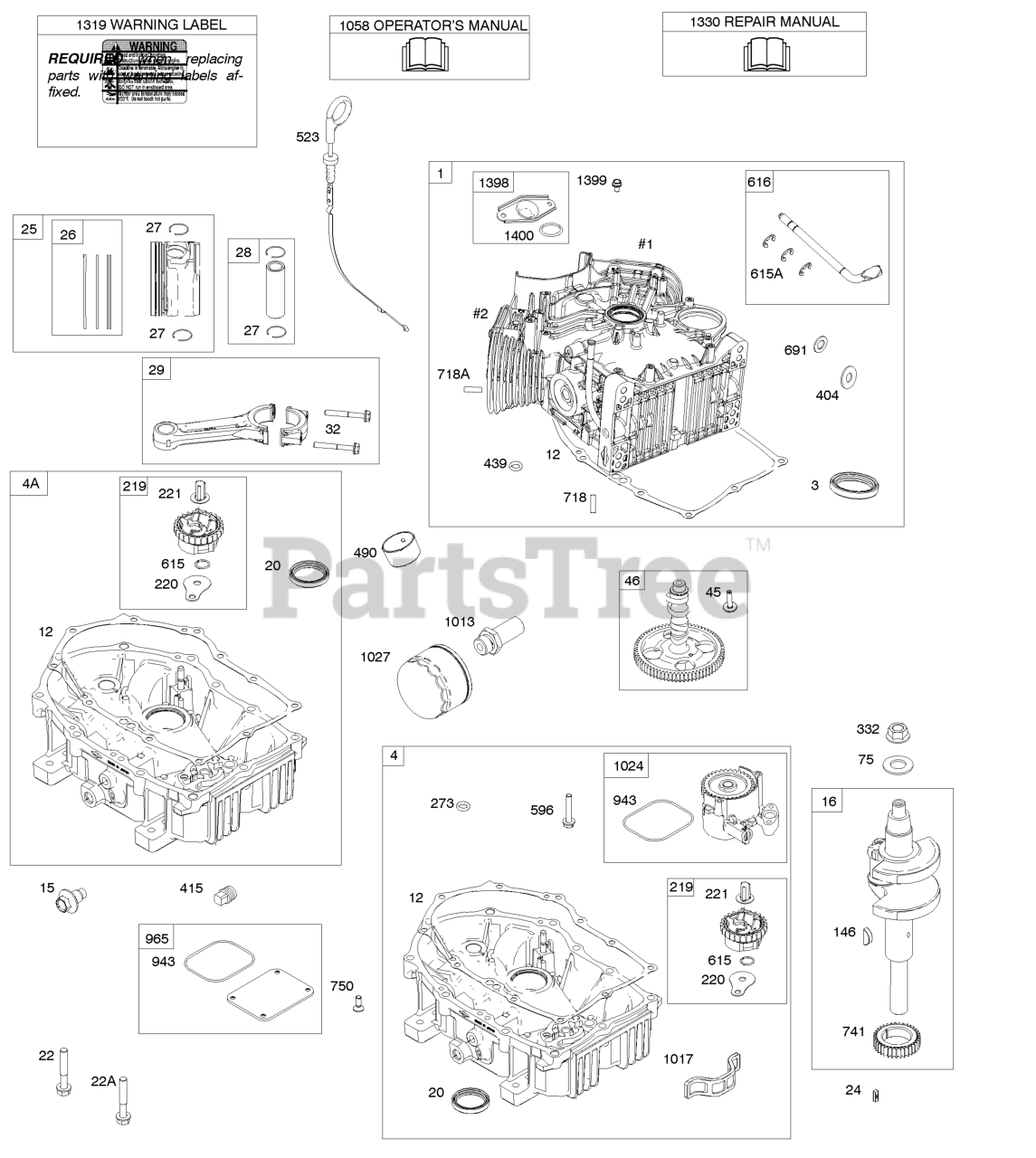

543577-0110-E1 - Briggs & Stratton Vertical Engine Crankshaft, Piston/Rings/Connecting Rod, Cylinder, Crankcase Cover/Sump, Camshaft Parts Diagram

Vertical Engine

Crankshaft, Piston/Rings/Connecting Rod, Cylinder, Crankcase Cover/Sump, Camshaft Parts Diagram

  • Title

1

Briggs & Stratton 842617

Cylinder Assembly
(Superseded to 845799)

$703.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 841596

SEAL, Oil

Note: (Magneto Side)

$17.99

$

In Stock, Qty 20+

0

4

Briggs & Stratton 843853

Sump-Engine
(Superseded to 845176)

Note: Used After Code Date 10032400

$385.99

$

Usually ships in 2-12 days

0

4A

Briggs & Stratton 842626

Sump-Engine
(Superseded to 845176)

Note: Used Before Code Date 10032500

$385.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 844107

Gasket-Crankcase

$

$

Not available

15

Briggs & Stratton 807392

Plug-Oil Drain

$6.49

$

In Stock, only 2 left!

0

16

Briggs & Stratton 842551

Crankshaft

$482.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 841596

SEAL, Oil

Note: (PTO Side)

$17.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 807362

SCREW

Note: (Crankcase Cover/Sump) (M8x50mm)

$3.49

$

In Stock, Qty 6

0

22A

Briggs & Stratton 690676

Screw

Note: (Crankcase Cover/Sump) (M8x63mm)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 809790

Piston Assembly

Note: (Standard)

$185.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 841931

Piston Assembly

Note: (.020" Oversize)

$192.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 809972

RING SET

Note: (Standard)

$75.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 841932

RING SET

Note: (.020" Oversize)

$

$

Not available

27

Briggs & Stratton 807351

LOCK, Piston Pin

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 807361

PIN, Piston

$26.99

$

In Stock, Qty 5

0

29

Briggs & Stratton 809275

Rod-Connecting

$69.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 807363

SCREW

Note: (Connecting Rod)

$7.49

$

In Stock, only 2 left!

0

45

Briggs & Stratton 809785

TAPPET, Valve

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 809879

Camshaft
(Superseded to 847381)

$288.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 842548

Washer
(Superseded to 844795)

Note: (Flywheel)

$15.99

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 691639

KEY, Woodruff

$4.49

$

In Stock, Qty 5

0

219

Briggs & Stratton 809426

Gear-Governor

$63.99

$

In Stock, Qty 10

0

220

Briggs & Stratton 841608

Washer

Note: (Governor Gear)

$12.99

$

Usually ships in 2-12 days

0

221

Briggs & Stratton 841026

CUP, Governor

$11.99

$

In Stock, only 1 left!

0

273

Briggs & Stratton 842538

Seal-O Ring

Note: (Oil Pump)

$14.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 842222

Nut
(Superseded to 844795)

Note: (Flywheel)

$15.99

$

Usually ships in 2-12 days

0

404

Briggs & Stratton 809436

Washer

Note: (Governor Crank)

$5.99

$

Usually ships in 2-12 days

0

415

Briggs & Stratton 794903

PLUG

Note: (Oil Pressure Switch)

$5.49

$

Usually ships in 2-12 days

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$5.99

$

In Stock, Qty 20+

0

490

Briggs & Stratton 843433

Bearing-Magneto Side

$391.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 842542

Dipstick

$29.99

$

In Stock, only 4 left!

0

596

Briggs & Stratton 807385

Screw

Note: (Oil Pump)

$3.99

$

Usually ships in 2-12 days

0

615

Briggs & Stratton 698290

RETAINER, Governor Shaft

Note: (Crankcase Cover/Sump)

$4.49

$

In Stock, Qty 9

0

615A

Briggs & Stratton 809533

Retainer-Governor Shaft

Note: (Cylinder)

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 844180

Crank-Governor

$35.99

$

Usually ships in 2-12 days

0

691

Briggs & Stratton 809287

Seal-Governor Shaft

$

$

Not available

718

Briggs & Stratton 690959

PIN, Locating

Note: (Cylinder)

$6.99

$

In Stock, only 1 left!

0

718A

Briggs & Stratton 809508

PIN, Locating

Note: (Cylinder Head)

$5.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 809432

GEAR, Timing

$42.99

$

Usually ships in 2-12 days

0

750

Briggs & Stratton 842537

Screw

Note: (Oil Pump Cover)

$10.99

$

Usually ships in 2-12 days

0

943

Briggs & Stratton 842538

Seal-O Ring

Note: (Oil Pump Cover)

$14.99

$

Usually ships in 2-12 days

0

965

Briggs & Stratton 842536

Cover-Oil Pump

$17.99

$

Usually ships in 2-12 days

0

1013

Briggs & Stratton 841602

NIPPLE, Oil Filter

$55.99

$

Usually ships in 2-12 days

0

1017

Briggs & Stratton 842535

Screen-Oil Pump

$16.99

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 842539

Pump-Oil
(Superseded to 845176)

$385.99

$

Usually ships in 2-12 days

0

1027

Briggs & Stratton 842921

Filter-Oil

$14.99

$

In Stock, Qty 20+

0

1058

Briggs & Stratton 279768TRI

Operator's Manual

$

$

Not available

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 272144

Repair Manual

$48.99

$

In Stock, only 3 left!

0

1398

Briggs & Stratton 842191

Cover-Fuel Pump

$12.99

$

Usually ships in 2-12 days

0

1399

Briggs & Stratton 690932

Screw

Note: (Fuel Pump Cover)

$3.99

$

Usually ships in 2-12 days

0

1400

Briggs & Stratton 809894

SEAL, O-Ring

Note: (Fuel Pump Cover)

$9.49

$

In Stock, only 1 left!

0
