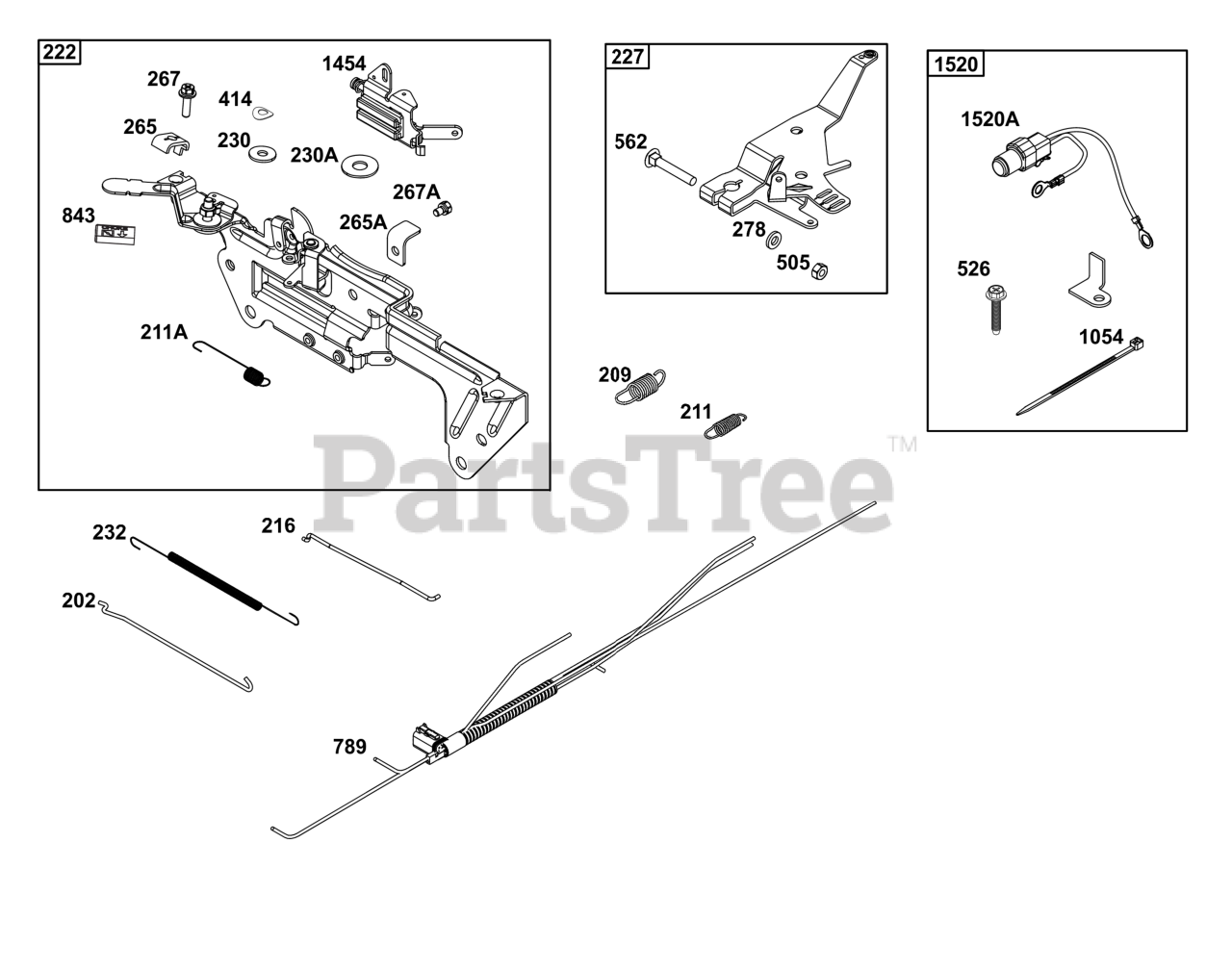

543477-3303-J1 - Briggs & Stratton Horizontal Engine Controls Group Parts Diagram

Horizontal Engine

Controls Group Parts Diagram

  • Title
202

Briggs & Stratton 841322

LINK, Mechanical Governor

$9.99

$

In Stock, only 2 left!

0

209

Briggs & Stratton 809874

SPRING, Governor

$8.49

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 843625

SPRING, Governed Idle

$12.99

$

Usually ships in 2-12 days

0

211A

Briggs & Stratton 690707

SPRING, Governed Idle

$7.49

$

In Stock, Qty 5

0

216

$10.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 841492

BRACKET, Control

$159.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 809984

LEVER, Governor Control

$26.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 845498

WASHER

Note: (Control Bracket)

$3.99

$

Usually ships in 2-12 days

0

230A

Briggs & Stratton 690260

WASHER

Note: (Control Bracket)

$8.99

$

In Stock, only 2 left!

0

232

Briggs & Stratton 690545

SPRING/LINK, Governor

$

$

Not available

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

265A

Briggs & Stratton 841673

CLAMP, Casing

$13.99

$

Usually ships in 2-12 days

0

267

Briggs & Stratton 841552

SCREW

Note: (Casing Clamp)

$3.49

$

In Stock, only 1 left!

0

267A

Briggs & Stratton 841552

SCREW

Note: (Casing Clamp)

$3.49

$

In Stock, only 1 left!

0

278

Briggs & Stratton 842122

WASHER

Note: (Governor Control Lever)

$5.49

$

In Stock, only 1 left!

0

414

Briggs & Stratton 690344

WASHER

Note: (Bell Crank)

$12.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 844752

NUT

Note: (Governor Control Lever)

$3.49

$

Usually ships in 2-12 days

0

$3.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 843344

BOLT

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 846951

HARNESS, Wiring

$72.99

$

Usually ships in 2-12 days

0

843

Briggs & Stratton 809672

SLEEVE, Lever

$4.49

$

In Stock, only 1 left!

0

1054

$4.49

$

Usually ships in 2-12 days

0

1454

Briggs & Stratton 845807

SLIDER, Governor

$16.99

$

In Stock, only 1 left!

0

1520

$54.99

$

Usually ships in 2-12 days

0

1520A

$37.99

$

Usually ships in 2-12 days

0
