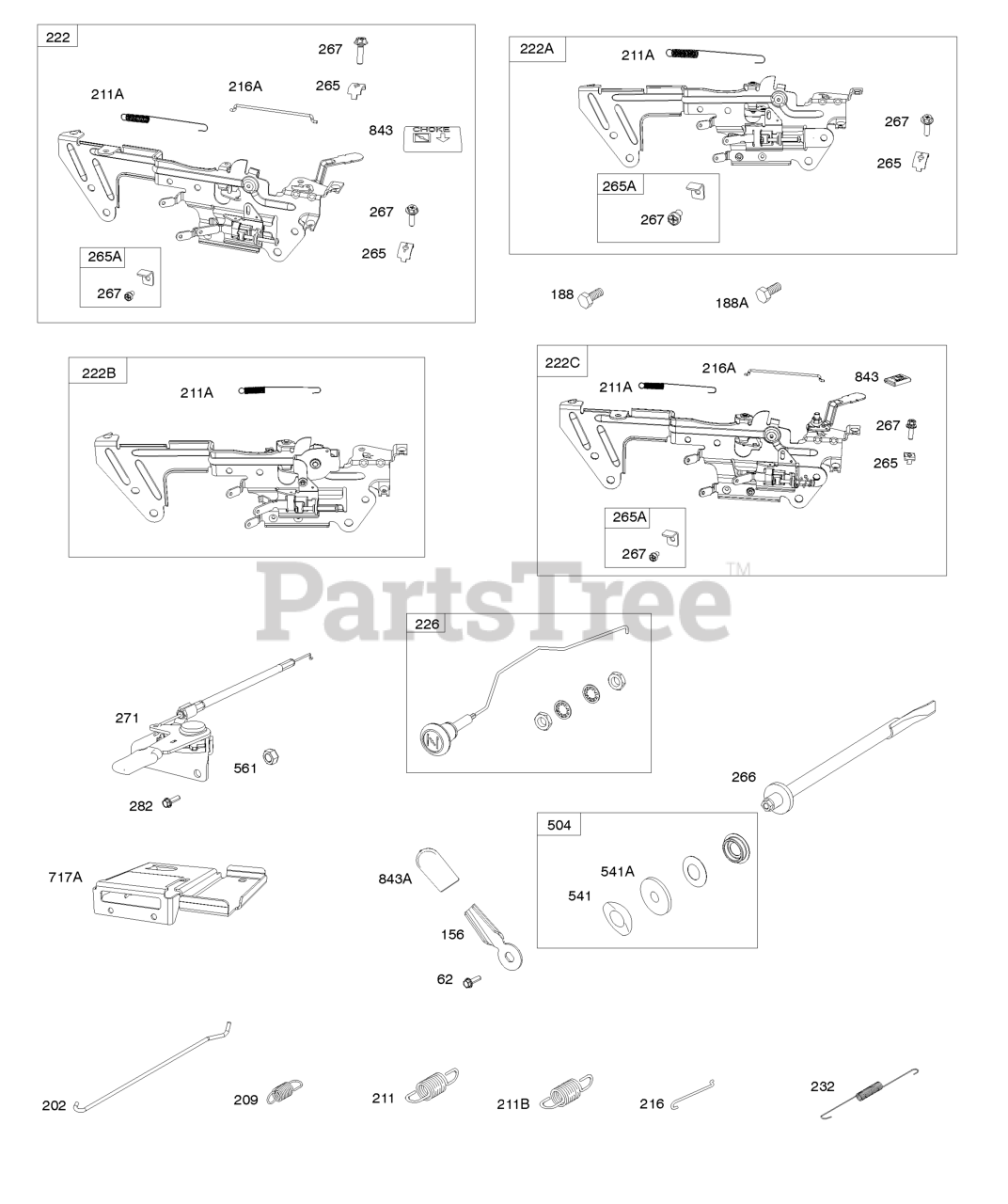

543477-0175-G1 - Briggs & Stratton Horizontal Engine Control Brackets, Links, Springs Parts Diagram

Horizontal Engine

Control Brackets, Links, Springs Parts Diagram

  • Title
62

Briggs & Stratton 841233

SCREW

Note: (Speed Adjustor Lever) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0

156

Briggs & Stratton 841522

Lever-Speed Adjuster

$30.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 841233

SCREW

Note: (Control Bracket) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0

188A

Briggs & Stratton 692062

Screw

Note: (Control Bracket) (M6x18mm)

$3.49

$

In Stock, Qty 20+

0

202

Briggs & Stratton 841322

Link-Mechanical Governor

$9.99

$

In Stock, only 2 left!

0

209

Briggs & Stratton 841500

Spring-Governor

Note: (Purple)

$9.49

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 809875

Spring-Governed Idle

Note: (White)

$

$

Not available

211A

Briggs & Stratton 690707

Spring-Governed Idle

Note: (Control Bracket) (White)

$7.49

$

In Stock, Qty 5

0

216

$10.99

$

Usually ships in 2-12 days

0

216A

Briggs & Stratton 841671

Link-Choke

Note: (Control Bracket)

$

$

Not available

222

Briggs & Stratton 841492

Bracket-Control

$159.99

$

Usually ships in 2-12 days

0

222A

Briggs & Stratton 841528

Bracket-Control

$159.99

$

Usually ships in 2-12 days

0

222B

Briggs & Stratton 841527

Bracket-Control

$137.99

$

Usually ships in 2-12 days

0

226

$57.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 690545

Spring-Governor Link

$

$

Not available

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

265A

$13.99

$

Usually ships in 2-12 days

0

266

Briggs & Stratton 841521

Control-Throttle

$72.99

$

Usually ships in 2-12 days

0

267

Briggs & Stratton 841552

SCREW

Note: (Casing Clamp) (M5x20mm)

$3.49

$

In Stock, only 1 left!

0

271

Briggs & Stratton 692541

Lever-Control

$39.99

$

In Stock, Qty 18

0

282

Briggs & Stratton 841552

SCREW

Note: (Control Lever) (M5x20mm)

$3.49

$

In Stock, only 1 left!

0

504

Briggs & Stratton 846156

Washer Set-Friction

Note: (Throttle Control)

$32.99

$

Usually ships in 2-12 days

0

541

Briggs & Stratton 841526

Washer

Note: (Speed Adjuster Lever) (Wave Washer)

$17.99

$

Usually ships in 2-12 days

0

541A

Briggs & Stratton 841525

Washer

Note: (Speed Adjuster Lever) (Flat Washer)

$5.49

$

Usually ships in 2-12 days

0

561

Briggs & Stratton 690713

Nut
(Superseded to 806447)

Note: (Control Lever)

$

$

Not available

717A

Briggs & Stratton 842730

Bracket-Air Cleaner

$38.99

$

Usually ships in 2-12 days

0

843

Briggs & Stratton 809672

Sleeve-Lever

Note: (Control Bracket)

$4.49

$

In Stock, only 1 left!

0

843A

Briggs & Stratton 842745

Sleeve-Lever

Note: (Speed Adjuster Lever)

$6.49

$

Usually ships in 2-12 days

0
