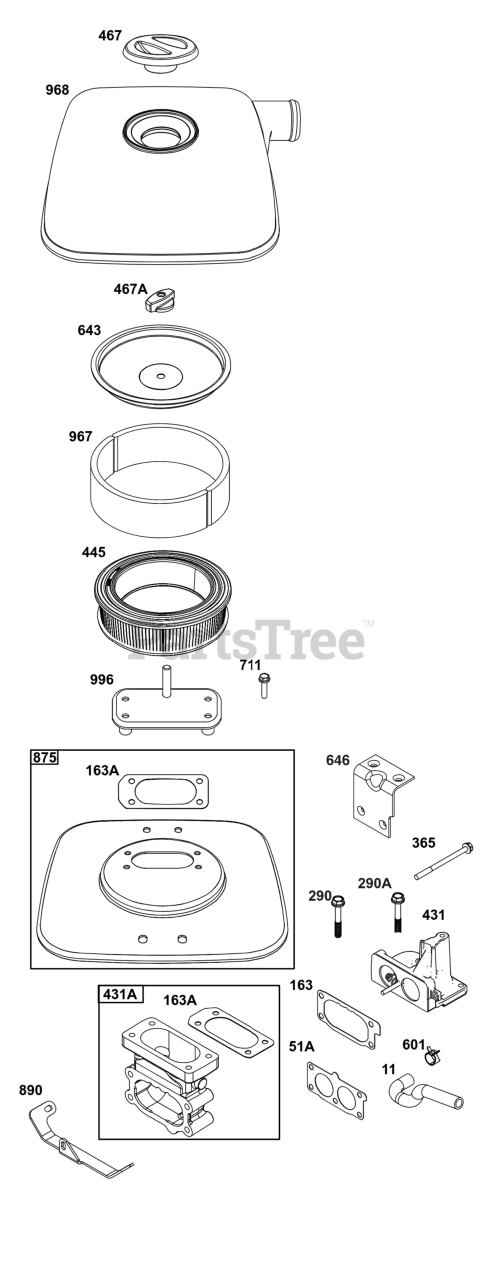

543477-0090-J1 - Briggs & Stratton Horizontal Engine Air Cleaner Group Parts Diagram

Horizontal Engine

Air Cleaner Group Parts Diagram

  • Title
11

Briggs & Stratton 809736

TUBE, Breather

$22.99

$

Usually ships in 2-12 days

0

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

163

Briggs & Stratton 807375

GASKET, Air Cleaner

$6.49

$

In Stock, Qty 20+

0

163A

Briggs & Stratton 843117

GASKET, Air Cleaner

$5.99

$

In Stock, only 1 left!

0

290

Briggs & Stratton 807421

SCREW

Note: (Intake Elbow)

$3.49

$

Usually ships in 2-12 days

0

290A

Briggs & Stratton 809911

SCREW

Note: (Intake Elbow)

$3.99

$

Usually ships in 2-12 days

0

365

SCREW

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

431

Briggs & Stratton 841539

ELBOW, Intake

$88.99

$

Usually ships in 2-12 days

0

431A

Briggs & Stratton 845505

MANIFOLD, Intake

$102.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 692519

FILTER, A/C Cartridge

$20.99

$

In Stock, Qty 20+

0

467

Briggs & Stratton 846008

KNOB, Air Cleaner Cover

$16.99

$

Usually ships in 2-12 days

0

467A

Briggs & Stratton 846007

KNOB, Air Cleaner Cover
(Superseded to 846432)

$8.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 844405

CLAMP, Hose

Note: Breather

$3.99

$

Usually ships in 2-12 days

0

643

Briggs & Stratton 844932

RETAINER, Air Cleaner

$22.99

$

In Stock, Qty 7

0

646

Briggs & Stratton 841849

BRACE, Air Cleanr

$13.99

$

Usually ships in 2-12 days

0

711

Briggs & Stratton 807385

SCREW

Note: (Carburetor Shield)

$3.99

$

Usually ships in 2-12 days

0

875

Briggs & Stratton 843118

BASE, Air Cleaner

$72.99

$

Usually ships in 2-12 days

0

890

Briggs & Stratton 841614

BRACKET, Support

$23.99

$

Usually ships in 2-12 days

0

967

Briggs & Stratton 692520

FILTER, Pre Cleaner

$6.49

$

Usually ships in 2-12 days

0

968

Briggs & Stratton 841847

COVER, Air Cleaner

$88.99

$

Usually ships in 2-12 days

0

996

Briggs & Stratton 846006

SHIELD, Carburetor

$36.99

$

Usually ships in 2-12 days

0
