543277-0004-E1 - Briggs & Stratton Horizontal Engine Crankshaft, Piston/Rings/Connecting Rod, Oil Coolers Parts Diagram

Horizontal Engine

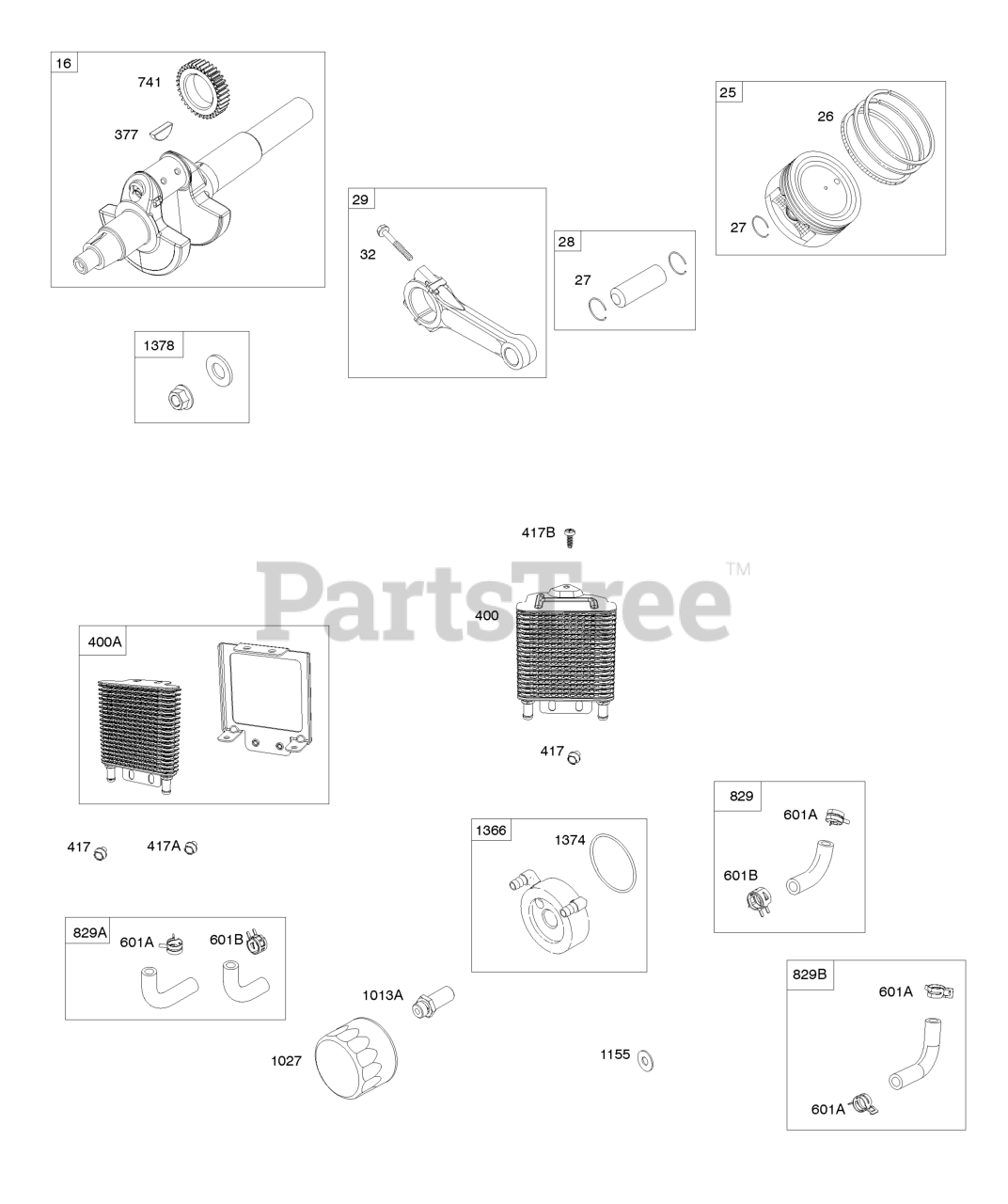

Crankshaft, Piston/Rings/Connecting Rod, Oil Coolers Parts Diagram

  • Title

16

Briggs & Stratton 843288

Crankshaft
(Superseded to 848301)

Note: Used After Code Date 06083100

$434.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 809790

Piston Assembly

Note: (Standard)

$185.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 841931

Piston Assembly

Note: (.020" Oversize)

$192.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 809972

RING SET

Note: (Standard)

$75.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 841932

RING SET

Note: (.020" Oversize)

$

$

Not available

27

Briggs & Stratton 807351

LOCK, Piston Pin

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 807361

PIN, Piston

$26.99

$

In Stock, Qty 5

0

29

Briggs & Stratton 809275

Rod-Connecting

$69.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 807363

SCREW

Note: (Connecting Rod)

$7.49

$

In Stock, only 2 left!

0

377

Briggs & Stratton 691639

KEY, Woodruff

$4.49

$

In Stock, Qty 5

0

400

Briggs & Stratton 846249

COOLER, Oil

Note: Used After Code Date 14052200

$83.99

$

Usually ships in 2-12 days

0

400A

Briggs & Stratton 846489

Cooler-Oil

Note: Used Before Code Date 14052300

$154.99

$

Usually ships in 2-12 days

0

417

Briggs & Stratton 841233

SCREW

Note: (Oil Cooler) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0

417A

Briggs & Stratton 843345

Screw

Note: (Oil Cooler) (M6x8mm) Used Before Code Date 13072700

$5.99

$

Usually ships in 2-12 days

0

417B

Briggs & Stratton 846250

SCREW

Note: (Oil Cooler) (M6x16mm)

$4.99

$

Usually ships in 2-12 days

0

601A

Briggs & Stratton 841597

CLAMP, Hose

Note: (Oil Cooler Hose)

$4.49

$

In Stock, only 3 left!

0

601B

Briggs & Stratton 845209

CLAMP, Hose

Note: (Oil Cooler Hose)

$4.49

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 809432

GEAR, Timing

$42.99

$

Usually ships in 2-12 days

0

829A

Briggs & Stratton 846155

Hose-Oil Cooler

Note: Used Before Code Date 14052300

$52.99

$

In Stock, only 2 left!

0

1013A

Briggs & Stratton 841602

NIPPLE, Oil Filter

Note: (Oil Cooler)

$55.99

$

Usually ships in 2-12 days

0

1027

Briggs & Stratton 842921

Filter-Oil

$14.99

$

In Stock, Qty 20+

0

1155

Briggs & Stratton 806647

Washer

Note: (Oil Cooler) Used Before Code Date 13072700

$4.49

$

Usually ships in 2-12 days

0

1366

Briggs & Stratton 841510

DIVERTER, Oil Cooler

$87.99

$

Usually ships in 2-12 days

0

1374

Briggs & Stratton 841506

Seal-O Ring
(Superseded to 796863)

Note: (Oil Cooler Diverter)

$5.99

$

In Stock, Qty 20+

0

1378

Briggs & Stratton 844795

Washer/Nut Set

Note: (Flywheel)

$15.99

$

Usually ships in 2-12 days

0
