543 XPG - Husqvarna Chainsaw (2013-03) CARBURETOR DETAILS Parts Diagram

Chainsaw

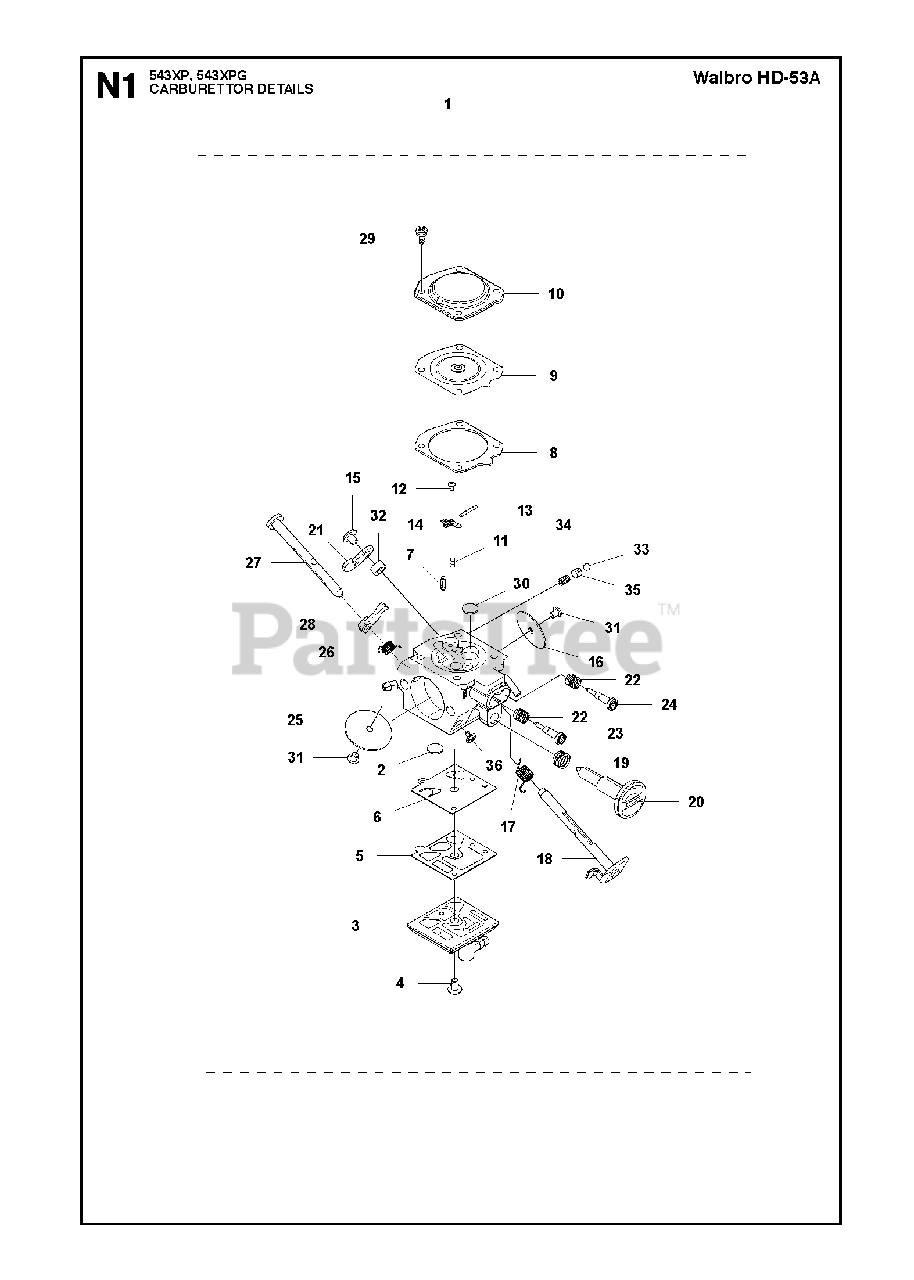

CARBURETOR DETAILS Parts Diagram

  • Title

1

Husqvarna 580798301

CARBURETOR
(Superseded to 588848901)

Note: JAPAN

$113.99

$

Usually ships in 3-10 days

0

2

Husqvarna 520957001

SCREEN
(Superseded to 574012501)

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 579492101

COVER ASSEMBLY PUMP 21-3780

Note: . 1

$28.99

$

Usually ships in 3-10 days

0

4

Husqvarna 513301301

SCREW Z149181130

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 514242701

GASKET

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 514243001

95-75 DIAPHRAGM Z335081260

Note: . 1

$27.99

$

Usually ships in 3-10 days

0

7

Husqvarna 521085401

VALVE INLET

Note: . 1

$27.99

$

Usually ships in 3-10 days

0

8

Husqvarna 514242801

GASKET

Note: . 1

$5.99

$

Usually ships in 3-10 days

0

9

Husqvarna 579492201

DIAPHRAGM ASSEMBLY METERING 95

Note: . 1

$27.99

$

Usually ships in 3-10 days

0

10

Husqvarna 579492301

COVER METERING DIAPHRAGM 21-48

Note: . 1

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 516980001

SPRING

Note: . 1

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 520977301

SCREW

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 520977401

PIN

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 514242901

LEVER

Note: . 1

$8.99

$

Usually ships in 3-10 days

0

15

Husqvarna 520759801

SCREW

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 579492901

VALVE THROTTLE 34-314

Note: . 1

$9.99

$

Usually ships in 3-10 days

0

17

Husqvarna 579493001

SPRING 98-3706

Note: . 1

$24.99

$

Usually ships in 3-10 days

0

18

Husqvarna 580242301

SHAFT ASSY

Note: . 1

$

$

Not available

19

Husqvarna 521066301

SPRING

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 513792801

SCREW Z285082310

Note: . 1

$27.99

$

Usually ships in 3-10 days

0

21

Husqvarna 579492601

LEVER THROTTLE 18-3551

Note: . 1

$30.99

$

Usually ships in 3-10 days

0

22

Husqvarna 520977401

PIN

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 579493501

NEEDLE HIGH SPEED

Note: . 1

$

$

Not available

24

Husqvarna 579492401

NEEDLE IDLE

Note: . 1

$

$

Not available

25

Husqvarna 579493101

VALVE CHOKE 34-3504

Note: . 1

$15.99

$

Usually ships in 3-10 days

0

26

Husqvarna 581298001

SPRING 98-3718

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

27

Husqvarna 581298101

SHAFT ASSY CHOKE 22-4356

Note: . 1

$34.99

$

In Stock, only 1 left!

0

28

Husqvarna 581298201

LEVER FAST IDEL 18-3566

Note: . 1

$24.99

$

Usually ships in 3-10 days

0

29

Husqvarna 520978801

SCREW ASSY

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 516342901

PLUG

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

31

Husqvarna 579492801

SCREW 96-3240

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 580242401

SPACER

Note: . 1

$

$

Not available

33

Husqvarna 580242701

BALL

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

34

Husqvarna 505057901

SPRING

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 580242801

PISTON ASSY

Note: . 1

$13.99

$

Usually ships in 3-10 days

0

36

Husqvarna 581298301

SCREW

Note: . 1

$

$

Not available
