543 XP - Husqvarna Chainsaw (2013-03) IGNITION SYSTEM Parts Diagram

Chainsaw

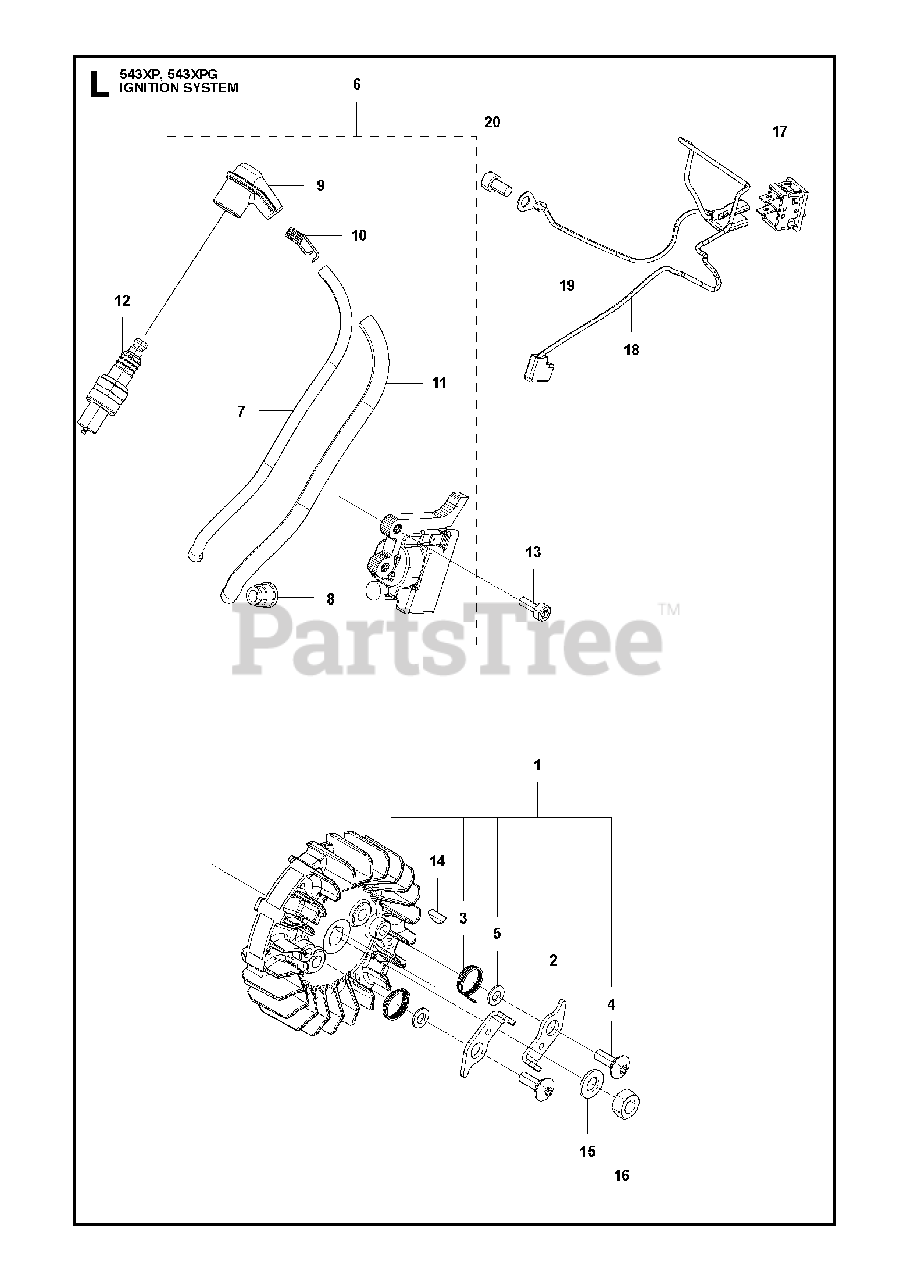

IGNITION SYSTEM Parts Diagram

  • Title

1

Husqvarna 576982301

FLYWHEEL ASSY

Note: 543XP

$113.99

$

Usually ships in 3-10 days

0

2

Husqvarna 576982501

PAWL

Note: . 1

$5.99

$

Usually ships in 3-10 days

0

3

Husqvarna 514240901

SPRING

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 577823601

SCREW T27 XC23

Note: M5x12-T27. 1

$

$

Not available

5

Husqvarna 506614401

WASHER 5X10X10

Note: . 1

$3.49

$

In Stock, Qty 5

0

6

Husqvarna 576982601

IGNITION MODULE ASSY
(Superseded to 588849001)

$85.99

$

Usually ships in 3-10 days

0

7

Husqvarna 577335501

CODE XC23

Note: . 6

$

$

Not available

8

Husqvarna 505042801

CAP
(Superseded to 516744001)

Note: . 6

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 512444001

CAP

Note: . 6

$7.49

$

In Stock, only 4 left!

0

10

Husqvarna 504118201

SPRING
(Superseded to 506655201)

Note: . 6

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 577335601

TUBE XC23

Note: . 6

$

$

Not available

12

Husqvarna 521233401

PLUG CMR7H
(Superseded to 506615101)

Note: NGK CMR7H

$4.46

$

Usually ships in 3-10 days

0

13

Husqvarna 506745701

BOLT

Note: M4x16-T27

$3.99

$

In Stock, Qty 18

0

14

Husqvarna 506689401

KEY

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 510488101

WASHER

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 514239201

NUT Z335043231

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 576261101

SWITCH A
(Superseded to 586246801)

$17.99

$

In Stock, only 4 left!

0

18

Husqvarna 576983001

CORD

$6.99

$

Usually ships in 3-10 days

0

19

Husqvarna 513766201

CORD

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 529268101

BOLT

Note: M5x9-T27

$6.49

$

Usually ships in 3-10 days

0
