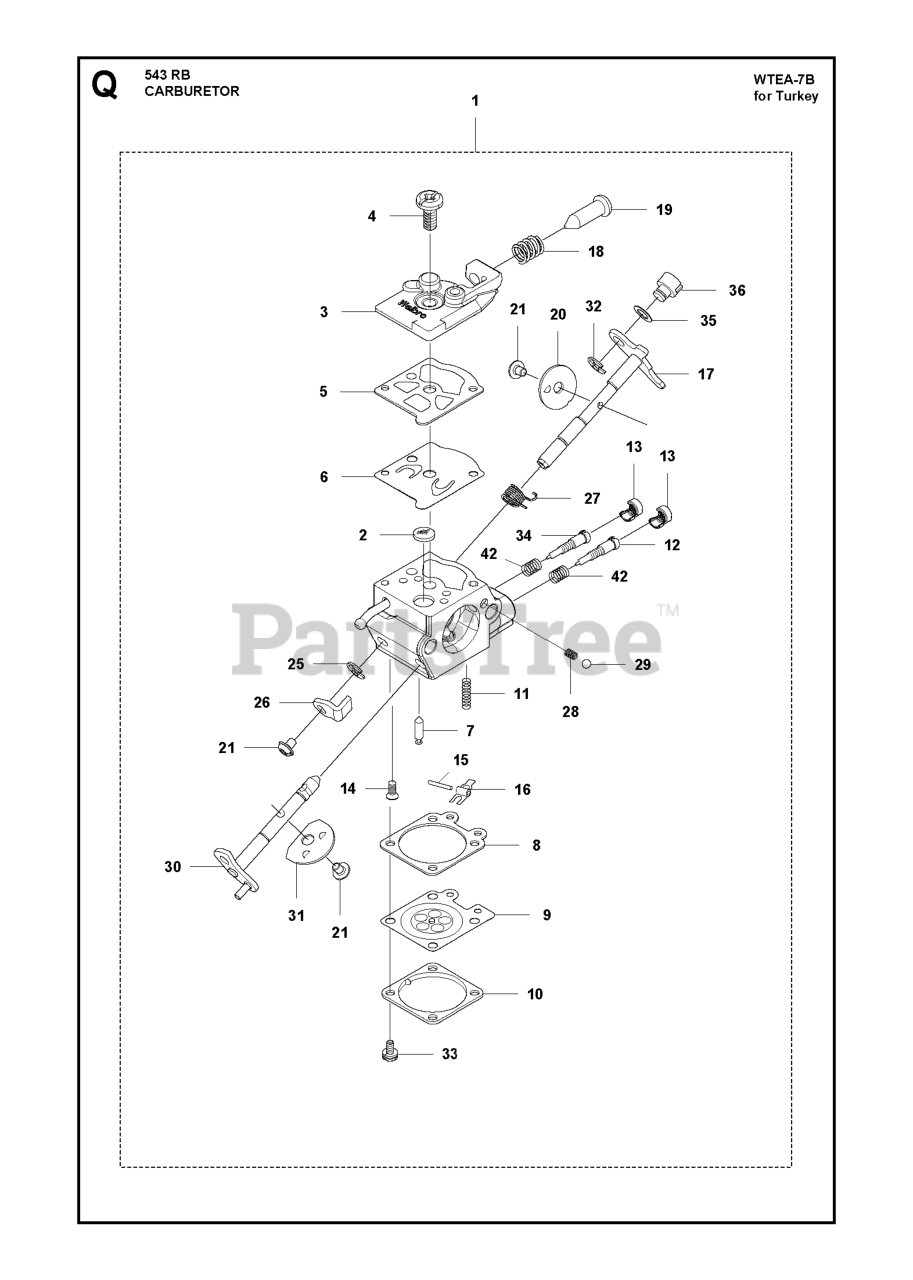

543 RB - Husqvarna Brush Cutter CARBURETOR Parts Diagram

Brush Cutter

CARBURETOR Parts Diagram

  • Title
10

Husqvarna 514189201

COVER

Note: For Turkey

$10.99

$

Usually ships in 3-10 days

0

17

Husqvarna 578895501

SHAFT ASSY THROTTLE

Note: For Turkey

$14.99

$

Usually ships in 3-10 days

0

5

Husqvarna 520954801

GASKET

Note: For Turkey

$13.99

$

Usually ships in 3-10 days

0

28

Husqvarna 514243301

CHOKE SPRING

Note: For Turkey

$10.99

$

Usually ships in 3-10 days

0

15

Husqvarna 520977401

PIN

Note: For Turkey

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 577815701

SCREW, IDLE

Note: For Turkey

$10.99

$

In Stock, only 1 left!

0

35

Husqvarna 516524201

WASHER

Note: For Turkey

$3.99

$

In Stock, only 2 left!

0

8

Husqvarna 516972101

GASKET

Note: For Turkey

$7.49

$

Usually ships in 3-10 days

0

2

Husqvarna 520957001

SCREEN
(Superseded to 574012501)

Note: For Turkey

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 578912801

SPRING

Note: For Turkey

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 577815501

SPRING

Note: For Turkey

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 578913101

NEEDLE H

Note: For Turkey

$20.99

$

Usually ships in 3-10 days

0

11

Husqvarna 578895401

SPRING

Note: For Turkey

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 506738601

RING

Note: For Turkey

$2.49

$

Usually ships in 3-10 days

0

18

Husqvarna 513593201

SPRING

Note: For Turkey

$6.49

$

Usually ships in 3-10 days

0

34

Husqvarna 578912901

NEEDLE L

Note: For Turkey

$18.99

$

Usually ships in 3-10 days

0

13

Husqvarna 578913001

CAP LIMITER

Note: For Turkey

$10.99

$

Usually ships in 3-10 days

0

26

Husqvarna 577815801

LEVER THROTTLE

Note: For Turkey

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 513400801

SWIVEL

Note: For Turkey

$27.99

$

Usually ships in 3-10 days

0

3

Husqvarna 577806901

COVER

Note: For Turkey

$13.84

$

Usually ships in 3-10 days

0

25

Husqvarna 505056501

E-RING

Note: For Turkey

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 520976301

SCREW

Note: For Turkey

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 514242601

BALL

Note: For Turkey

$8.99

$

Usually ships in 3-10 days

0

14

Husqvarna 577807101

SCREW

Note: For Turkey

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 521085401

VALVE INLET

Note: For Turkey

$27.99

$

Usually ships in 3-10 days

0

21

Husqvarna 520759801

SCREW

Note: For Turkey

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 577807001

DIAPHRAGM

Note: For Turkey

$17.99

$

Usually ships in 3-10 days

0

31

Husqvarna 579367101

VALVE CHOKE

Note: For Turkey

$

$

Not available

30

Husqvarna 577816401

SHAFT ASSY CHOKE

Note: For Turkey

$21.99

$

Usually ships in 3-10 days

0

33

Husqvarna 520978801

SCREW ASSY

Note: For Turkey

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 577807201

LEVER

Note: For Turkey

$2.49

$

Usually ships in 3-10 days

0

1

Husqvarna 577992806

Carburetors

Note: For Turkey

$113.99

$

Usually ships in 3-10 days

0

20

Husqvarna 514251901

VALVE, THROTTLE

Note: For Turkey

$9.99

$

Usually ships in 3-10 days

0

6

Husqvarna 520954901

DIAPHRAGM

Note: For Turkey

$12.99

$

Usually ships in 3-10 days

0
