542477-0008-J1 - Briggs & Stratton Horizontal Engine Cylinder Group Parts Diagram

Horizontal Engine

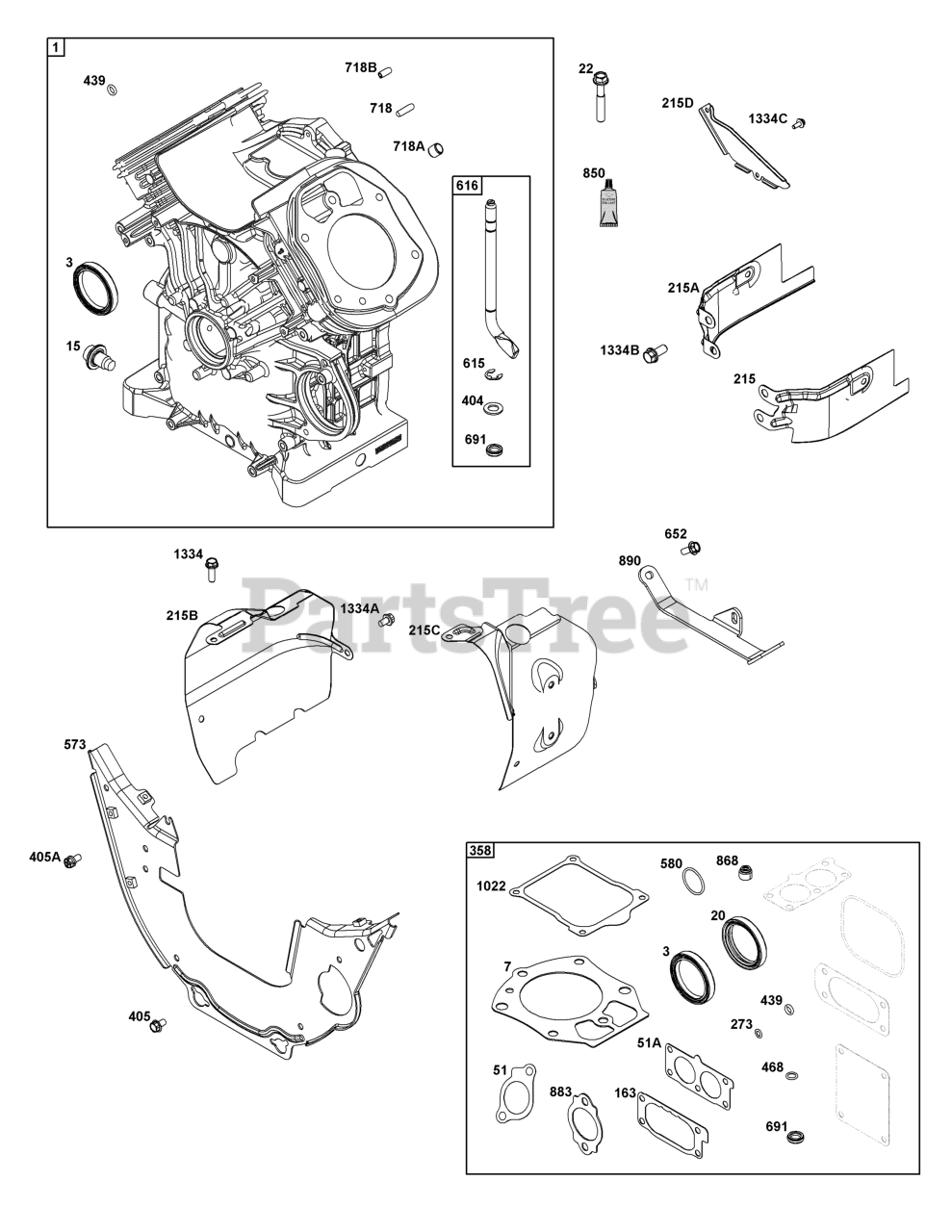

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 848363

CYLINDER ASSEMBLY

$624.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 841596

SEAL, Oil

Note: (Magneto Side)

$17.99

$

In Stock, Qty 20+

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

15

Briggs & Stratton 807392

PLUG, Oil Drain

$6.49

$

In Stock, only 2 left!

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

22

SCREW

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

215

Briggs & Stratton 809728

GUIDE, Air

$40.99

$

Usually ships in 2-12 days

0

215A

Briggs & Stratton 809737

GUIDE, Air

$35.99

$

Usually ships in 2-12 days

0

215B

Briggs & Stratton 809897

GUIDE, Air

$42.99

$

Usually ships in 2-12 days

0

215C

Briggs & Stratton 809738

GUIDE, Air

$42.99

$

Usually ships in 2-12 days

0

215D

Briggs & Stratton 809739

GUIDE, Air

$37.99

$

Usually ships in 2-12 days

0

273

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

358

GASKET SET, Engine

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

404

Briggs & Stratton 809436

WASHER

Note: (Governor Crank)

$5.99

$

Usually ships in 2-12 days

0

405

Briggs & Stratton 841233

SCREW

Note: (Back Plate) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0

405A

Briggs & Stratton 841735

SCREW

Note: (Back Plate) (M6x14mm)

$3.99

$

Usually ships in 2-12 days

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$5.99

$

In Stock, Qty 20+

0

468

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

573

Briggs & Stratton 846840

PLATE, Back

$139.99

$

Usually ships in 2-12 days

0

580

SEAL, O-Ring

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

615

Briggs & Stratton 809533

RETAINER, Governor Shaft

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 844180

CRANK, Governor

$35.99

$

Usually ships in 2-12 days

0

652

SCREW

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

691

Briggs & Stratton 809287

SEAL, Governor Shaft

$

$

Not available

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

718A

Briggs & Stratton 809508

PIN, Locating

$5.99

$

Usually ships in 2-12 days

0

718B

Briggs & Stratton 845925

PIN, Locating

$5.99

$

Usually ships in 2-12 days

0

850

SEALANT, Liquid

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

890

BRACKET, Support

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1334

Briggs & Stratton 807435

SCREW

Note: (Air Guide) (M6x20mm)

$3.49

$

Usually ships in 2-12 days

0

1334A

Briggs & Stratton 841233

SCREW

Note: (Air Guide) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0

1334B

Briggs & Stratton 692062

SCREW

Note: (Air Guide) (M8x14mm)

$3.49

$

In Stock, Qty 20+

0

1334C

Briggs & Stratton 690677

SCREW

Note: (Air Guide) (M4x12mm)

$3.99

$

In Stock, only 2 left!

0
