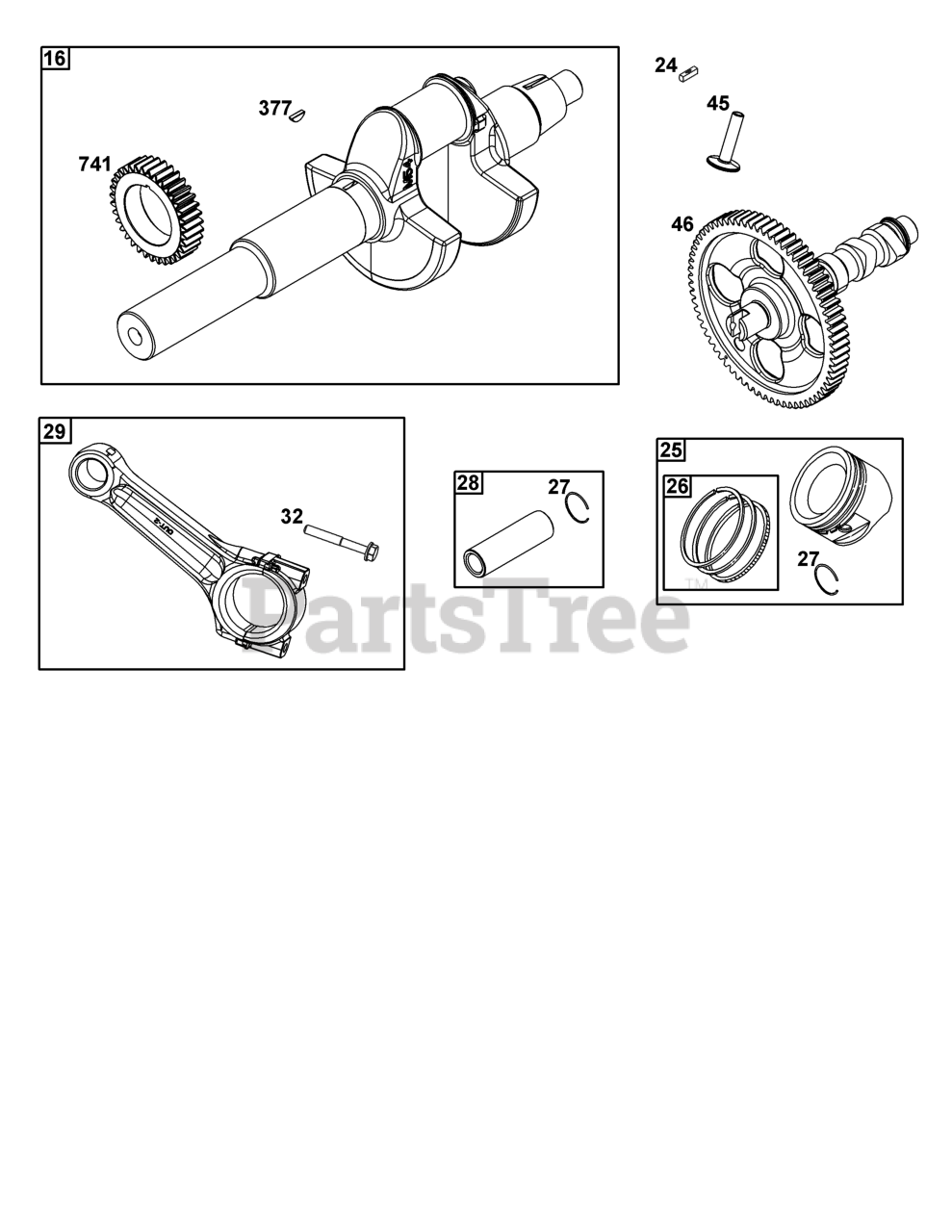

542477-0007-J1 - Briggs & Stratton Horizontal Engine Crankshaft Group Parts Diagram

Horizontal Engine

Crankshaft Group Parts Diagram

  • Title

16

Briggs & Stratton 848300

CRANKSHAFT

$502.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 796335

KEY, Flywheel

Note: (Steel)

$5.49

$

In Stock, Qty 20+

0

25

Briggs & Stratton 809790

PISTON ASSEMBLY

Note: (Standard)

$185.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 841931

PISTON ASSEMBLY

Note: (.020" Oversize)

$192.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 809972

SET, Ring

Note: (Standard)

$75.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 841932

SET, Ring

Note: (.020" Oversize)

$

$

Not available

27

Briggs & Stratton 807351

LOCK, Piston Pin

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 807361

PIN, Piston

$26.99

$

In Stock, Qty 5

0

29

Briggs & Stratton 809275

ROD, Connecting

$69.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 807363

SCREW

Note: (Connecting Rod)

$7.49

$

In Stock, only 2 left!

0

45

TAPPET, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

46

Briggs & Stratton 848393

CAMSHAFT

$254.99

$

Usually ships in 2-12 days

0

377

Briggs & Stratton 691639

KEY, Timing

$4.49

$

In Stock, Qty 5

0

741

Briggs & Stratton 809432

GEAR, Timing

$42.99

$

Usually ships in 2-12 days

0
