542 (590-542-150) - Cub Cadet Material Collection System att2 Blower Fabricated Deck Parts Diagram

Material Collection System

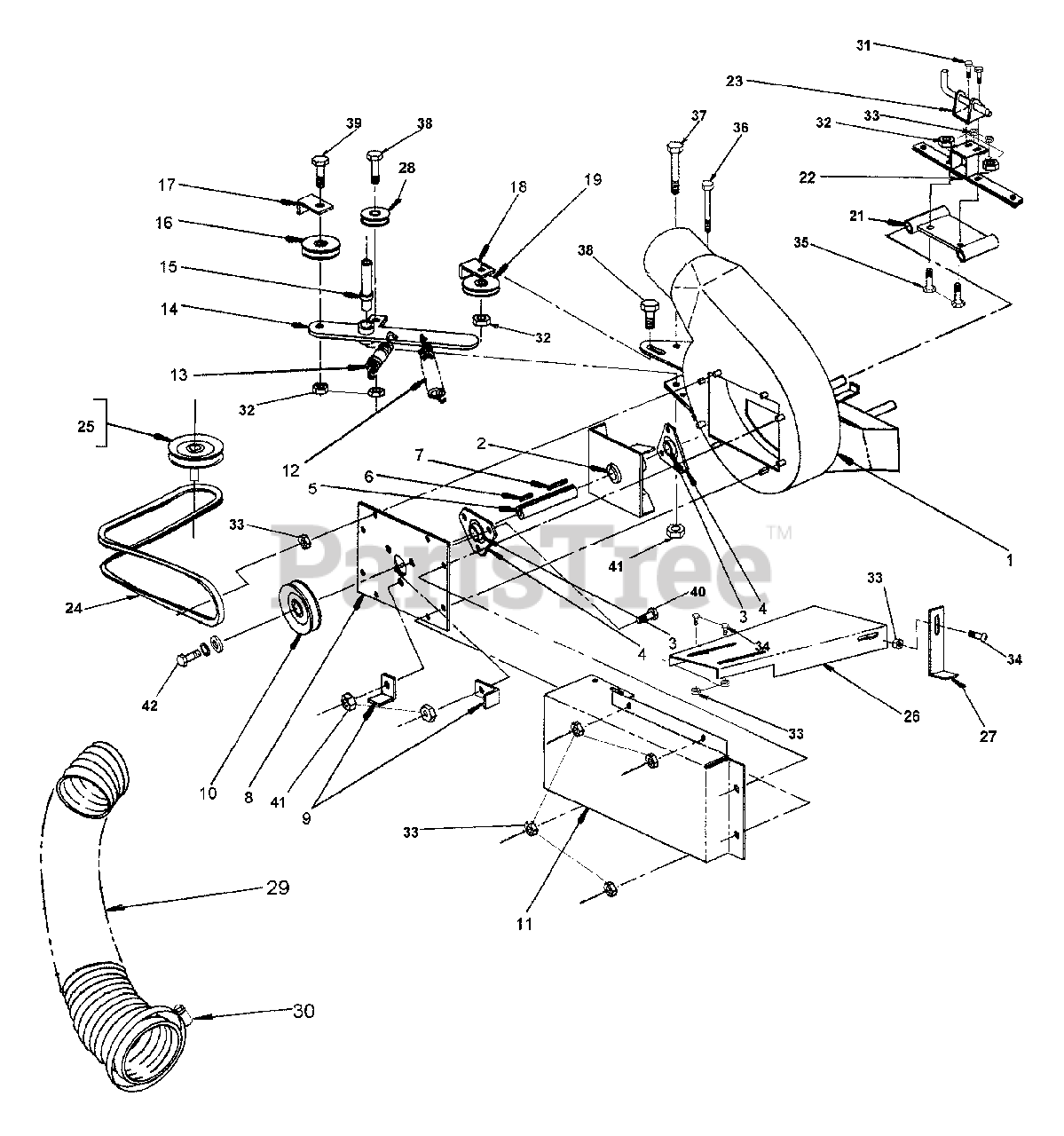

Blower Fabricated Deck Parts Diagram

  • Title

1

Cub Cadet TS-1983-MCS

Blower Housing

$

$

Not available

2

Cub Cadet TS-2235

Fan

$

$

Not available

3

Cub Cadet TS-3293

Bearing
(Superseded to TS-3293P)

$

$

Not available

4

Cub Cadet TS-4294

Flange, Bearing (set of 2)
(Superseded to TS-4294P)

$

$

Not available

5

Cub Cadet TS-5145

Fan Shaft

$

$

Not available

6

Cub Cadet TS-6327

1/4" x 3/4" key
(Superseded to 914-0114)

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet TS-7863

1/4" x 1 1/4" key
(Superseded to GW-9326)

$

$

Not available

8

Cub Cadet TS-8904

Back Canister Cover

$

$

Not available

9

Cub Cadet TS-9832

Fan Pulley Belt Bracket

$

$

Not available

10

Cub Cadet TS-10991

Fan Drive Pulley

$

$

Not available

11

Cub Cadet TS-11432

Blower Belt Cover

$

$

Not available

12

Cub Cadet TS-12006

7/8" x 6" Spring

$

$

Not available

13

Cub Cadet TS-13318

13/16" x 3 1/8" Spring

$

$

Not available

14

Cub Cadet TS-14667

Idler Arm

$

$

Not available

15

Cub Cadet TS-15432

Idler Arm Pivot

$

$

Not available

16

Cub Cadet TS-16888

Flat Idler Pulley

$

$

Not available

17

Cub Cadet TS-17103

Lower Pulley Bracket

$

$

Not available

18

Cub Cadet TS-18104

Upper Pulley Bracket

$

$

Not available

19

Cub Cadet TS-19188

V-Idler Pulley

$

$

Not available

21

Cub Cadet TS-21183

Lower Mounting Bracket

$

$

Not available

22

Cub Cadet TS-22333

Upper Mounting Bracket

$

$

Not available

23

Cub Cadet TS-23490

Sprig Latch

$

$

Not available

24

Cub Cadet TS-24A87

87" A-sec. Belt

$

$

Not available

25

Cub Cadet TS-25105

Drive Pulley
(Superseded to TS-25455)

$

$

Not available

26

Cub Cadet TS-29200

Belt Guard

$

$

Not available

27

Cub Cadet TS-27900

Belt Guard

$

$

Not available

28

Cub Cadet TS-28725

2.5" V-Idler Pulley

$

$

Not available

29

Cub Cadet TS-29644

43" Urethane Hose
(Superseded to TS-30043)

$

$

Not available

30

Cub Cadet TS-30407

Hose Clamp

$

$

Not available

31

1/4"-20x3/4" Hex Head Screw

1/4"-20x3/4" Hex Head Screw

Note: OBTAIN HARDWARE LOCALLY

$

$

Not available

32

3/8"-16 Serrated Flange Nut

3/8"-16 Serrated Flange Nut

Note: OBTAIN HARDWARE LOCALLY

$

$

Not available

33

1/4"-20 Serrated Flange Nut

1/4"-20 Serrated Flange Nut

Note: OBTAIN HARDWARE LOCALLY

$

$

Not available

34

1/4"-20x 1/2" Hex Head

1/4"-20x 1/2" Hex Head

Note: OBTAIN HARDWARE LOCALLY

$

$

Not available

35

3/8"-16 x 1" Carriage Bolt

3/8"-16 x 1" Carriage Bolt

Note: OBTAIN HARDWARE LOCALLY

$

$

Not available

36

1/4"-20 x 4 1/2" Hex Head

1/4"-20 x 4 1/2" Hex Head

Note: OBTAIN HARDWARE LOCALLY

$

$

Not available

37

3/8"-16 x 4 1/4" Hex Head

3/8"-16 x 4 1/4" Hex Head

Note: OBTAIN HARDWARE LOCALLY

$

$

Not available

38

3/8"-16 x 1 1/2" Hex Head

3/8"-16 x 1 1/2" Hex Head

Note: OBTAIN HARDWARE LOCALLY

$

$

Not available

39

3/8"-16 x 1 3/4" Hex Head

3/8"-16 x 1 3/4" Hex Head

Note: OBTAIN HARDWARE LOCALLY

$

$

Not available

40

5/16"-18 x 3/4" Hex Head

5/16"-18 x 3/4" Hex Head

Note: OBTAIN HARDWARE LOCALLY

$

$

Not available

41

5/16"-18 Serrated Flange Nut

5/16"-18 Serrated Flange Nut

Note: OBTAIN HARDWARE LOCALLY

$

$

Not available

42

5/16"-24 x 1" Hex Head

5/16"-24 x 1" Hex Head

Note: OBTAIN HARDWARE LOCALLY

$

$

Not available
