5418 F (554C765K100) - Cub Cadet Walk-Behind Mower (SN: 503791 & Above) Engine Electrical Parts Diagram

Walk-Behind Mower

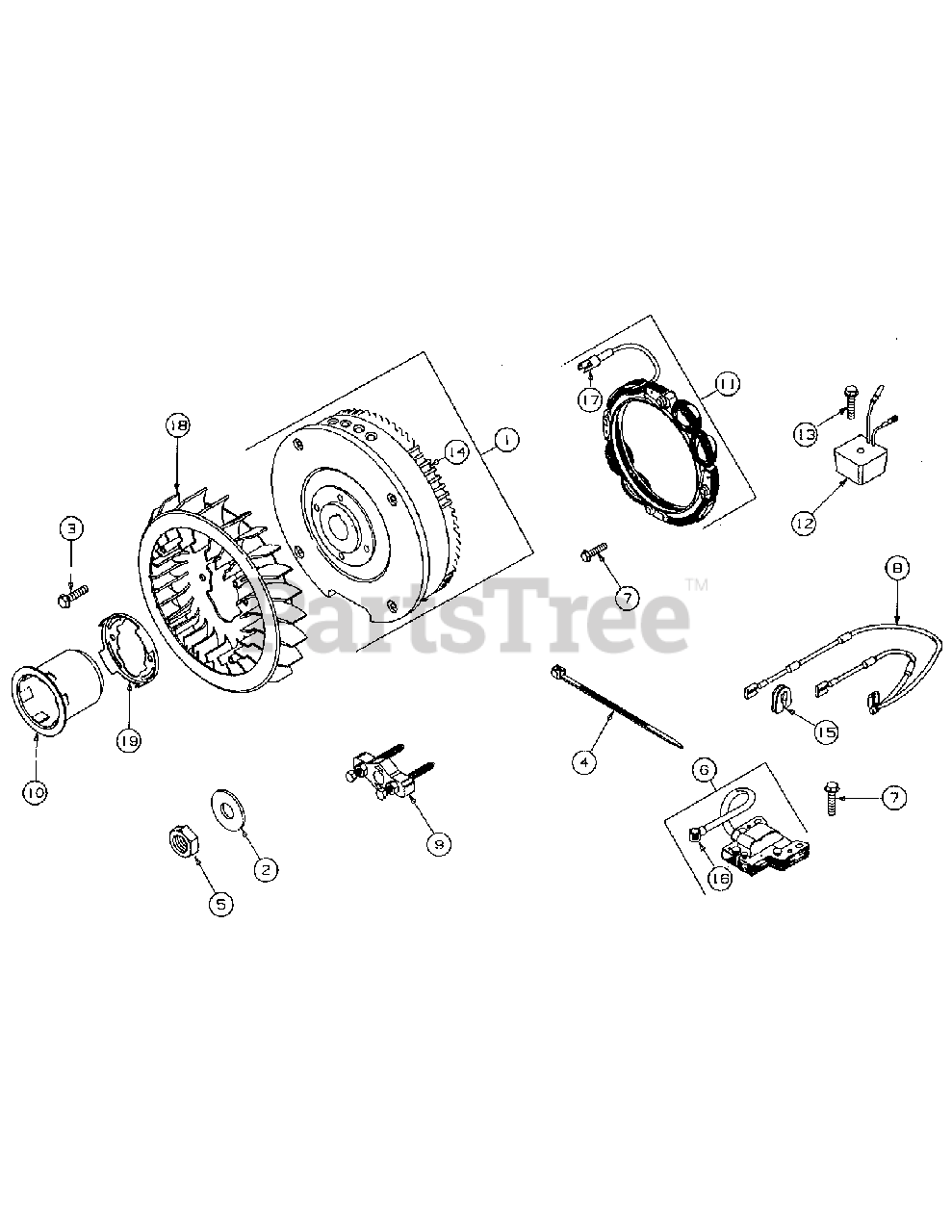

Engine Electrical Parts Diagram

  • Title

1

Cub Cadet BS-808132

Flywheel, Magneto

$

$

Not available

2

Cub Cadet BS-805007

Washer, Spring

$

$

Not available

3

Cub Cadet BS-93535

Screw, Fan Retainer

$

$

Not available

4

Cub Cadet BS-280275

Tie, Cable

$4.49

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-805021

Nut, Hex

$

$

Not available

6

Cub Cadet BS-492341

Armature, Magneto
(Superseded to BS-591459)

$53.99

$

In Stock, Qty 20+

0

7

Cub Cadet BS-805407

Screw, Mounting
(Superseded to BS-692066)

$3.49

$

In Stock, Qty 7

0

8

Cub Cadet BS-493792

Wire, Ground
(Superseded to BS-844547)

$17.99

$

In Stock, Qty 20+

0

9

Cub Cadet BS-19203

Puller, Flywheel

$23.99

$

In Stock, only 2 left!

0

10

Cub Cadet BS-805877

Hub, Starter

$

$

Not available

11

Cub Cadet BS-392595

Stator, Alternator
(Superseded to BS-592829)

$102.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-491546

Regulator, Alternator
(Superseded to BS-794360)

$64.99

$

In Stock, only 4 left!

0

13

Cub Cadet BS-805535

Screw, Hex Head

$

$

Not available

14

Cub Cadet BS-807805

Gear, Flywheel Ring

$

$

Currently unavailable

15

Cub Cadet BS-805641

Grommet
(Superseded to BS-690744)

$7.49

$

Usually ships in 2-12 days

0

16

Cub Cadet BS-493880

Terminal, Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

17

Cub Cadet BS-393537

Connector Assembly

$

$

Not available

18

Cub Cadet BS-807863

Fan, Flywheel

$

$

Not available

19

Cub Cadet BS-224413

Retainer, Fan
(Superseded to BS-690452)

$10.99

$

Usually ships in 2-12 days

0
