541777-2227-J1 - Briggs & Stratton Vertical Engine Carburetor and Fuel Supply Group Parts Diagram

Vertical Engine

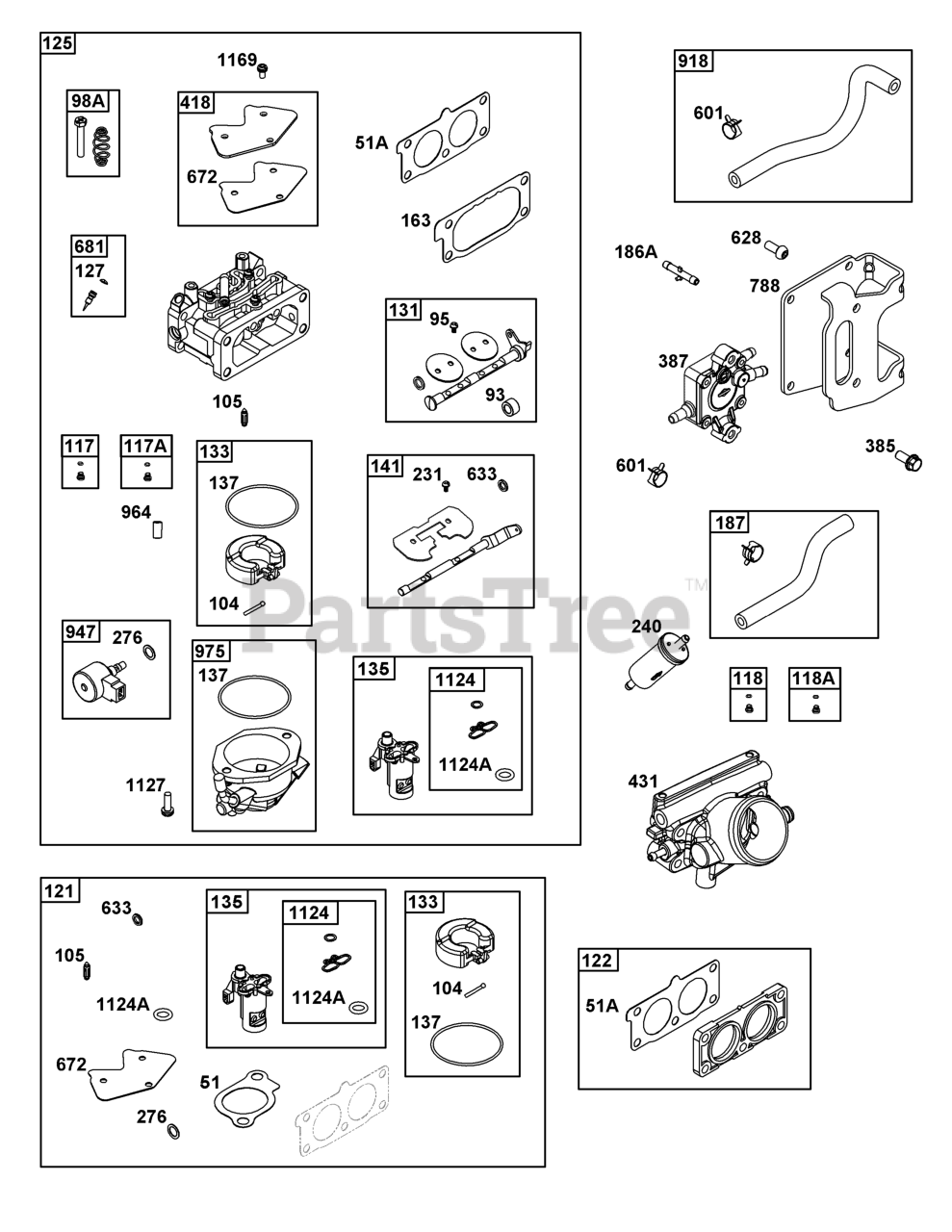

Carburetor and Fuel Supply Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

93

Briggs & Stratton 845864

BUSHING, Throttle Shaft

$8.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98A

Briggs & Stratton 808177

KIT, Idle Speed

$13.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 690882

PIN, Float Hinge

$8.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 696136

VALVE, Float Needle

$15.99

$

In Stock, Qty 20+

0

117

Briggs & Stratton 699733

JET, Main

Note: (Standard) (Right Jet)

$17.99

$

In Stock, only 1 left!

0

117A

Briggs & Stratton 791501

JET, Main

Note: (Standard) (Left Jet)

$17.99

$

In Stock, Qty 8

0

118

Briggs & Stratton 791406

JET, Main

Note: (High Altitude) (Right Jet)

$18.99

$

In Stock, only 1 left!

0

118A

Briggs & Stratton 843099

JET, Main

Note: (High Altitude) (Left Jet)

$15.99

$

In Stock, only 2 left!

0

121

Briggs & Stratton 842697

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$190.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 846245

SPACER, Carburetor

$13.99

$

In Stock, only 4 left!

0

125

Briggs & Stratton 845278

CARBURETOR

$369.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 844590

PLUG, Welch

$10.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 844843

KIT, Throttle Shaft

$74.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 841545

FLOAT, Carburetor

$44.99

$

Usually ships in 2-12 days

0

135

Briggs & Stratton 842677

TUBE, Fuel Transfer

$36.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 841651

GASKET, Float Bowl

$7.49

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 844876

KIT, Choke Shaft

$42.99

$

Usually ships in 2-12 days

0

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

186A

Briggs & Stratton 845121

CONNECTOR, Hose

$6.49

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 791766

LINE, Fuel

$7.99

$

In Stock, Qty 20+

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 695410

WASHER, Sealing

$6.99

$

In Stock, Qty 15

0

385

Briggs & Stratton 807084

SCREW

Note: (Fuel Pump)

$3.49

$

In Stock, only 2 left!

0

387

Briggs & Stratton 84003048

PUMP, Fuel

$65.99

$

In Stock, Qty 20+

0

418

Briggs & Stratton 844844

PLATE, Carburetor Cover

$7.99

$

Usually ships in 2-12 days

0

431

ELBOW, Intake

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 17

0

628

Briggs & Stratton 842547

SCREW

Note: (Fuel Pump Bracket)

$5.49

$

Usually ships in 2-12 days

0

633

Briggs & Stratton 690722

SEAL, Choke/Throttle Shaft

$15.99

$

In Stock, only 4 left!

0

672

Briggs & Stratton 842696

GASKET, Carburetor Plate

$12.99

$

Usually ships in 2-12 days

0

681

Briggs & Stratton 845290

KIT, Needle Valve

$26.99

$

Usually ships in 2-12 days

0

788

Briggs & Stratton 844530

BRACKET, Fuel Pump

$41.99

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 844526

HOSE, Vacuum

$20.99

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 841546

SOLENOID, Fuel

$166.99

$

Usually ships in 2-12 days

0

964

Briggs & Stratton 807468

CAP, Carburetor

$9.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 843551

BOWL, Float

$93.99

$

Usually ships in 2-12 days

0

1124

Briggs & Stratton 842678

SEAL, O-Ring

Note: (Fuel Transfer Tube)

$17.99

$

In Stock, only 1 left!

0

1124A

Briggs & Stratton 841653

SEAL, O-Ring

Note: (Fuel Transfer Tube)

$14.99

$

In Stock, Qty 16

0

1127

Briggs & Stratton 841621

SCREW

Note: (Float Bowl to Carburetor Body)

$3.99

$

Usually ships in 2-12 days

0

1169

Briggs & Stratton 690990

SCREW

Note: (Carburetor Cover Plate)

$3.99

$

Usually ships in 2-12 days

0
