541777-1110-E1 - Briggs & Stratton Vertical Engine Alternator, Starter Motor, Regulator Parts Diagram

Vertical Engine

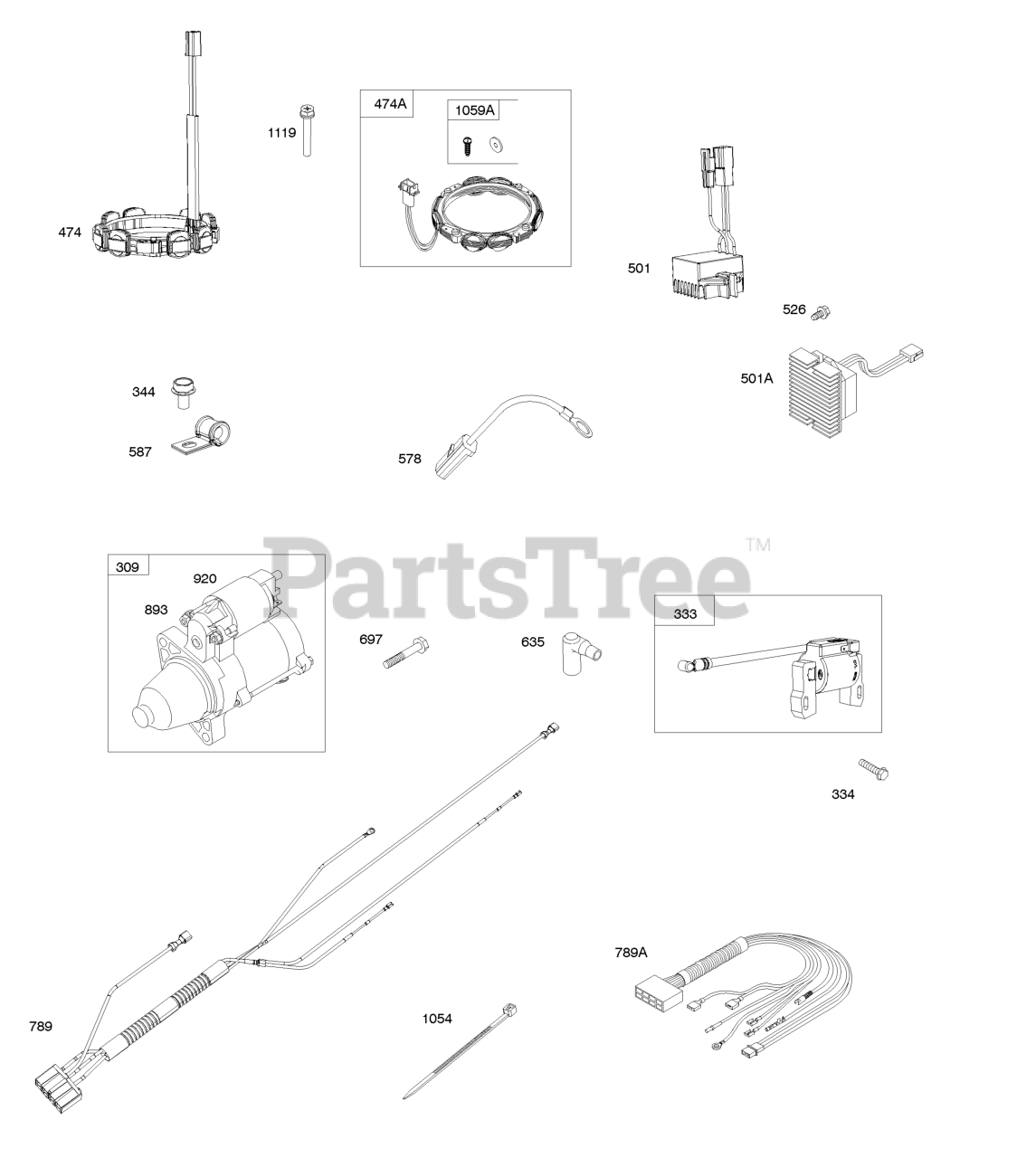

Alternator, Starter Motor, Regulator Parts Diagram

  • Title

309

Briggs & Stratton 845761

Motor-Starter
(Superseded to 84006533)

$385.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 845126

Armature-Magneto

Note: (Cylinders #1 and #2)

$63.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 692066

Screw

Note: (Magneto Armature) (M4x23mm)

$3.49

$

In Stock, Qty 7

0

344

Briggs & Stratton 841233

SCREW

Note: (Cable Clamp) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0

474

Briggs & Stratton 846882

Alternator

Note: Used After Code Date 15103100

$118.99

$

In Stock, Qty 20+

0

474A

Briggs & Stratton 696579

Alternator

Note: Used Before Code Date 15110100

$107.99

$

In Stock, Qty 6

0

501

Briggs & Stratton 593843

REGULATOR

Note: Used After Code Date 15110100

$57.99

$

In Stock, only 1 left!

0

501A

Briggs & Stratton 691573

Regulator
(Superseded to 84004837)

Note: Used Before Code Date 15110200

$99.99

$

In Stock, Qty 14

0

526

Briggs & Stratton 690717

Screw

Note: (Regulator)

$3.49

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 846899

Wire Assembly

$11.99

$

Usually ships in 2-12 days

0

587

Briggs & Stratton 846866

Clamp-Cable

$5.49

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

697

Briggs & Stratton 690711

Screw

Note: (Starter Motor) (Drive Cap) (M8x38mm)

$6.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 847060

Harness-Wiring

Note: Used After Code Date 15110100

$71.99

$

In Stock, only 1 left!

0

789A

Briggs & Stratton 809906

Harness-Wiring

Note: Used Before Code Date 15110200

$47.99

$

Usually ships in 2-12 days

0

893

Briggs & Stratton 845758

Nut

Note: (Starter Solenoid)

$2.99

$

In Stock, only 1 left!

0

920

Briggs & Stratton 845757

Solenoid-Starter
(Superseded to 846737)

$

$

Not available

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1059A

Briggs & Stratton 698516

KIT, Screw/Washer

Note: (Alternator)

$5.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691552

SCREW

Note: (Alternator)

$3.99

$

Usually ships in 2-12 days

0
