5416 R (554C562K100) - Cub Cadet Walk-Behind Mower (SN: 457900 - 460859) Lower Handle Support Assembly Parts Diagram

Walk-Behind Mower

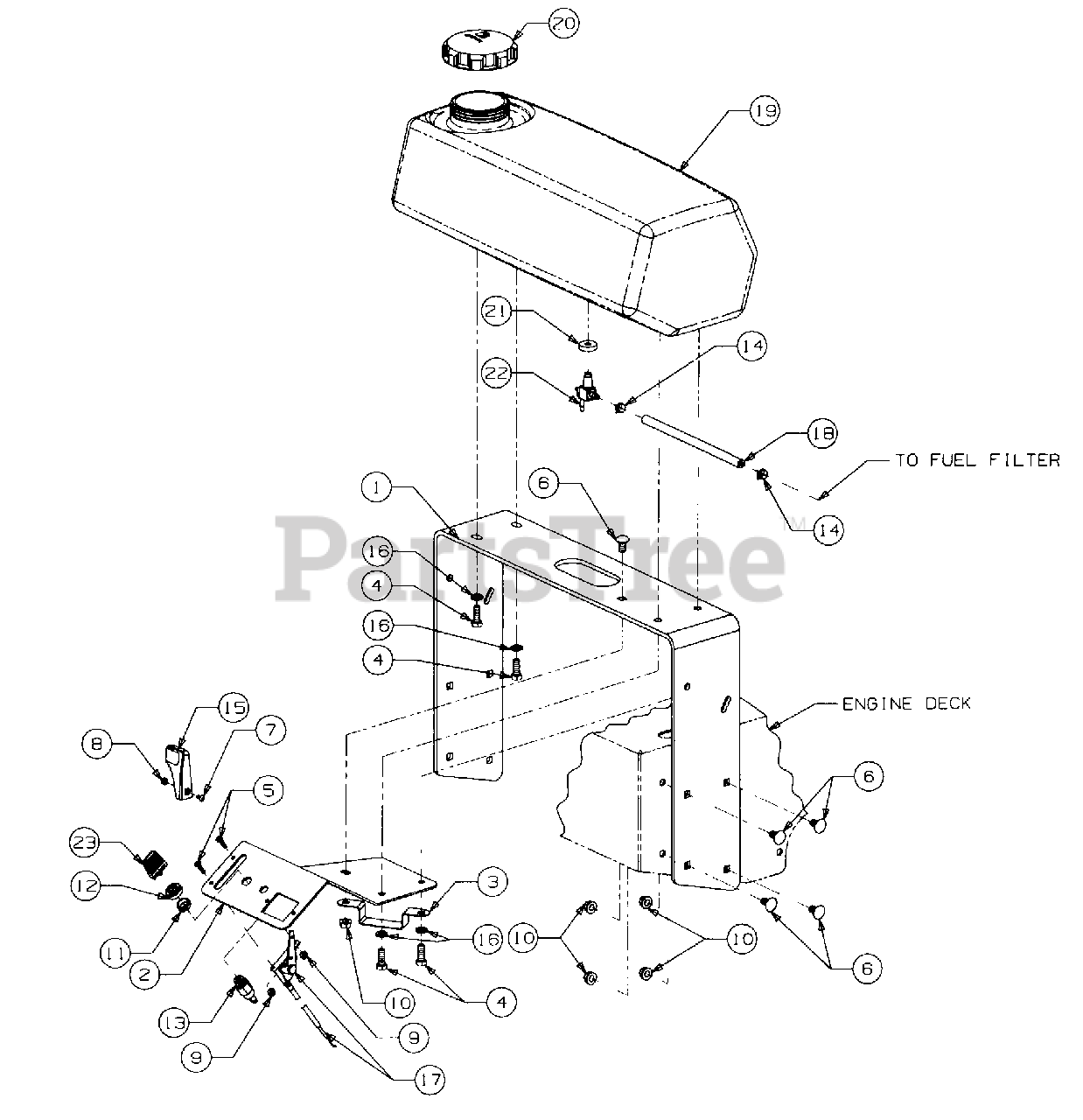

Lower Handle Support Assembly Parts Diagram

  • Title
1

Cub Cadet 703-2229

Support, Lower Handle

$

$

Not available

2

Cub Cadet 759-3725

Panel w/Graphic, Control (Kohler engine)

$

$

Currently unavailable

Cub Cadet 777-1728

Graphic, Control Panel

$

$

Not available

3

Cub Cadet 703-2591

Bracket, Cable Retainer

$

$

Not available

4

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3009

Screw, Pan Hd Cutting, #10-24 X .75 Lg

$7.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-3178

Bolt Sht Nk Carriage, 3/8-16 X .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3217

Screw, Cross Rec Truss Hd, #8-32 X .38 Lg

$6.99

$

In Stock, Qty 7

0

8

Cub Cadet 712-0142

Nut, Hex,#8-32

$4.49

$

In Stock, Qty 10

0

9

Cub Cadet 712-0161

Nut, Hex Nylock, #10-24

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 725-1346

Nut, Ignition Switch, 5/8-32
(Superseded to 925-1346)

$

$

Not available

12

Cub Cadet 725-1347

Cap, Ignition Switch

$4.99

$

In Stock, only 1 left!

0

13

Cub Cadet 725-3232

Switch, Ignition

$

$

Not available

14

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 731-3161

Knob, Throttle Control
(Superseded to 931-3161A)

$19.99

$

In Stock, only 1 left!

0

16

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 746-3038A

Control, Throttle
(Superseded to 946-3038A)

$38.99

$

In Stock, Qty 10

0

18

Line, Fuel - 9" Lg - Order bulk fuel line part no. 759-3330, 10 ft Lg

$

$

Not available

19

Cub Cadet 759-3722

Tank, Fuel (Includes Ref No. 218 22)

$

$

Not available

Cub Cadet 777-1585

Graphic, Fuel Tank Warning

$

$

Not available

20

Cub Cadet 751-3124

Cap, Fuel
(Superseded to 951-3124E)

$36.99

$

In Stock, only 1 left!

0

21

Cub Cadet 751-3126

Grommet, Shutoff Valve

$

$

Not available

22

Cub Cadet 751-3127

Valve, Fuel Shutoff

$

$

Not available

23

Cub Cadet 759-3476A

Key, Ignition (Set of 2)
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0
