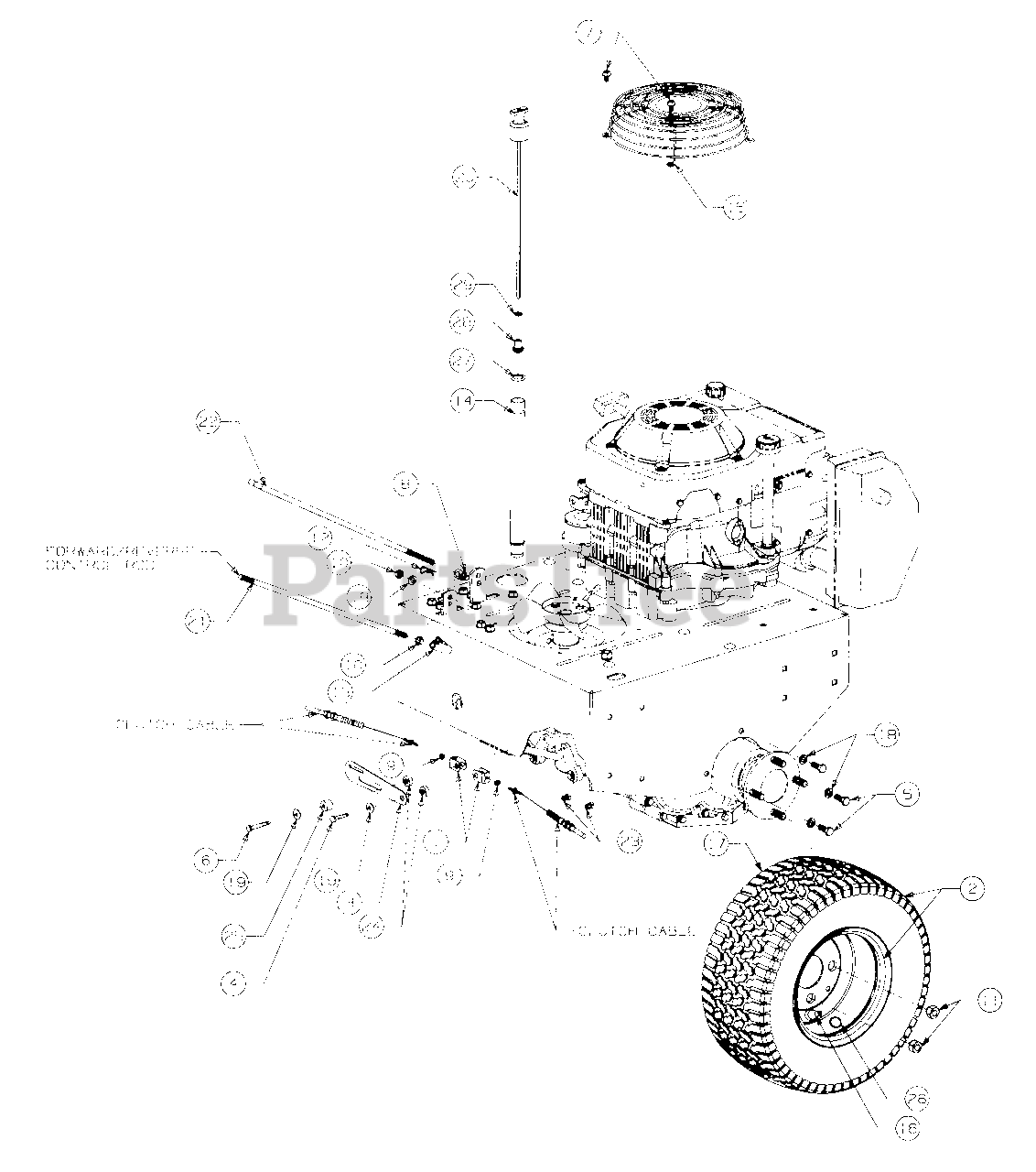

5416 R (554C562K100) - Cub Cadet Walk-Behind Mower (SN: 457900 - 460859) Lower Controls Parts Diagram

Walk-Behind Mower

Lower Controls Parts Diagram

  • Title
1

Cub Cadet 603-0169

U-Clevis, Clutch Cable

$

$

Not available

2

Cub Cadet 759-3727

Wheel & Tire Assy, Complete, 16 X 6.50-8 (Include Ref No. 26)

$

$

Not available

3

Cub Cadet 703-2369

Plate, Parking Brake Switch Mount

$

$

Not available

4

Cub Cadet 710-0428

Screw, Hex Cap, 1/4-28 X 1.25 Lg GR5

$2.49

$

In Stock, only 1 left!

0

5

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0559

Screw, Hex Cap, 1/4-28 X 1.75 Lg GR5

$

$

Not available

7

Cub Cadet 710-0603

Screw, HexWash Hd Tapp, 5/16-18 X .50 Lg

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 711-3397

Ferrule, 3/8-24 X .37 Dia

$

$

Not available

9

Cub Cadet 712-0349

Nut, Hex Jam, #10-32

$4.99

$

In Stock, Qty 5

0

10

Cub Cadet 712-3001

Nut, Hex Jam, 3/8-24 GR5
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

11

Cub Cadet 712-3076

Nut, Lug, 1/2-20

$

$

Not available

12

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 723-3018

Ball Joint, 3/8-24
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

14

Cub Cadet 727-3084

Tube, Oil Fill

$

$

Not available

15

Cub Cadet 732-3083

Guard, Fan Cover

$

$

Not available

16

Cub Cadet 734-0255

Valve, Tubeless Air
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 734-3108

Tire, Turf Chief, 16 X 6.50-8

$

$

Not available

18

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0270

Washer, Bell, .265 X .75 X .062 Thk

$3.99

$

In Stock, Qty 20+

0

20

$

$

Not available

21

Cub Cadet 747-3169

Rod, F/R Control

$

$

Not available

22

Cub Cadet 747-3229

Rod, PTO Control

$

$

Not available

23

Cub Cadet 750-3111

Nut, Clevis, Spacer, 1/4-28

$

$

Not available

24

Cub Cadet 750-3112

Spacer, Clevis

$

$

Not available

25

Cub Cadet 750-3113

Spacer, Switch Engagement

$

$

Not available

26

Cub Cadet 777-8680

Label, Inflation

$

$

Currently unavailable

$

$

Not available

28

Cub Cadet KH-52-032-14

Seal, Rubber
(Superseded to KH-25-032-13-S)

$3.49

$

Usually ships in 2-5 days

0

29

Cub Cadet KH-X-25-44

Washer, Plain, 5/16

$

$

Not available
