5416 R (553C562K100) - Cub Cadet Walk-Behind Mower (SN: 457900 - 460859) Governor And Engine Controls Parts Diagram

Walk-Behind Mower

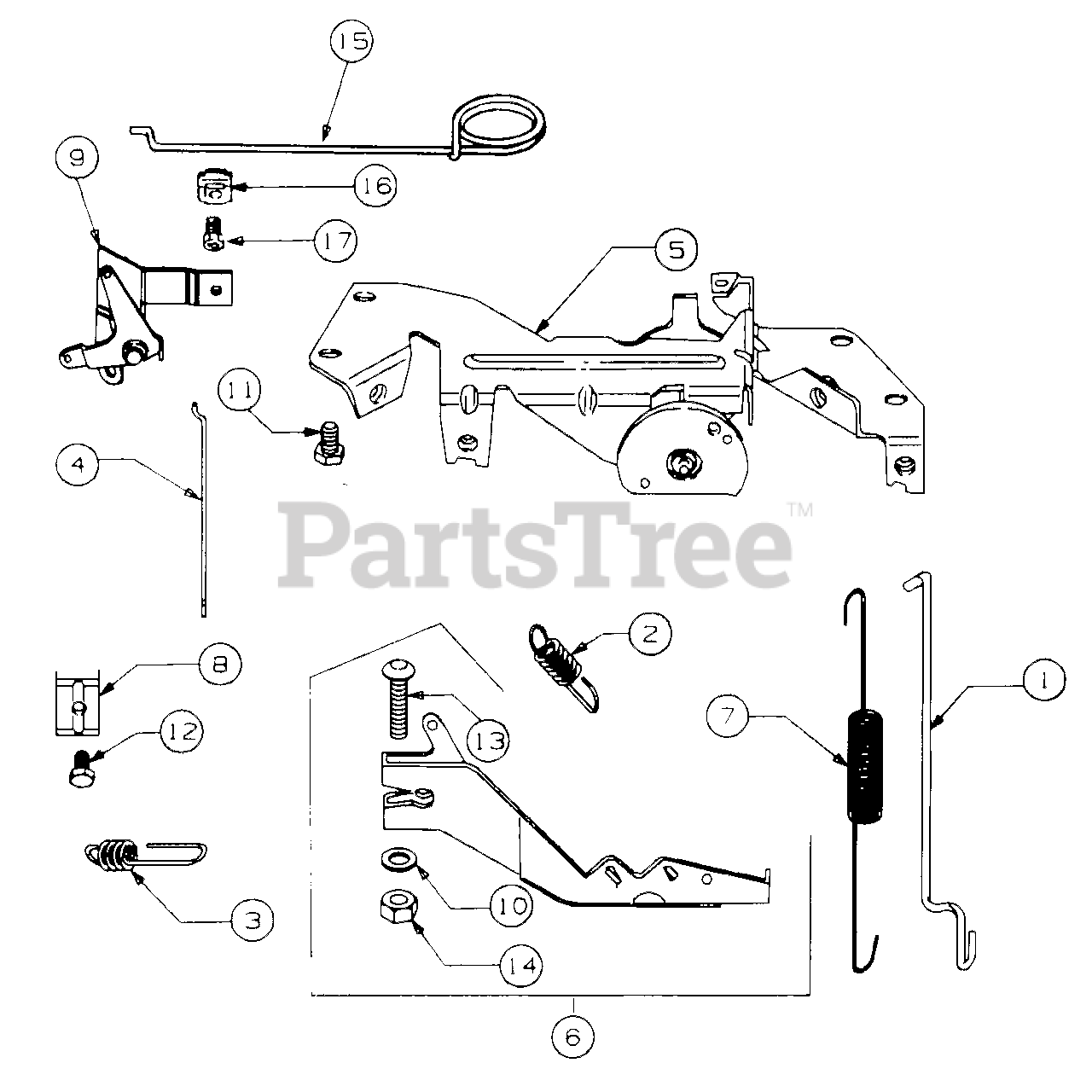

Governor And Engine Controls Parts Diagram

  • Title
1

Cub Cadet BS-805480

Link, Governor

$

$

Not available

2

Cub Cadet BS-805460

Spring, Governor
(Superseded to BS-692070)

$5.99

$

In Stock, Qty 8

0

3

Cub Cadet BS-805453

Spring, Governed Idle
(Superseded to BS-692069)

$6.49

$

In Stock, Qty 8

0

4

Cub Cadet BS-805439

Link, Choke
(Superseded to BS-690705)

$6.49

$

In Stock, Qty 9

0

5

Cub Cadet BS-807610

Bracket, Governor Control

$

$

Not available

6

Cub Cadet BS-807528

Lever Assy, Governor

$

$

Not available

7

Cub Cadet BS-805465

Spring, Governor Link
(Superseded to BS-692073)

$9.49

$

In Stock, only 2 left!

0

8

Cub Cadet BS-221535

Clamp, Casing
(Superseded to BS-691024)

$3.99

$

In Stock, Qty 6

0

9

Cub Cadet BS-807609

Bracket, Choke Control

$

$

Not available

$

$

Not available

11

Cub Cadet BS-805025

Screw, Sem

$

$

Not available

12

Cub Cadet BS-805169

Screw, Hex Head

$

$

Not available

$

$

Not available

14

Cub Cadet BS-805383

Nut, Hex
(Superseded to 712-0689)

$

$

Not available

15

Cub Cadet BS-805509

Rod, Manual Choke

$

$

Not available

16

Cub Cadet BS-221372

Clip, Frictbn

$

$

Not available

17

Cub Cadet BS-805762

Screw, Sem

$

$

Not available
