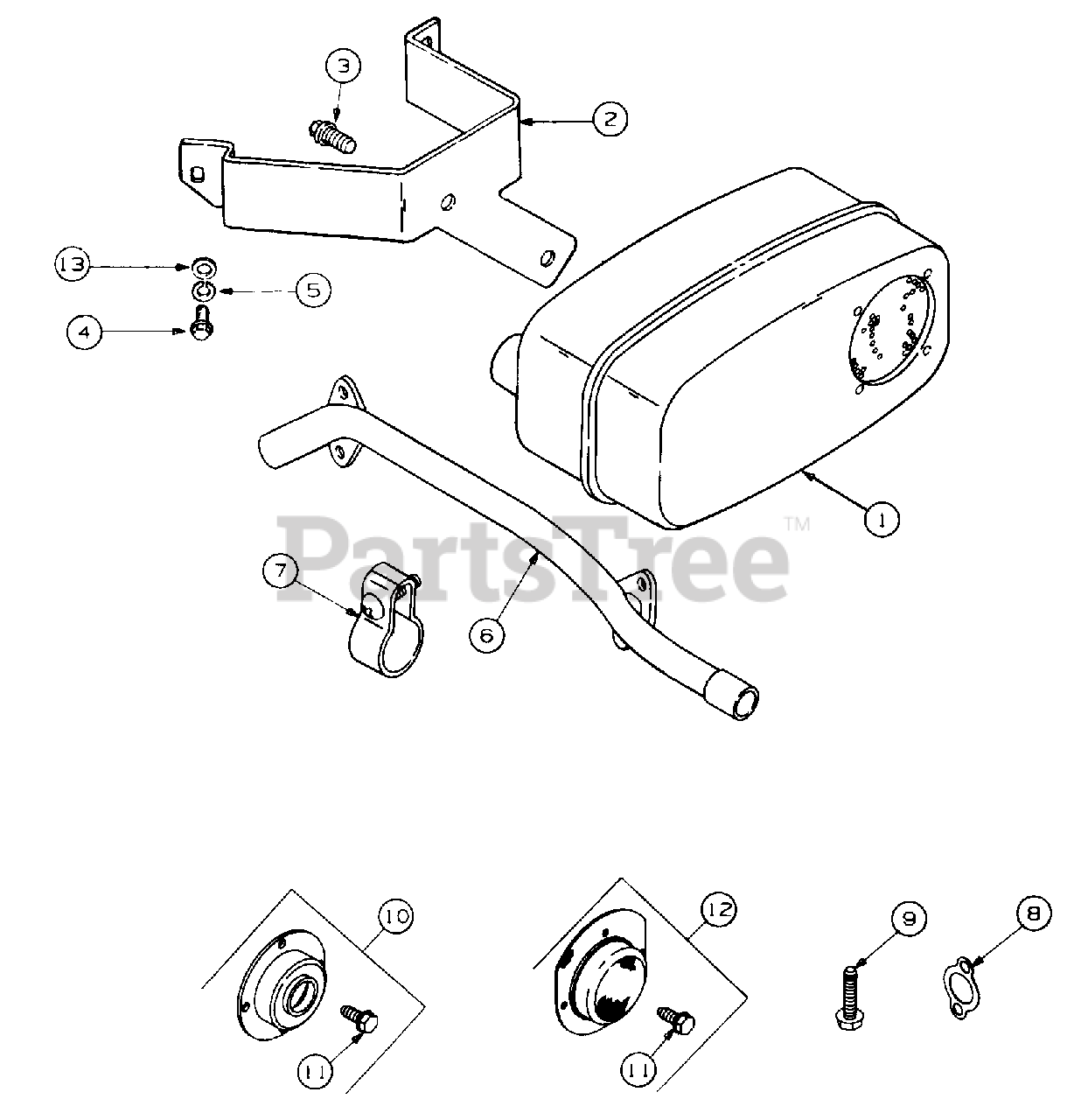

5416 R (553C562K100) - Cub Cadet Walk-Behind Mower (SN: 457900 - 460859) Exhaust Manifold And Muffler Parts Diagram

Walk-Behind Mower

Exhaust Manifold And Muffler Parts Diagram

  • Title

1

Cub Cadet BS-493963

Muffler
(Superseded to BS-498984S)

$84.99

$

Usually ships in 2-12 days

0

2

Cub Cadet 703-2564

Bracket, Muffler

$

$

Currently unavailable

3

Cub Cadet 710-0599

Screw, Hex Wash Hd Tap, 1/4-20 X .50 Lg

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3223

Screw, Hex Cap, M6-1.0 X 20 mm Lg GR10.9

$

$

Not available

5

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

6

Cub Cadet BS-805609

ManHold, Exhaust

$152.99

$

In Stock, only 1 left!

0

7

Cub Cadet BS-392649

Clamp, Muffler
(Superseded to BS-691956)

$15.99

$

In Stock, only 3 left!

0

8

Cub Cadet BS-805024

Gasket, Exhaust Manifold
(Superseded to BS-691613)

$5.49

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-805158

Screw, Sem
(Superseded to BS-691902)

$3.49

$

In Stock, Qty 8

0

10

Cub Cadet BS-396903

Deflector, Exhaust

$14.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-93705

Screw, Sem
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 9

0

12

Cub Cadet BS-392390

Arrester, Spark
(Superseded to BS-794945)

$53.99

$

Usually ships in 2-12 days

0

13

Cub Cadet 736-3000

Washer, Flat .281 x .75 x .105 Thk
(Superseded to 936-0176)

$4.99

$

In Stock, only 4 left!

0
