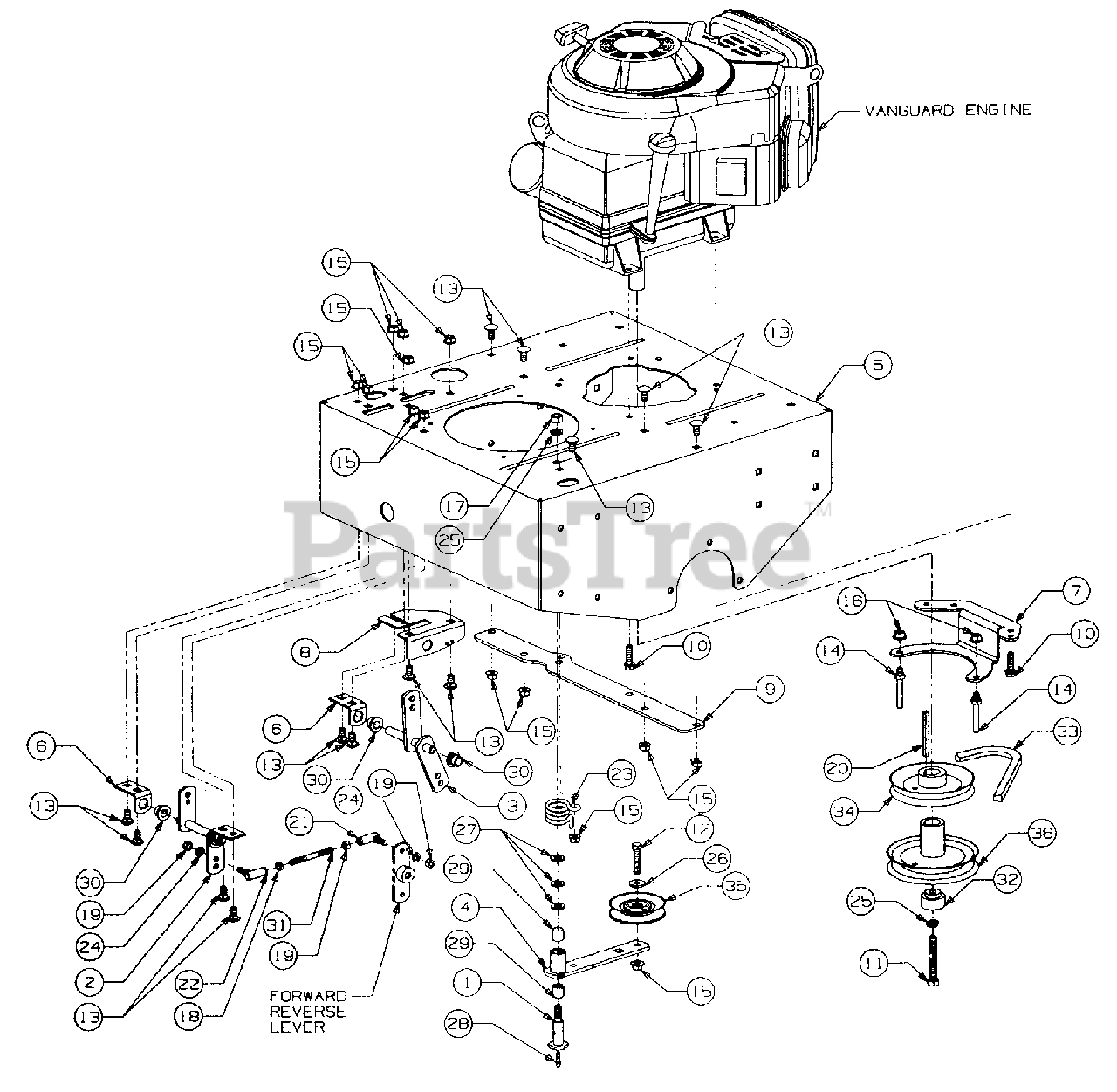

5416 R (553C562K100) - Cub Cadet Walk-Behind Mower (SN: 457900 - 460859) Engine Deck Assembly Manual PTO Parts Diagram

Walk-Behind Mower

Engine Deck Assembly Manual PTO Parts Diagram

  • Title

1

Cub Cadet 738-3108

Bolt, Shoulder
(Superseded to 738-05004)

$22.99

$

In Stock, Qty 6

0

2

Cub Cadet 603-0155

Lever, F/R Control

$

$

Not available

3

Cub Cadet 603-0207

Lever, PTO Engagement

$

$

Not available

4

Cub Cadet 603-0209

Arm Assy, Idler [Includes Ref No. 29 (Qty 2)]

$

$

Not available

5

Cub Cadet 703-2253

Deck, Engine Mtg

$

$

Currently unavailable

6

Cub Cadet 703-2425

Bracket, Lever Angle

$

$

Not available

7

Cub Cadet 703-2498

Retainer, Belt Guide

$

$

Not available

8

Cub Cadet 703-2574

Plate, Engagement Lever Mtg

$

$

Not available

9

Cub Cadet 703-2576

Stiffener

$

$

Not available

10

Cub Cadet 710-0502A

Screw, Hex L-Wash Tapp, 3/8-16 X 1.25 Lg

$6.99

$

In Stock, only 2 left!

0

11

Cub Cadet 710-0510

Screw, Hex Cap, 7/16-20 X 3.0 Lg GR5

$11.99

$

In Stock, only 1 left!

0

12

Cub Cadet 710-3037

Screw, Hex Cap, 3/8-16 X 1.75 Lg
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3178

Bolt, Sht Nk Carriage, 3/8-16 X .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 711-0640

Stud, 3/8-16 X 2.68 Lg

$7.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3005

Nut, Hex Flange Lock, 3/8-16 GR5

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-3019

Nut, Hex, 7/16-14 GR5

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 712-3045

Nut, Hex Cap, 5/16-24 LH Thread
(Superseded to 912-3045)

$4.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 712-3057

Nut, Hex, 5/16-24 GR5
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

20

Cub Cadet 714-0120

Key, Square, 1/4 X 3.0 Lg

$

$

Not available

21

Cub Cadet 723-3011

Ball Joint, 5/16-24
(Superseded to 923-3011)

$37.99

$

In Stock, only 1 left!

0

22

Cub Cadet 723-3012

Ball Joint, 5/16-24 LH Thread
(Superseded to 923-3012)

$42.99

$

In Stock, only 1 left!

0

23

Cub Cadet 732-3009

Spring, Torsion
(Superseded to 932-3009)

$24.99

$

In Stock, only 4 left!

0

24

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0171

Washer, Lock, 7/1

$4.49

$

In Stock, only 4 left!

0

26

Cub Cadet 736-0206

Washer, Special, .378 X 1.00 X .125 Thk
(Superseded to 936-0206)

$4.49

$

In Stock, only 3 left!

0

27

Cub Cadet 736-3015

Washer, Flat, .469 X .875 X .105 Thk
(Superseded to 936-3015)

$4.49

$

In Stock, only 1 left!

0

28

Cub Cadet 737-0280

Fitting, Lube

$7.99

$

In Stock, Qty 8

0

29

Cub Cadet 741-3063

Bearing, Sleeve

$17.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 741-0324

Bearing, Hex Flange
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

31

Cub Cadet 747-3170

Rod, Control

$

$

Not available

32

Cub Cadet 750-3143

Plug, Pulley

$

$

Not available

33

Cub Cadet 754-0244

Belt, Transmission, 1/2 X 40.0 Lg
(Superseded to 954-0244)

$39.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 756-3060

Pulley, Engine
(Superseded to 756-3060A)

$97.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 756-3068

Pulley, V-Idler

$

$

Not available

36

Cub Cadet 756-3075

Pulley, PTO Drive

$

$

Not available
