541 ZX (966681901) - Poulan Pro 54" Zero-Turn Mower (2011-01) IGNITION SYSTEM Parts Diagram

54" Zero-Turn Mower

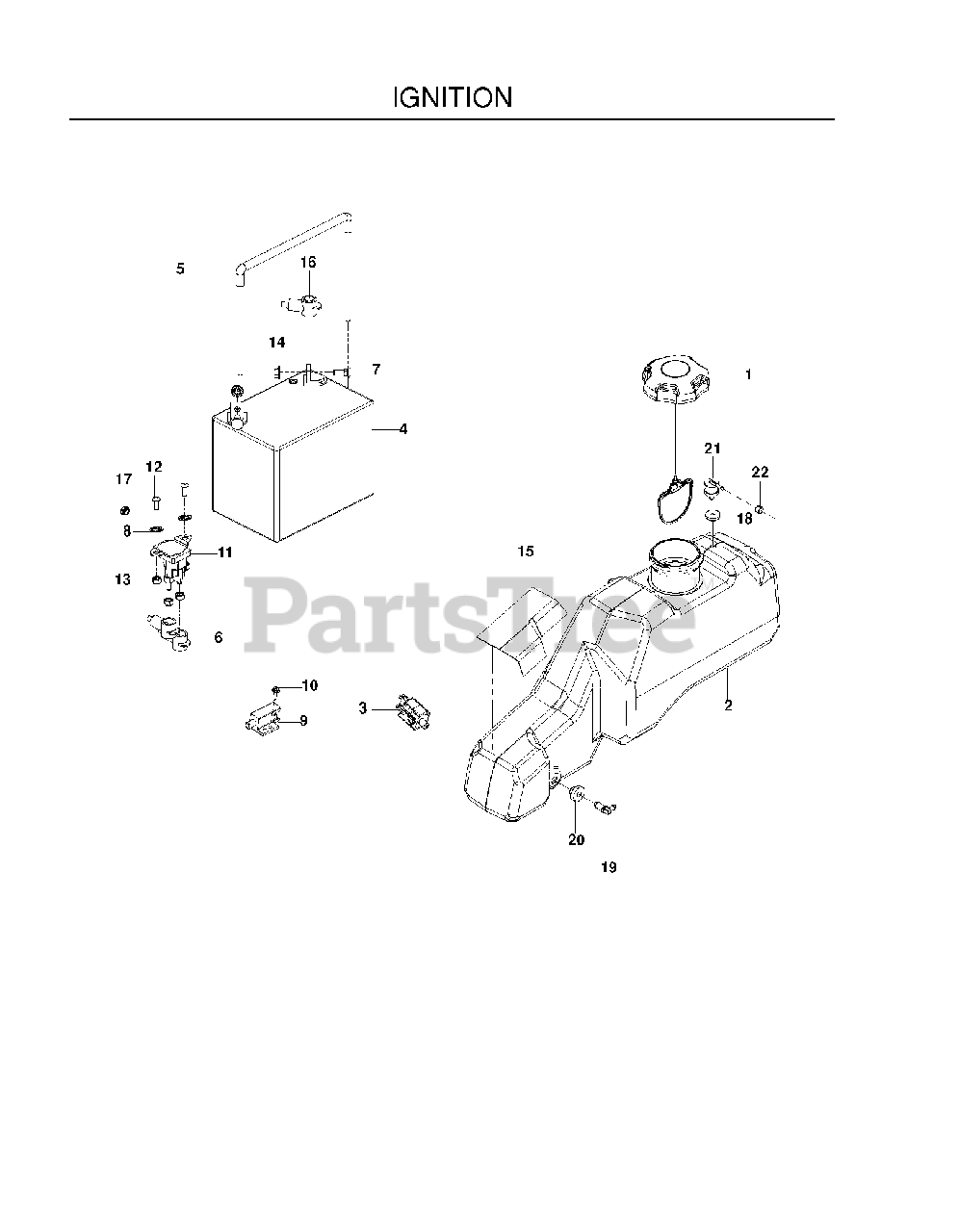

IGNITION SYSTEM Parts Diagram

  • Title
1

Poulan 575018101

CAP, FUEL

$21.99

$

Usually ships in 3-10 days

0

2

Poulan 576369401

TANK, FUEL, RT-EPA
(Superseded to 578180601)

$157.99

$

Usually ships in 3-10 days

0

3

Poulan 539113792

SWITCH, BRAKE 3P

$17.99

$

In Stock, Qty 13

0

4

Poulan 539102436

BATTERY, 12 V 330 AMP TBR
(Superseded to 579411601)

$

$

Not available

5

Poulan 539131209

BATTERY TIE DOWN ASSEMBLY

$31.99

$

Usually ships in 3-10 days

0

6

Poulan 539116400

TERMINAL COVER-SM

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

8

Poulan 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

9

Poulan 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

10

Poulan 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 539101714

SOLENOID

$26.99

$

Usually ships in 3-10 days

0

12

Poulan 539111229

SCR 1/4-20 X 5/8 BTN SKT HD ZD

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 539976978

NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

15

Poulan 522559101

SHIELD, HEAT

$37.99

$

Usually ships in 3-10 days

0

16

Poulan 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

17

Poulan 539108120

JAM NUT 1/4C

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, Qty 10

0

19

Poulan 539110432

STEM, FUEL TANK
(Superseded to 532139277)

$8.99

$

In Stock, Qty 5

0

20

Poulan 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 5

0

21

Poulan 576618101

VALVE.FUEL.CHECK

$25.99

$

In Stock, Qty 16

0

22

Poulan 575436501

CLAMP, HOSE

$6.49

$

In Stock, only 4 left!

0

Poulan 539103306

CABLE POSITIVE, LONG

Note: NOT SHOWN

$10.99

$

In Stock, only 2 left!

0

Poulan 539110068

BATTERY CABLE, NEGATIVE

Note: NOT SHOWN

$9.49

$

Usually ships in 3-10 days

0

Poulan 515980501

WIRING HARNESS
(Superseded to 580798101)

Note: NOT SHOWN

$145.99

$

Usually ships in 3-10 days

0

Poulan 505280001

TIE WRAP, 8-3/8", W/CLIP

Note: NOT SHOWN

$3.99

$

Usually ships in 3-10 days

0
