540477-2225-01 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump Group Parts Diagram

Horizontal Engine

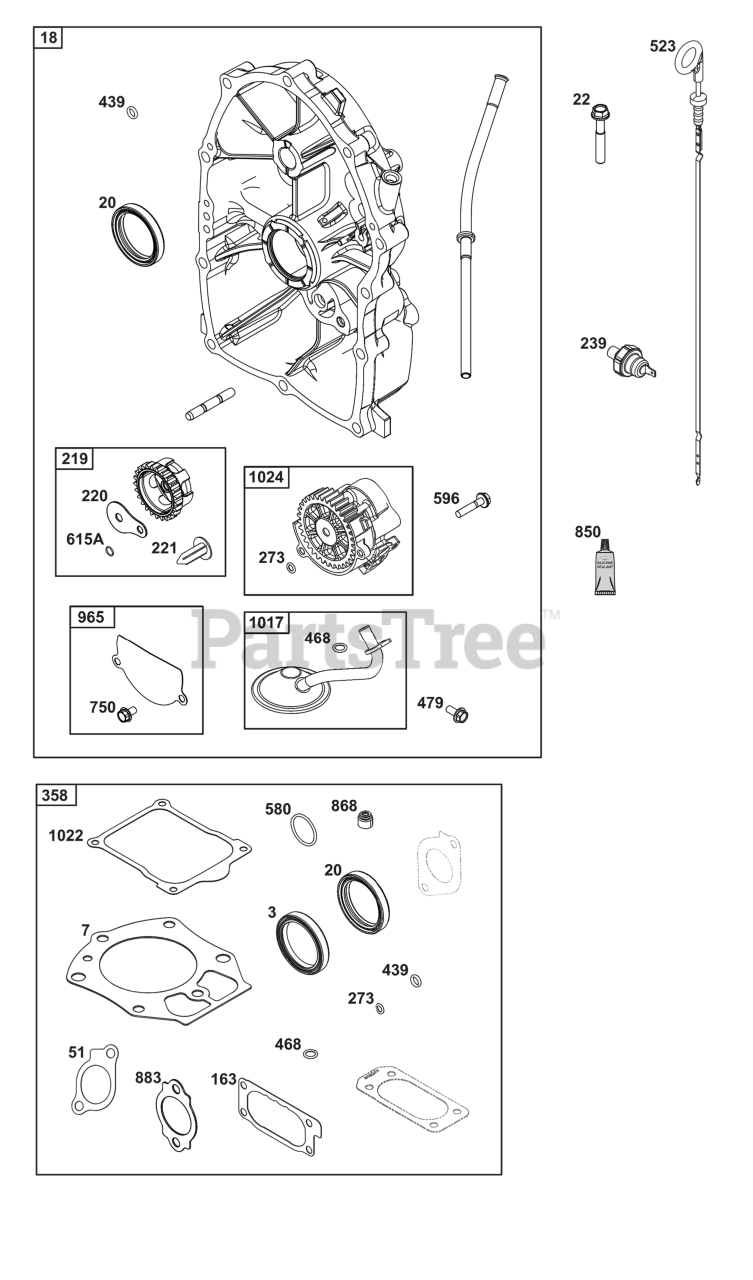

Crankcase Cover/Sump Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

18

Briggs & Stratton 848359

COVER, Crankcase

$351.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton 841596

SEAL, Oil

Note: (PTO Side)

$17.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 807362

SCREW

Note: (Crankcase Cover/Sump)

$3.49

$

In Stock, Qty 6

0

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

219

Briggs & Stratton 809426

GEAR, Governor

$63.99

$

In Stock, Qty 10

0

220

Briggs & Stratton 841608

WASHER

Note: (Governor Gear)

$12.99

$

Usually ships in 2-12 days

0

221

Briggs & Stratton 841026

CUP, Governor

$11.99

$

In Stock, only 1 left!

0

239

SWITCH, Oil Pressure

$

$

Not available

273

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

439

O-RING, Oil Gallery

Note: (Part information located in Cylinder Group.)

$

$

Not available

468

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

479

SCREW

Note: (Part information located in Lubrication Group.)

$

$

Not available

523

DIPSTICK

Note: (Part information located in Lubrication Group.)

$

$

Not available

580

SEAL, O-Ring

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

596

SCREW

Note: (Part information located in Lubrication Group.)

$

$

Not available

615A

Briggs & Stratton 698290

RETAINER, Governor Shaft

$4.49

$

In Stock, Qty 9

0

750

SCREW

Note: (Part information located in Lubrication Group.)

$

$

Not available

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, Qty 20+

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

965

COVER, Oil Pump

Note: (Part information located in Lubrication Group.)

$

$

Not available

1017

SCREEN, Oil Pump

Note: (Part information located in Lubrication Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1024

PUMP, Oil

Note: (Part information located in Lubrication Group.)

$

$

Not available
