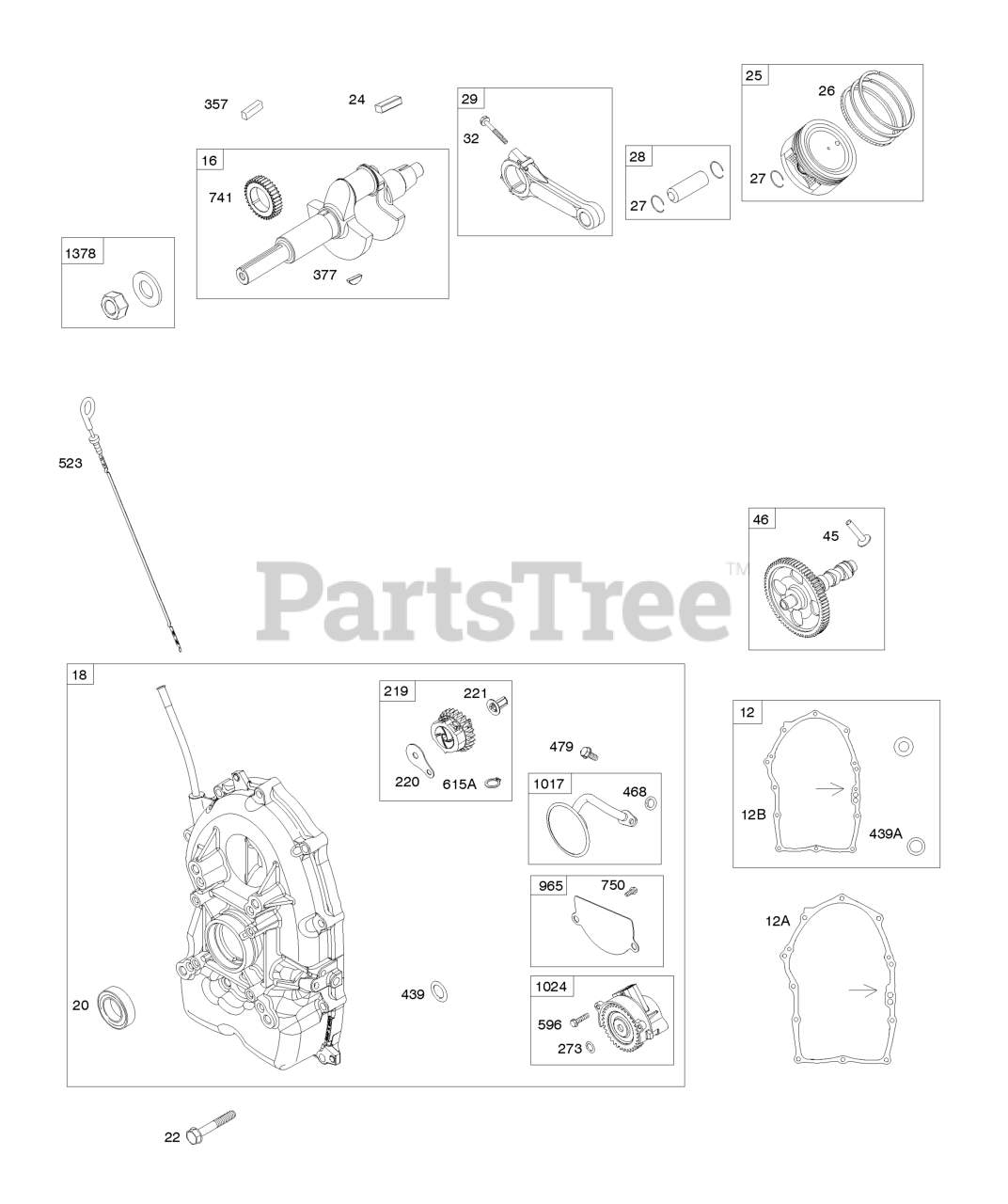

540477-0110-E1 - Briggs & Stratton Horizontal Engine Crankcase Cover, Crankshaft, Piston/Ring/Rods Parts Diagram

Horizontal Engine

Crankcase Cover, Crankshaft, Piston/Ring/Rods Parts Diagram

  • Title

12

Briggs & Stratton 846037

Gasket-Crankcase

Note: Used After Code Date 13072100

$64.99

$

In Stock, only 2 left!

0

12A

Briggs & Stratton 844107

Gasket-Crankcase

Note: Used Before Code Date 13072200

$

$

Not available

12B

Briggs & Stratton 843969

Gasket-Crankcase

Note: Used After Code Date 13072100

$64.99

$

In Stock, Qty 5

0

16

Briggs & Stratton 843290

Crankshaft

$557.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 844792

Cover-Crankcase
(Superseded to 848359)

$351.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 841596

SEAL, Oil

Note: (PTO Side)

$17.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 807362

SCREW

Note: (Crankcase Cover/Sump) (M8x50mm)

$3.49

$

In Stock, Qty 6

0

24

Briggs & Stratton 222698S

KEY, Flywheel

Note: (Aluminum) Used Before Code Date 07122800

$2.99

$

In Stock, Qty 20+

0

24

Briggs & Stratton 796335

KEY, Flywheel

Note: (Steel) Used After Code Date 07122700

$5.49

$

In Stock, Qty 20+

0

25

Briggs & Stratton 809790

Piston Assembly

Note: (Standard)

$185.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 841931

Piston Assembly

Note: (.020" Oversize)

$192.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 809972

RING SET

Note: (Standard)

$75.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 841932

RING SET

Note: (.020" Oversize)

$

$

Not available

27

Briggs & Stratton 807351

LOCK, Piston Pin

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 807361

PIN, Piston

$26.99

$

In Stock, Qty 5

0

29

Briggs & Stratton 809275

Rod-Connecting

$69.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 807363

SCREW

Note: (Connecting Rod)

$7.49

$

In Stock, only 2 left!

0

45

Briggs & Stratton 809785

TAPPET, Valve

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 841603

Camshaft

$259.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 809426

Gear-Governor

$63.99

$

In Stock, Qty 10

0

220

Briggs & Stratton 841608

Washer

Note: (Governor Gear)

$12.99

$

Usually ships in 2-12 days

0

221

Briggs & Stratton 841026

CUP, Governor

$11.99

$

In Stock, only 1 left!

0

273

Briggs & Stratton 690681

Seal-O Ring

Note: (Oil Pump)

$5.99

$

In Stock, only 2 left!

0

377

Briggs & Stratton 691639

KEY, Woodruff

$4.49

$

In Stock, Qty 5

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$5.99

$

In Stock, Qty 20+

0

439A

Briggs & Stratton 846027

O Ring-Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly) Used After Code Date 13072100

$7.99

$

Usually ships in 2-12 days

0

468

Briggs & Stratton 690690

SEAL, O-Ring

Note: (Oil Pump Screen)

$5.99

$

Usually ships in 2-12 days

0

479

Briggs & Stratton 807084

SCREW

Note: (Oil Pump Screen)

$3.49

$

In Stock, Qty 7

0

523

Briggs & Stratton 841007

DIPSTICK

$30.99

$

In Stock, only 1 left!

0

596

Briggs & Stratton 691492

SCREW

Note: (Oil Pump)

$3.99

$

In Stock, only 2 left!

0

615A

Briggs & Stratton 698290

RETAINER, Governor Shaft

Note: (Governor Gear)

$4.49

$

In Stock, Qty 9

0

741

Briggs & Stratton 809432

GEAR, Timing

$42.99

$

Usually ships in 2-12 days

0

750

Briggs & Stratton 841233

SCREW

Note: (Oil Pump Cover)

$3.49

$

In Stock, Qty 20+

0

965

Briggs & Stratton 809422

COVER, Oil Pump

$19.99

$

Usually ships in 2-12 days

0

1017

Briggs & Stratton 809421

SCREEN, Oil Pump

$34.99

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 845983

PUMP, Oil

$159.99

$

Usually ships in 2-12 days

0

1378

Briggs & Stratton 844795

Washer/Nut Set

Note: (Flywheel)

$15.99

$

Usually ships in 2-12 days

0
