540 iXP - Husqvarna Chainsaw ELECTRICAL Parts Diagram

Chainsaw

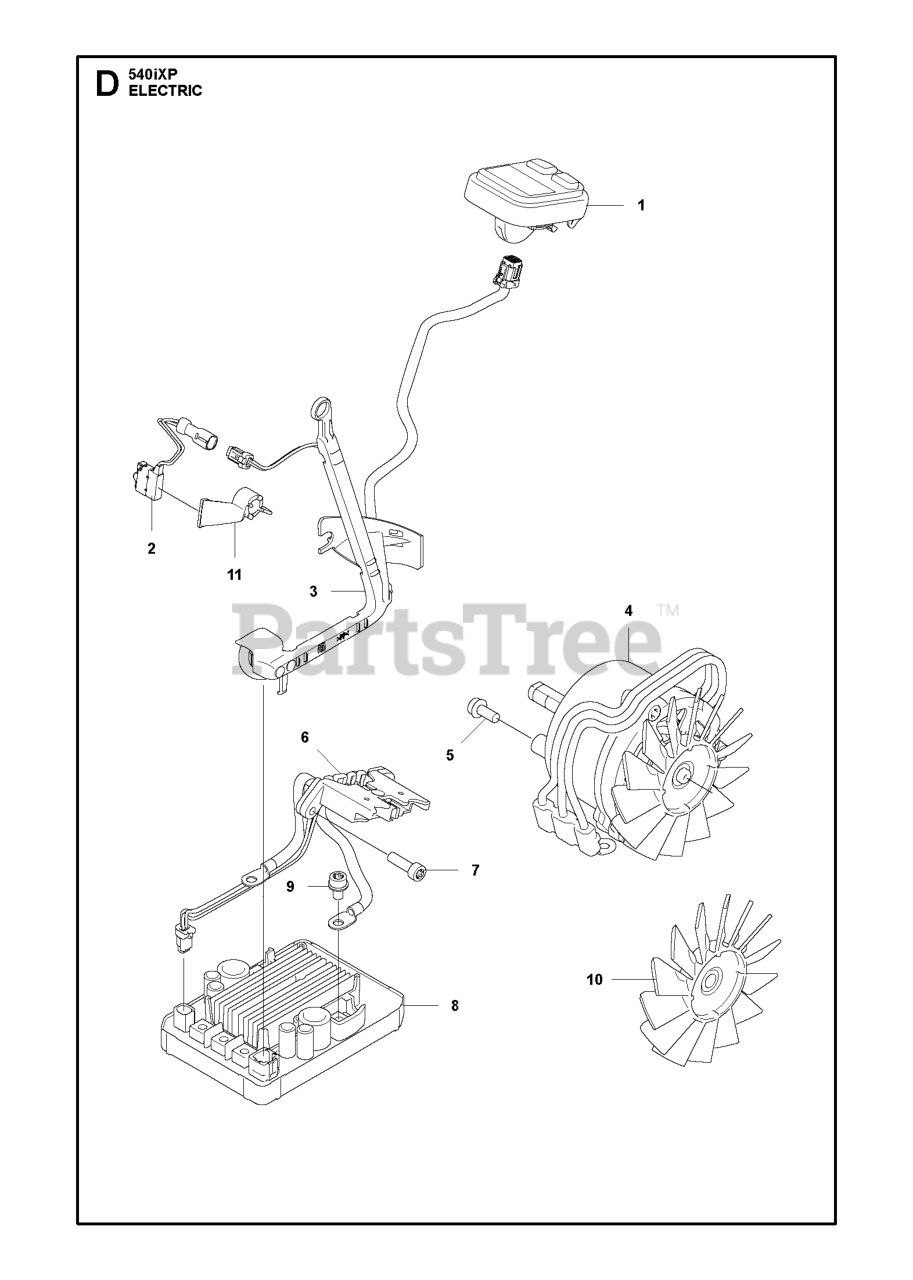

ELECTRICAL Parts Diagram

  • Title

6

Husqvarna 593083801

Wiring Harness

$43.99

$

Usually ships in 3-10 days

0

5

Husqvarna 525755105

SCREW
(Superseded to 575532001)

$5.99

$

In Stock, Qty 7

0

2

Husqvarna 593954101

Switches

$31.99

$

Usually ships in 3-10 days

0

3

Husqvarna 596786701

Wiring Harness

$43.99

$

Usually ships in 3-10 days

0

9

Husqvarna 525755107

SCREW ITXSCFM M5X8 T27 10.9 Z

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 598402501

Motor

$193.99

$

Usually ships in 3-10 days

0

8

Husqvarna 598858902

CONTROL UNIT

$319.99

$

In Stock, only 2 left!

0

7

Husqvarna 580292901

SCREW ITXSCT PW4.2X18 10.9 ZN

$3.49

$

In Stock, only 3 left!

0

1

Husqvarna 592647901

Control Panels

Note: BT

$125.99

$

Usually ships in 3-10 days

0

1

Husqvarna 593914901

Control Panels

Note: Small without BT

$79.99

$

Usually ships in 3-10 days

0

10

Husqvarna 593782601

Fans

$5.99

$

Usually ships in 3-10 days

0

11

Husqvarna 598760201

NEEDS DESCRIPTION

$9.49

$

Usually ships in 3-10 days

0
