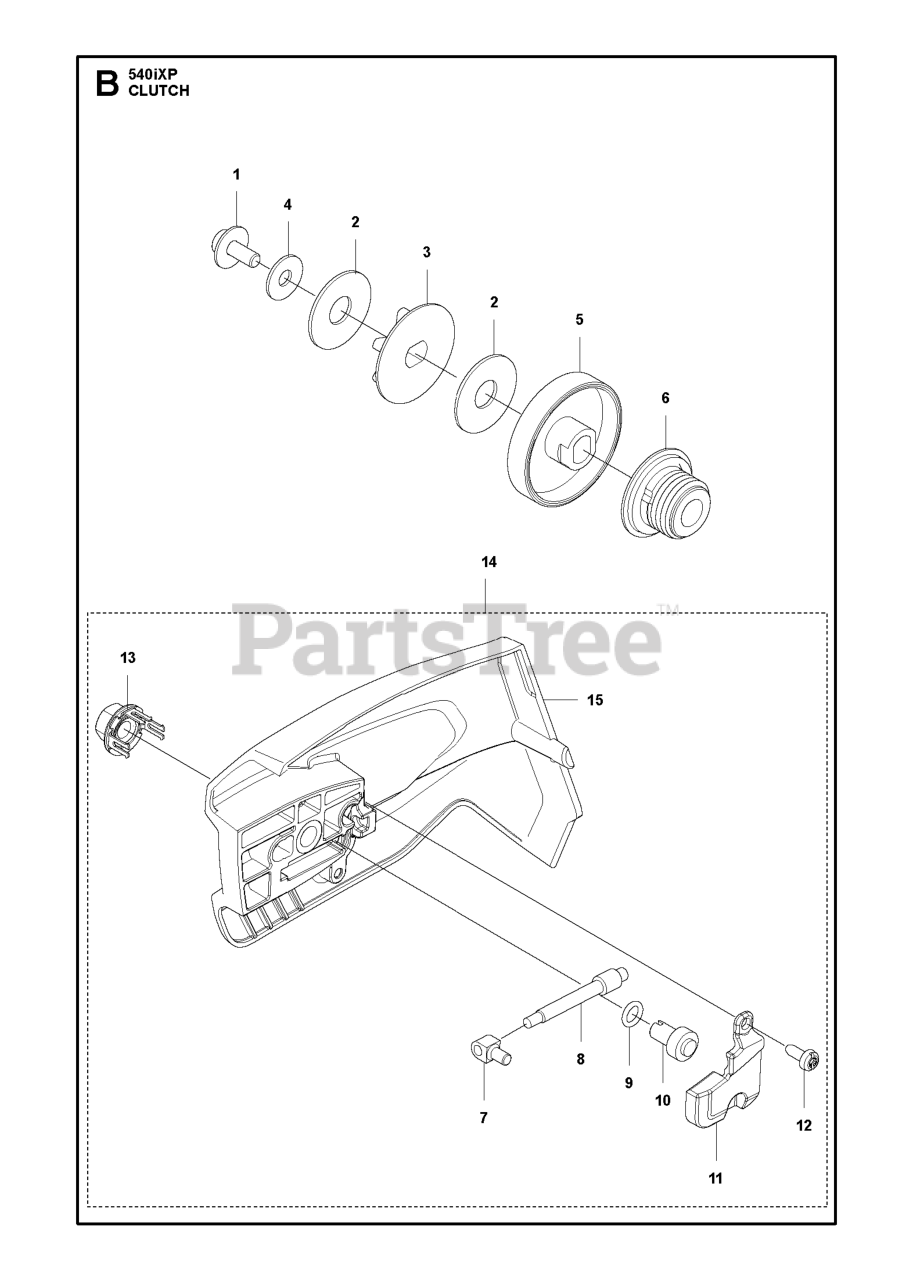

540 iXP - Husqvarna Chainsaw CLUTCH Parts Diagram

Chainsaw

CLUTCH Parts Diagram

  • Title

3

Husqvarna 594035201

Sprockets

Note: .325"mini - 7T

$14.99

$

Usually ships in 3-10 days

0

6

Husqvarna 593784801

Pumps

Note: Assy

$6.99

$

Usually ships in 3-10 days

0

15

Husqvarna 594030202

CLUTCH COVER 540I XP

$26.99

$

Usually ships in 3-10 days

0

12

Husqvarna 526221801

SCREW

$3.49

$

In Stock, only 1 left!

0

9

Husqvarna 740480702

O-RING

$7.49

$

In Stock, only 4 left!

0

14

Husqvarna 594030302

CLUTCH COVER

Note: Assy

$56.99

$

Usually ships in 3-10 days

0

13

Husqvarna 505197301

NUT RETAINER ASSY

Note: Retainer Assy

$7.99

$

In Stock, only 3 left!

0

7

Husqvarna 588850301

PIN BAR ADJUSTING

$5.99

$

In Stock, only 3 left!

0

11

Husqvarna 505214501

COVER LID

Note: Chain Tensioner

$7.49

$

In Stock, only 1 left!

0

2

Husqvarna 597670101

DISC

$6.99

$

In Stock, only 2 left!

0

4

Husqvarna 503230035

WASHER 5.3X15

$7.49

$

In Stock, Qty 14

0

8

Husqvarna 537397001

SCREW

$18.99

$

In Stock, only 3 left!

0

10

Husqvarna 599724101

WORM WHEEL LEFT HAND TEETH

$9.49

$

Usually ships in 3-10 days

0

1

Husqvarna 525755105

SCREW
(Superseded to 575532001)

$5.99

$

In Stock, Qty 12

0

3

Husqvarna 590087701

SPUR SPROCKET 3/8" - 6T

Note: 3/8"mini - 6T

$26.99

$

Usually ships in 3-10 days

0

5

Husqvarna 593684401

Brakes

$9.49

$

Usually ships in 3-10 days

0
