53AB5B8J195 - White Outdoor Zero-Turn Mower Front Caster Assembly Parts Diagram

Zero-Turn Mower

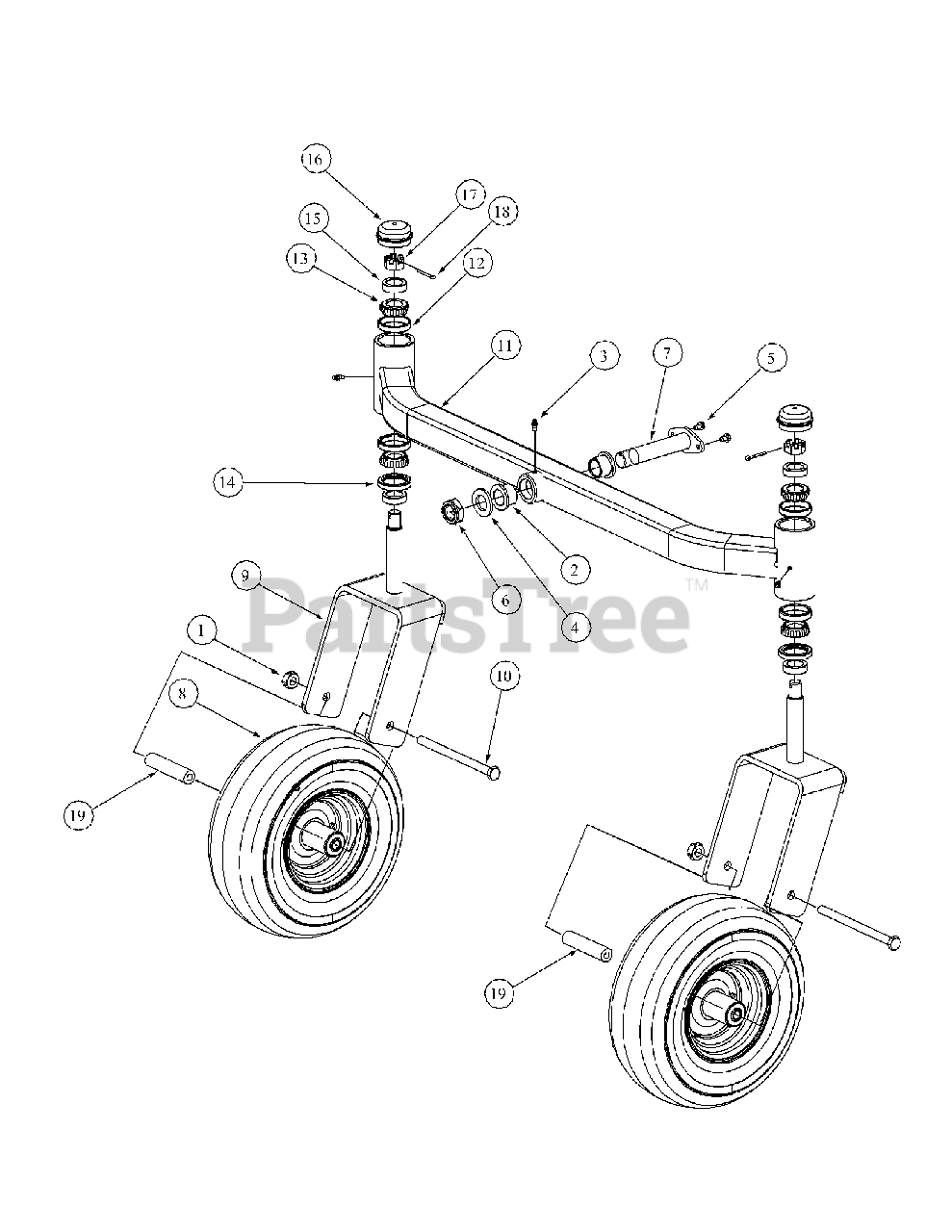

Front Caster Assembly Parts Diagram

  • Title

1

MTD 00023287

Nut, 1/2-20, Center Lock
(Superseded to 712-0239)

$

$

Not available

2

MTD 00023793

Flange Bearing

$15.99

$

In Stock, only 3 left!

0

3

MTD 737-04345

Grease Fitting

$4.99

$

In Stock, Qty 6

0

4

MTD 00023822

Special Washer
(Superseded to 936-0274)

$8.99

$

In Stock, Qty 14

0

5

MTD 710-0599

Screw TT, 1/4-20, .5 Hex Index Washer

$4.49

$

In Stock, Qty 20+

0

6

MTD 01000678

Nut, Jam, 1.0-14, Insert Lock
(Superseded to 712-05008)

$14.99

$

In Stock, only 1 left!

0

7

MTD 01006309

Pin Weldment

$30.99

$

In Stock, only 1 left!

0

8

MTD 01006311

Wheel, 13 x 5-6, White

$281.99

$

Usually ships in 3-6 days

0

8

MTD 02002105

Tire, Smooth, 13x5.00-6, 4-ply

$151.99

$

Usually ships in 3-6 days

0

9

MTD 01001625

Bracket Assembly, Caster Mount

$

$

Not available

10

MTD 01002611

HHCS, 1/2-20, 7.00

$

$

Not available

11

MTD 01001628

Front Axle Assembly

$637.99

$

Usually ships in 3-6 days

0

12

MTD 01002620

Cup Bearing
(Superseded to 741-04548)

$8.99

$

In Stock, Qty 14

0

13

MTD 01002621

Bearing Cone
(Superseded to 741-04549)

$19.99

$

In Stock, Qty 14

0

14

MTD 01002622

Seal
(Superseded to 721-04462)

$10.99

$

In Stock, Qty 10

0

15

MTD 01002624

Ring Seal
(Superseded to 750-05600)

$7.49

$

In Stock, only 1 left!

0

16

MTD 01006347

Grease Cap, 1.986 OD
(Superseded to 703-10384)

$15.99

$

In Stock, only 2 left!

0

17

MTD 712-0359

Slotted Nut, 3/4-16

$11.99

$

In Stock, only 1 left!

0

18

MTD 714-0162

Cotter Pin, 5/32, 1.25

$4.99

$

In Stock, Qty 20+

0

19

MTD 02002153

Wheel Spacer

$14.99

$

In Stock, only 4 left!

0
