539131354 - Dixon Grass Catcher for 42" SpeedZTR Zero-Turn Mowers (2007) GENERAL ASSEMBLY (PART 1) Parts Diagram

Grass Catcher for 42" SpeedZTR Zero-Turn Mowers

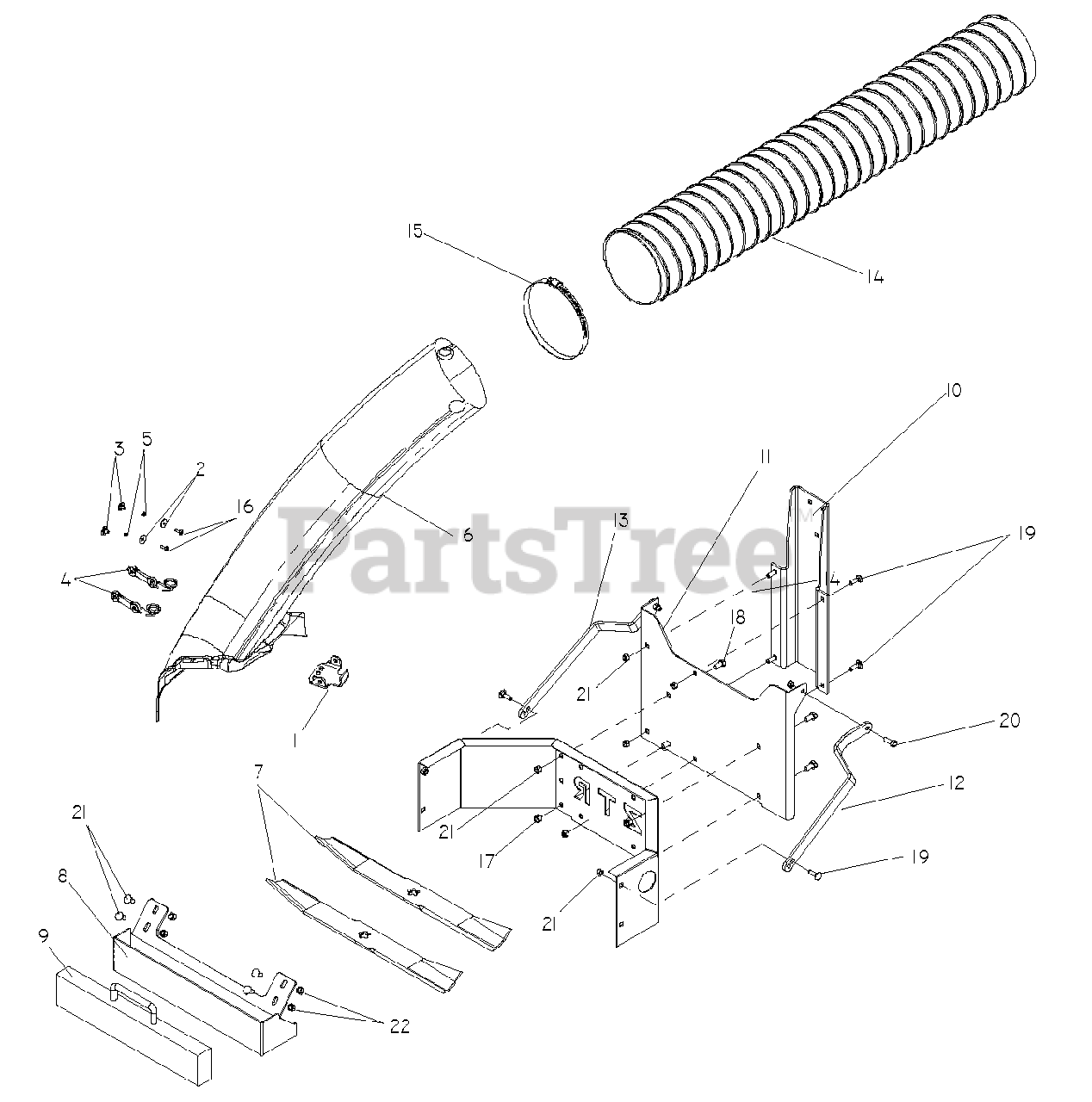

GENERAL ASSEMBLY (PART 1) Parts Diagram

  • Title

1

Dixon 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 8

0

2

Dixon 539108084

WASHER

$4.99

$

In Stock, Qty 15

0

3

Dixon 539108089

NUT 10-24 WELD PLATED
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

4

Dixon 539108194

LATCH ASSY TBR
(Superseded to 597000601)

$6.99

$

In Stock, Qty 12

0

5

Dixon 539109552

WASHER - 3/16 LOCK ZD

$4.99

$

Usually ships in 3-10 days

0

6

Dixon 539111007

LOWER BOOT 42

$157.99

$

Usually ships in 3-10 days

0

7

Dixon 539118038

BLD 42` HI LIFT FUS

$21.99

$

Usually ships in 3-10 days

0

8

Dixon 539131343

WEIGHT KIT BRACKET WLDT

$72.99

$

Usually ships in 3-10 days

0

9

Dixon 539121399

WEIGHT WLDT. RAM

$132.99

$

Usually ships in 3-10 days

0

10

Dixon 539131277

BRACKET, HANGER

$72.99

$

Usually ships in 3-10 days

0

11

Dixon 539131279

SUPPORT - BAGGER

$66.99

$

Usually ships in 3-10 days

0

12

Dixon 539131282

SUPPORT STRAP - L.H.

$24.99

$

Usually ships in 3-10 days

0

13

Dixon 539131284

SUPPORT STRAP - R.H.

$24.99

$

Usually ships in 3-10 days

0

14

Dixon 539131355

HOSE, 6-3/4 I.D. X 44

$109.99

$

Usually ships in 3-10 days

0

15

53997076

$

$

Not available

16

Dixon 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

17

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

18

Dixon 539990134

SCREW 3/8C X 3/4 HEX CAP

$4.99

$

Usually ships in 3-10 days

0

19

Dixon 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

20

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

21

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

22

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0
