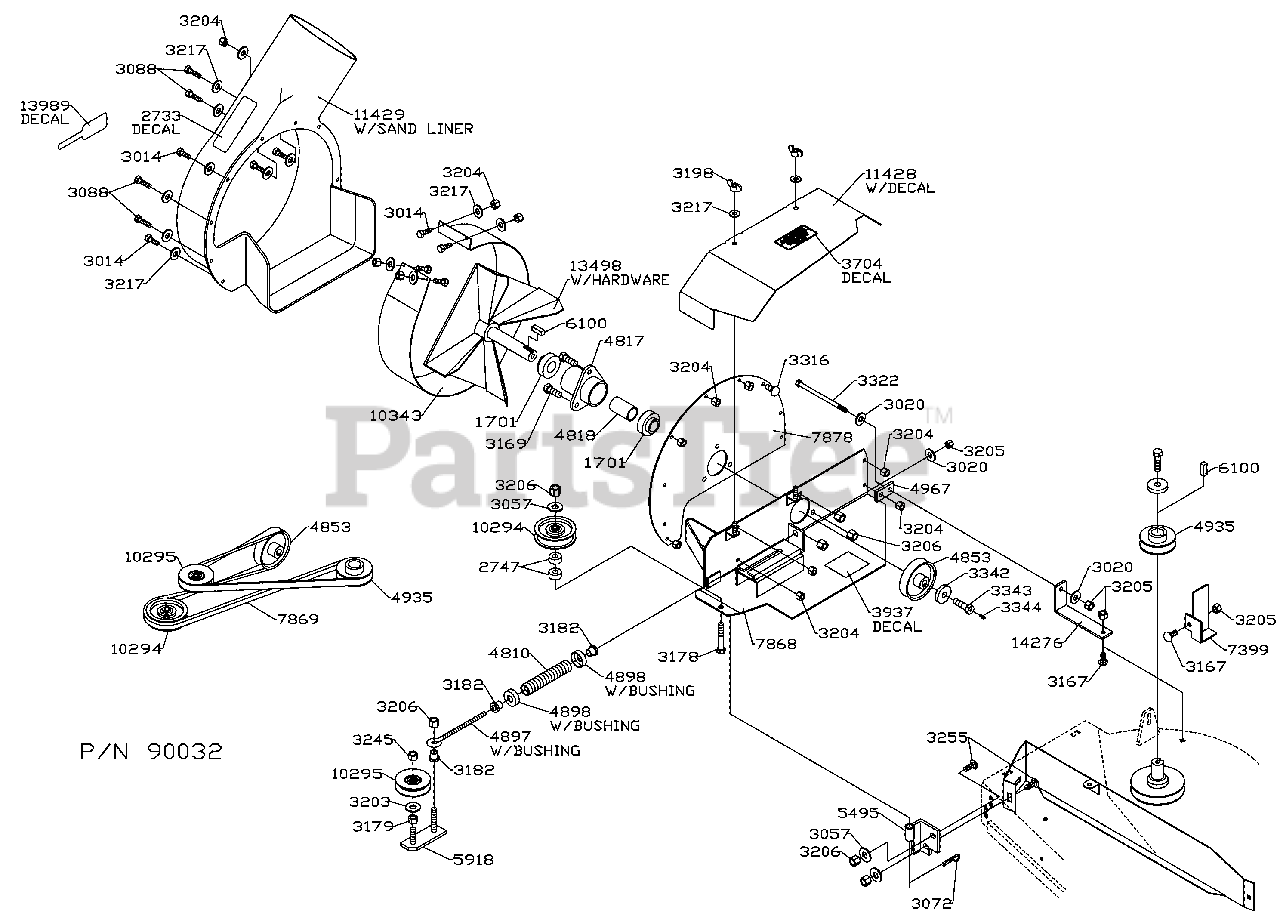

539123044 - Dixon Blower for 36" SpeedZTR Zero-Turn Mowers (2007) GENERAL ASSEMBLY Parts Diagram

Blower for 36" SpeedZTR Zero-Turn Mowers

GENERAL ASSEMBLY Parts Diagram

  • Title

10294

10294

R/B 10294 IDLER FLAT 3`

$

$

Not available

10294

10294

R/B 10294 IDLER FLAT 3`

$

$

Not available

10295

10295

PULLEY, IDLER 3 METAL

$

$

Not available

10295

10295

PULLEY, IDLER 3 METAL

$

$

Not available

10343

10343

SAND LINER

$

$

Not available

11428

11428

$

$

Not available

11429

11429

$

$

Not available

13498

13498

FAN/SHAFT WLDT.

$

$

Not available

13989

13989

DECAL, DIXON

$

$

Not available

14276

14276

ANGLE

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

2733

2733

G.C.WARNING DECAL

$

$

Not available

2747

2747

SPACER 7/8OD X 3/8ID

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3169

3169

R/B HCS 3/8-16 X 1 GR 5 ZD

$

$

Not available

3178

3178

3/8-16X2 1/2 HHBG5

$

$

Not available

3179

Dixon 3179

3/8-16 HEX JAM NUT

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3198

Dixon 3198

1/4-20 WING NUT W/NY

$

$

Not available

3203

3203

3/8 SAE FLAT WASHER

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3217

3217

1/4` SAE FLAT WASHER

$

$

Not available

3217

3217

1/4` SAE FLAT WASHER

$

$

Not available

3217

3217

1/4` SAE FLAT WASHER

$

$

Not available

3217

3217

1/4` SAE FLAT WASHER

$

$

Not available

3245

3245

3/8-16 THIN PROF NY

$

$

Not available

3255

3255

CARR BLT 3/8-16 X 1

$

$

Not available

3316

3316

1/4-20X3/4 CARR BLT

$

$

Not available

3322

3322

5/16-18X5-1/2HHB GR8

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3343

3343

HUB BOLT-DRILLED

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3704

3704

CAUTION DECAL-BLOWER

$

$

Not available

3937

3937

DECAL 50` ROUTING

$

$

Not available

4810

4810

SPRING

$

$

Not available

4817

4817

HUB WLDT-MACHINED

$

$

Not available

4818

4818

SPACER 1 X 2.083

$

$

Not available

4853

4853

PULLEY - 3.5

$

$

Not available

4853

4853

PULLEY - 3.5

$

$

Not available

4897

4897

EYE BOLT ASSEMBLY

$

$

Not available

4898

4898

R/B 4898 SPRING RETAINER-FLAT

$

$

Not available

4898

4898

R/B 4898 SPRING RETAINER-FLAT

$

$

Not available

4935

4935

V PULLEY 4.00(50`)

$

$

Not available

4935

4935

V PULLEY 4.00(50`)

$

$

Not available

4967

4967

ATTACH TAB

$

$

Not available

5495

5495

BLOWER MT. WLDT

$

$

Not available

5918

5918

SLIDE ARM WLDT

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

7399

7399

BLOWER STOP

$

$

Not available

7868

7868

IDLER BASE WLDT

$

$

Not available

7869

7869

BLOWER BELT 36`

$

$

Not available

7878

7878

HOUSING PLATE

$

$

Not available
