539123039 - Dixon Blower for 44" Black Bear Zero-Turn Mowers (2007) 44"BLOWER(BLACKBEAR) Parts Diagram

Blower for 44" Black Bear Zero-Turn Mowers

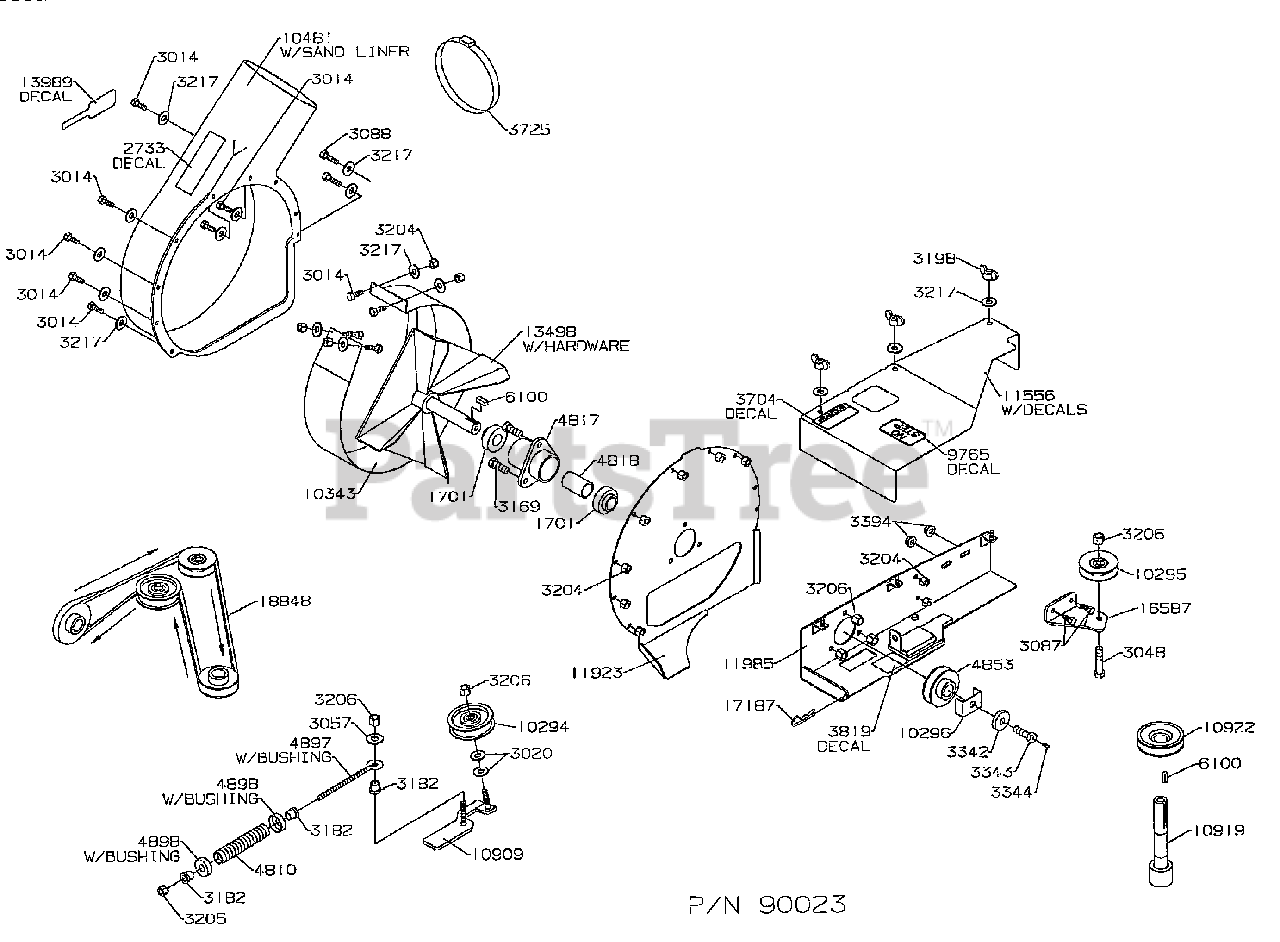

44"BLOWER(BLACKBEAR) Parts Diagram

  • Title

10294

10294

R/B 10294 IDLER FLAT 3`

$

$

Not available

10295

10295

PULLEY, IDLER 3 METAL

$

$

Not available

10296

10296

TARGET

$

$

Not available

10343

10343

SAND LINER

$

$

Not available

10481

10481

HOUSING W/LINER

$

$

Not available

10909

10909

PULLEY SLIDE WLDT.

$

$

Not available

10919

10919

SHAFT SPINDLE

$

$

Not available

10922

10922

V-PULLEY 3.5

$

$

Not available

11556

11556

BLOWER BELT GRD ASM

$

$

Not available

11923

11923

BLOWER PLATE 44`

$

$

Not available

11985

11985

BLOWER MT. WLDT.

$

$

Not available

13498

13498

FAN/SHAFT WLDT.

$

$

Not available

13989

13989

DECAL, DIXON

$

$

Not available

16587

16587

IDLER MT. BRKT.

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

17187

17187

STAINLESS COTTER

$

$

Not available

18848

18848

BELT

$

$

Not available

2733

2733

G.C.WARNING DECAL

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3048

3048

3/8-16UNCX1 1/2HH BLT

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3169

3169

R/B HCS 3/8-16 X 1 GR 5 ZD

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3198

Dixon 3198

1/4-20 WING NUT W/NY

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3217

3217

1/4` SAE FLAT WASHER

$

$

Not available

3217

3217

1/4` SAE FLAT WASHER

$

$

Not available

3217

3217

1/4` SAE FLAT WASHER

$

$

Not available

3217

3217

1/4` SAE FLAT WASHER

$

$

Not available

3217

3217

1/4` SAE FLAT WASHER

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3343

3343

HUB BOLT-DRILLED

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3704

3704

CAUTION DECAL-BLOWER

$

$

Not available

3725

Dixon 3725

HOSE CLAMP

$

$

Not available

3819

3819

DECAL, ROUTING 42"

$

$

Not available

4810

4810

SPRING

$

$

Not available

4817

4817

HUB WLDT-MACHINED

$

$

Not available

4818

4818

SPACER 1 X 2.083

$

$

Not available

4853

4853

PULLEY - 3.5

$

$

Not available

4897

4897

EYE BOLT ASSEMBLY

$

$

Not available

4898

4898

R/B 4898 SPRING RETAINER-FLAT

$

$

Not available

4898

4898

R/B 4898 SPRING RETAINER-FLAT

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

9765

9765

DECAL STEP

$

$

Not available
