539108201 - Husqvarna Maintenance Jack (2003-03) General Assembly Parts Diagram

Maintenance Jack

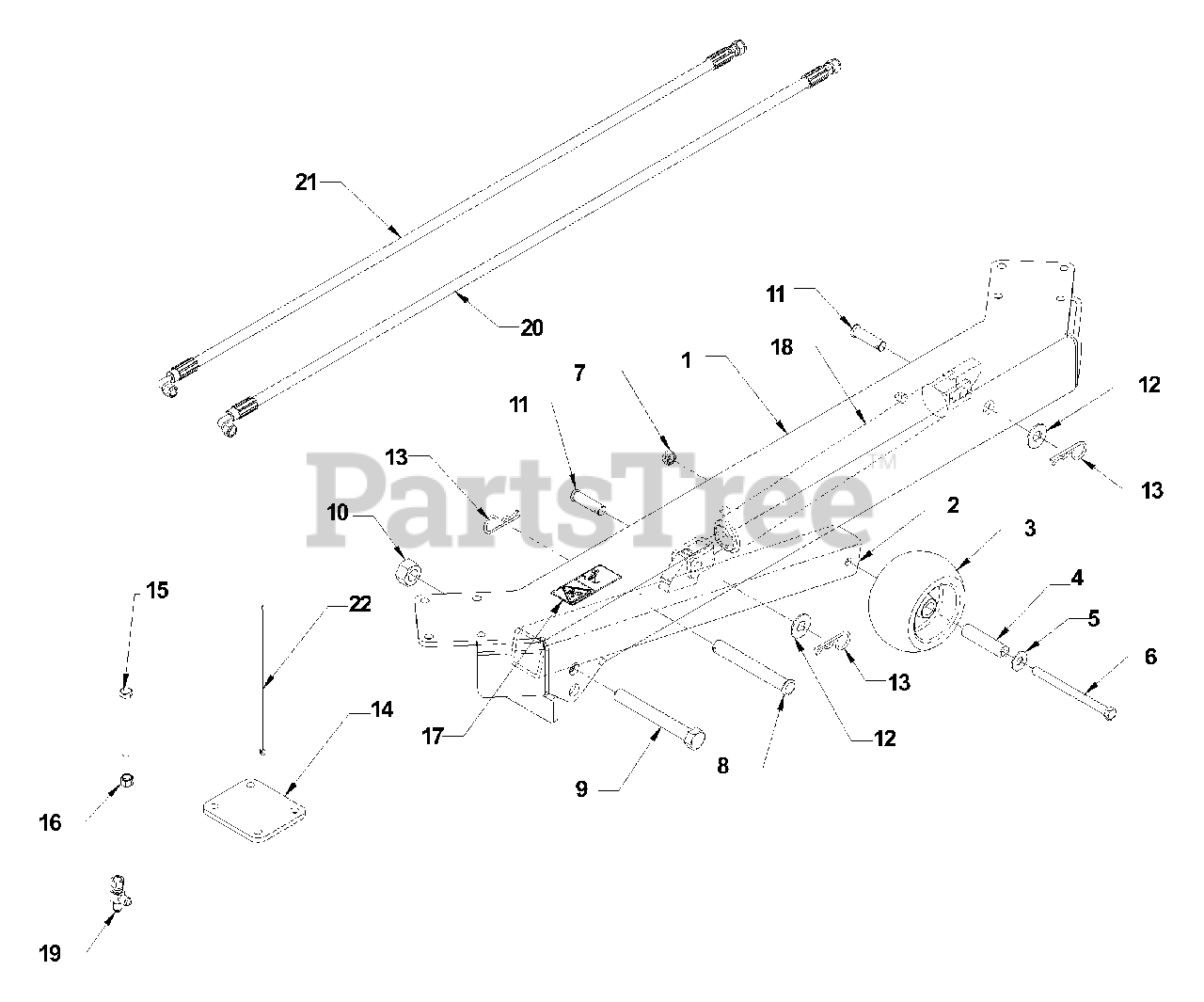

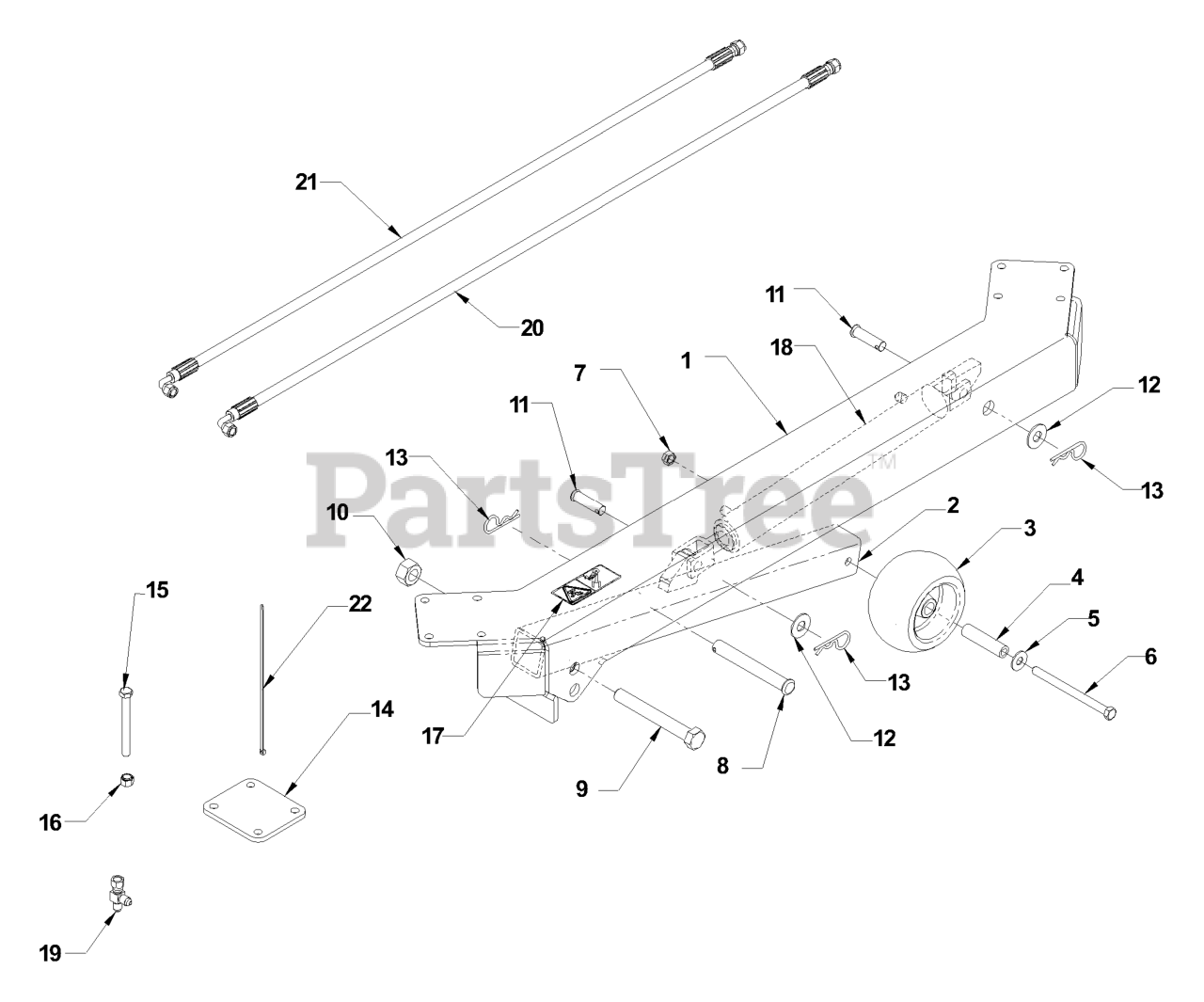

General Assembly Parts Diagram

  • Title

1

Husqvarna 539107143

Cross rail

$218.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539107139

Tilt leg

$

$

Not available

3

Husqvarna 539102643

Anti-scalp roller

$

$

Not available

4

Husqvarna 539102698

Bushing

$

$

Not available

5

Husqvarna 539990517

Washer, 3/8

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539108204

Screw, 3/8-16 x 5, GR 5
(Superseded to 539101517)

$

$

Not available

7

Husqvarna 539990546

Nut, 3/8-16, center lock

$

$

Not available

8

Husqvarna 539107228

Clevis pin, 5/8" x 4 3/4"

$26.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539108203

Screw, 5/8-11 x 5, GR 5

$

$

Not available

10

Husqvarna 539300256

Nut, 5/8-11, nyloc
(Superseded to 539110340)

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539107227

Clevis pin, 1/2" x 1 3/4"

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539990550

Washer, 1/2

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539976989

Hairpin, #4

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539108205

Clamp plate

$84.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539102754

Screw, 3/8-16 x 3 1/2

$4.99

$

In Stock, Qty 13

0

16

Husqvarna 539976979

Nut, 3/8-16, nyloc
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539108245

Decal, cylinder safety

$

$

Not available

18

Husqvarna 539107770

Hydraulic cylinder

$377.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539107872

Hydraulic tee

$14.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539108176

Hydraulic hose, 42"

$26.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539108177

Hydraulic hose, 39 1/2"

$26.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539976856

Wire tie

$5.99

$

Usually ships in 3-10 days

0
